Comparison Instructions Section 5-19

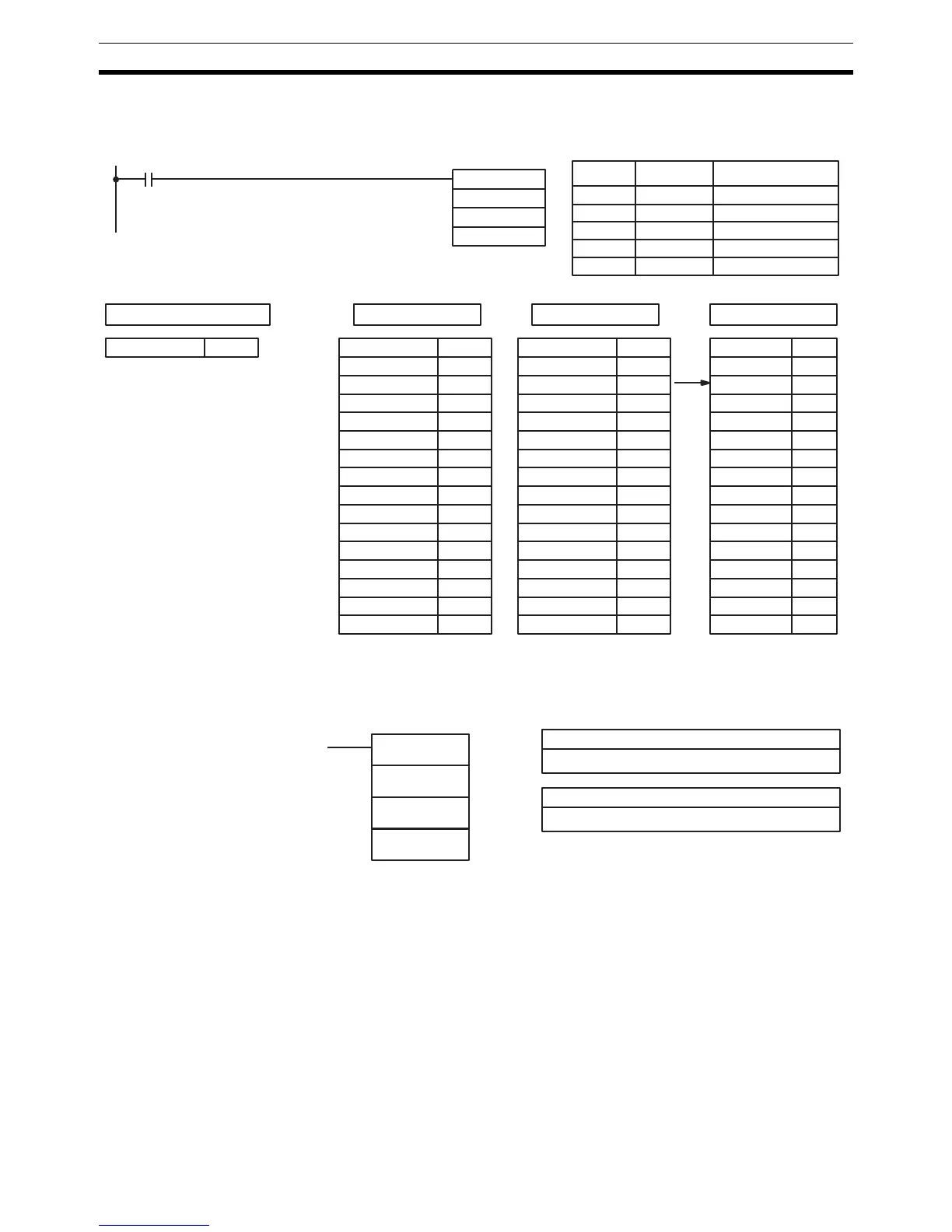

Example The following example shows the comparisons made and the results provided
for BCMP(68). Here, the comparison is made during each cycle when IR
00000 is ON.
5-19-4 DOUBLE COMPARE – CMPL(60)
Limitations Cp1 and Cp1+1 must be in the same data area.
Cp2 and Cp2+1 must be in the same data area.
Set the third operand to 000.
Description When the execution condition is OFF, CMPL(60) is not executed. When the
execution condition is ON, CMPL(60) joins the 4-digit hexadecimal content of
Cp1+1 with that of Cp1, and that of Cp2+1 with that of Cp2 to create two 8-
digit hexadecimal numbers, Cp+1,Cp1 and Cp2+1,Cp2. The two 8-digit num-
bers are then compared and the result is output to the GR, EQ, and LE flags
in the SR area.
Precautions Placing other instructions between CMPL(60) and the operation which
accesses the EQ, LE, and GR flags may change the status of these flags. Be
sure to access them before the desired status is changed.
R:LR 05
001 0210 DM 0010 0000 DM 0011 0100 LR 0500 0
DM 0012 0101 DM 0013 0200 LR 0501 0
DM 0014 0201 DM 0015 0300 LR 0502 1
DM 0016 0301 DM 0017 0400 LR 0503 0
DM 0018 0401 DM 0019 0500 LR 0504 0
DM 0020 0501 DM 0021 0600 LR 0505 0
DM 0022 0601 DM 0023 0700 LR 0506 0
DM 0024 0701 DM 0025 0800 LR 0507 0
DM 0026 0801 DM 0027 0900 LR 0508 0
DM 0028 0901 DM 0029 1000 LR 0509 0
DM 0030 1001 DM 0031 1100 LR 0510 0
DM 0032 1101 DM 0033 1200 LR 0511 0
DM 0034 1201 DM 0035 1300 LR 0512 0
DM 0036 1301 DM 0037 1400 LR 0513 0
DM 0038 1401 DM 0039 1500 LR 0514 0
DM 0040 1501 DM 0041 1600 LR 0515 0
BCMP(68)
001
DM 0010
LR 05
00000
Compare data in IR 001
(which contains 0210) with
the given ranges.
Address Instruction Operands
00000 LD 00000
00001 BCMP(68)
001
DM 0010
LR 05
CD 001
Lower limits
Upper limits
Cp2: First word of second compare word pair
IR, SR, AR, DM, EM, HR, TIM/CNT, LR
Cp1: First word of first compare word pair
IR, SR, AR, DM, EM, HR, TIM/CNT, LR
Ladder Symbols Operand Data Areas
CMPL(60)
Cp1
Cp2
−−
