Omron CQM1H - PROGRAM User Manual

241
Timer and Counter Instructions Section 5-16

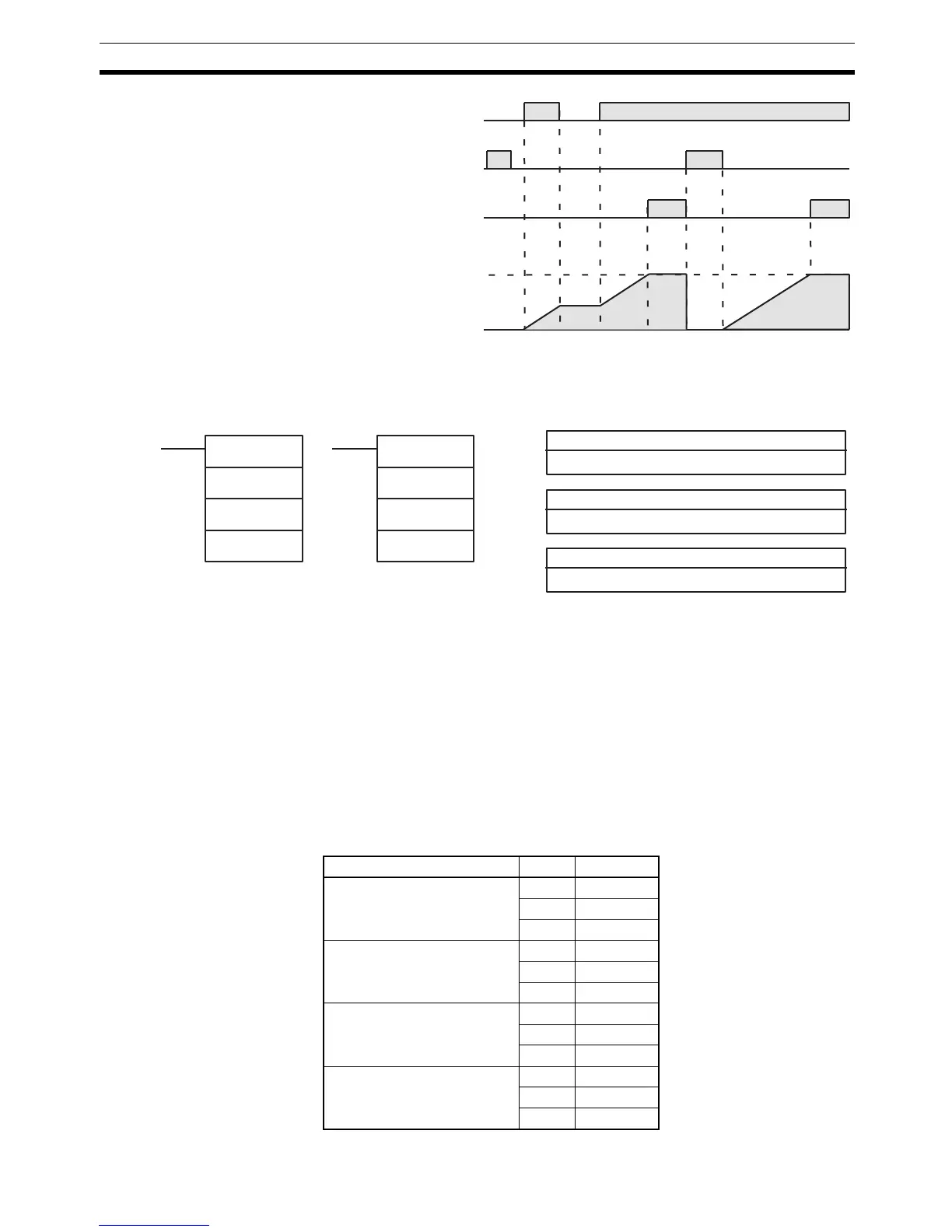

5-16-6 INTERVAL TIMER – STIM(69)
Limitations C1 must be 000 to 008 or 010 to 012.
If C1 is 000 to 005, a constant greater than 0255 cannot be used for C3.
If C1 is 006 to 008, constants and DM 6143 to DM 6655 cannot be used for
C2 or C3. If C1 is 010 to 012, both C2 and C3 must be set to 000.
Description STIM(69) is used to control the interval timers by performing four basic func-
tions: starting the timer for a non-shot interrupt, starting the timer for sched-
uled interrupts, stopping the timer, and reading the timer’s PV. Set the value of
C1 to specify which of these functions will be performed and which of the
three interval timers it will be performed on, as shown in the following table.
Refer to 1-4-5 Interval Timer Interrupts for more detailed descriptions of using
interval timer interrupts. STIM(69) is also described in more detail after the
table.
Timer input
(I: IR 00000)
Reset bit
(RB: IR 20000)
Completion Flag
(TIM 000)
Present value: 0100
0000
C1: Control data #1
000 to 008, 010 to 012
Ladder Symbols Operand Data Areas
@STIM(69)
C1
C2
C3
C3: Control data #3
IR, SR, AR, DM, EM, HR, TIM/CNT, LR, #
C2: Control data #2
IR, SR, AR, DM, EM, HR, TIM/CNT, LR, #
STIM(69)
C1
C2
C3
Function Timer C1 value
Starting timers 0 000
1001
2002
Starting scheduled interrupts 0 003
1004
2005
Reading timer PV 0 006
1007
2008
Stopping timers 0 010
1011
2012
