PART 3: CX-Server Runtime
OMRON CHAPTER 3 – Communications
Revision 2.0 CX-Server Runtime_Page 23

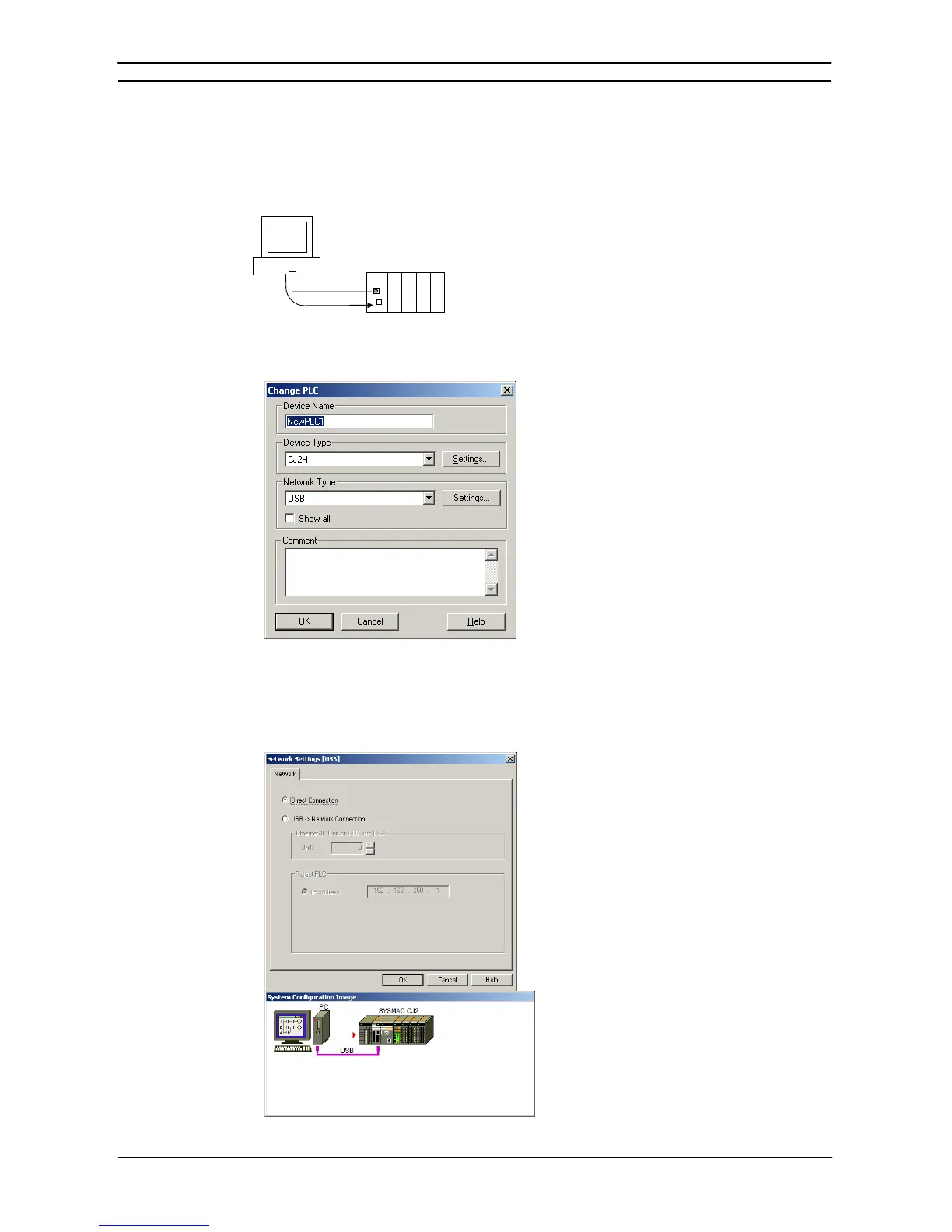

Connecting Directly to a CJ2 CPU Unit Using a USB Cable
Connecting the CX-Programmer to a CJ2 CPU Unit using a USB Cable makes it possible to
perform communications faster than when using the conventional Toolbus connection.
CX-Programmer
CJ2
USB
Perform the following procedure to make the communications settings.
1. The Change PLC Dialog Box will appear when you create a new project.
2. Select CJ2H in the Device Type Field.
3. Select USB in the Network Type Field. (USB is the default connection method.)
4. Click the Settings Button next to the Network Type Field. The following Network Settings
[USB] Dialog Box and System Configuration Image will be displayed.
Select the Direct Connection Option on the Network Tab Page, and click the OK Button.
To Next Page
