Communication protocols
PROGRAMMING MANUAL 175
Revision 3.0
Configure the DeviceNet network
To configure the OMRON CJ1W/CS1W-DRM21 DeviceNet master
to exchange VR variables with the Trajexia system, do these steps:

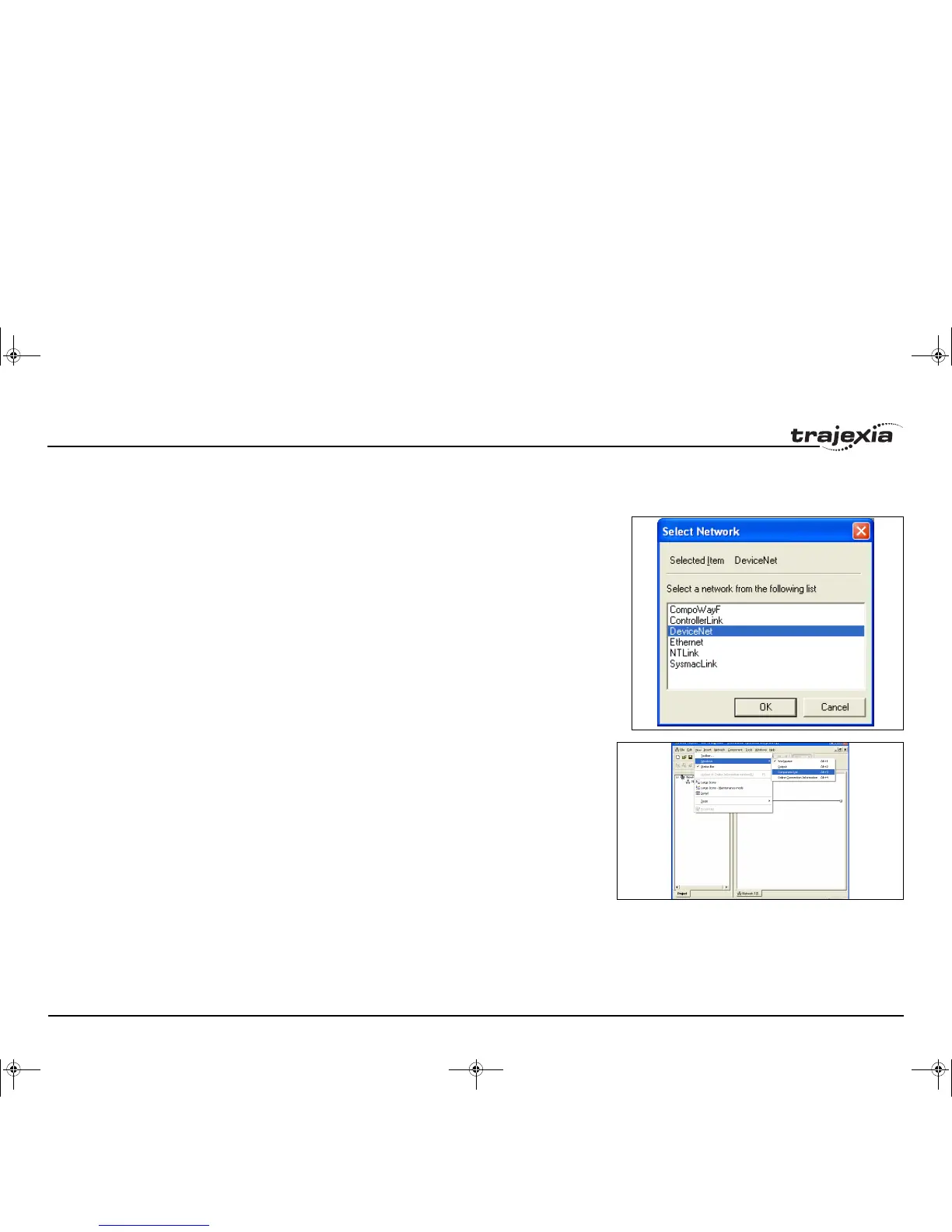

fig. 14
1. Start the CX-Integrater in the CX-ONE software tool.
2. Select Network from the Insert menu.
3. Select DeviceNet from the Select Network screen. The Network
view shows.
fig. 15
4. Select CJ1W-DRM21 from the OMRON Communication
adapter list.
I52E-EN-03.book Seite 175 Freitag, 29. Juni 2007 11:55 11
