Trajexia Tools interface
PROGRAMMING MANUAL 186
Revision 3.0
5.2.3 Connection to the TJ1-MC__
fig. 11
You need a patch or crossover Ethernet cable to connect the PC to
the TJ1-MC__.
1. Connect the Trajexia system to the mains power supply.
2. If you need to see the IP address and the subnet mask of the
TJ1-MC__ again, set the power of the Trajexia system off and
then again on.
3. Connect the Ethernet cable to the Ethernet port of the PC.

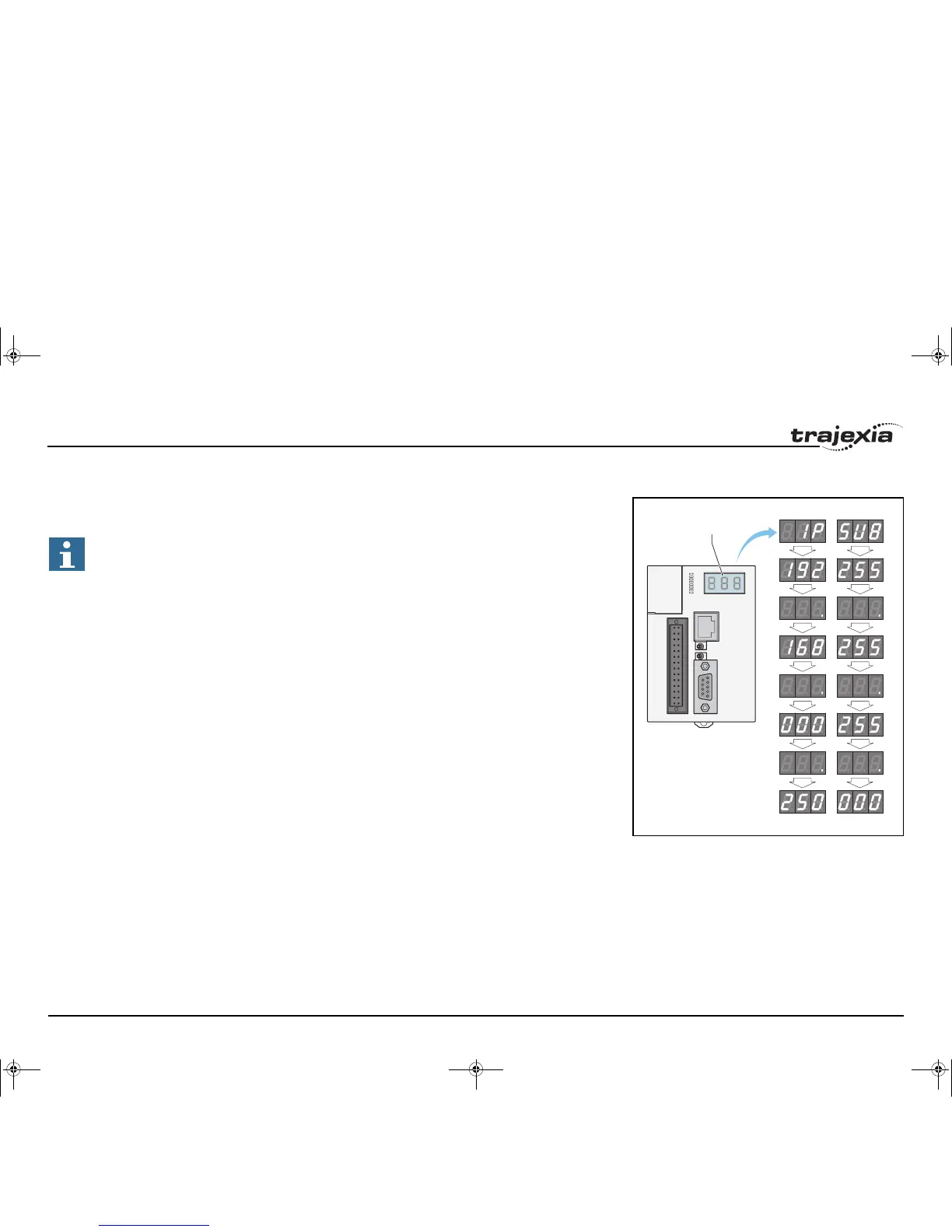

4. Connect the Ethernet cable to the Ethernet port of the TJ1-
MC__. The IP address of the TJ1-MC__ shows 4 times in the
LED display.
5. When you start Trajexia tools software, it tries to communicate
with the controller. When you start Trajexia Tools for the first
time the communication settings are not the suitable ones so
you have to cancel (see fig. 12) and set your communication
settings.
A
Note
If you work off line the simulator can be used. Simula-
tion allows the Trajexia tools to connect to a virtual
controller. This is the way to program offline. The "Sim-
ulator" does not recognise all the specific commands
for the TJ1-MC__.
