Trajexia Tools interface
PROGRAMMING MANUAL 220
Revision 3.0
Analog inputs
Monitors the value present in the remote analogue inputs module.
The inputs are automatically added to the system starting from
AIN0 when one or more AN2900 module is detected.
Terminal

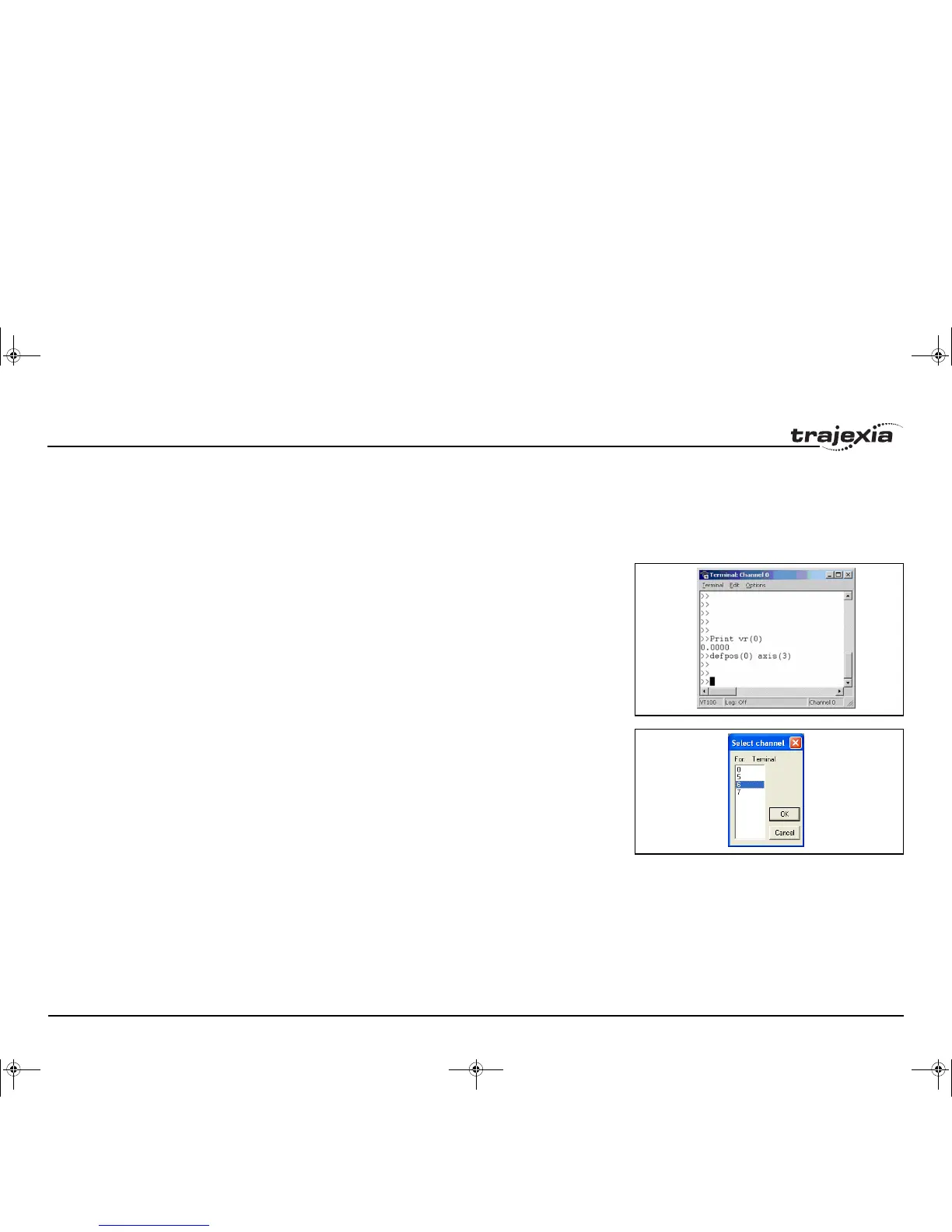

fig. 43
The terminal window is a text editor that gives a direct connection
to the Trajexia system. Most of the functions that must be
performed during the installation, programming and commissioning
of a system with a Trajexia have been automated by the options
available in the Trajexia Tools menu options. However, if direct
communication is required the terminal window may be used.
fig. 44
Select channel. When Trajexia Tools is connected to the controller
the terminal tool will show a dialog to select the communications
channel.
Channel 0 is used for the Trajexia command line and channels 5, 6
and 7 are used for communication with programs running on the
Trajexia.
Select the required channel and press OK to start a terminal tool on
the selected channel. Only one terminal tool (or keypad tool) can be
connected to a channel at one time.
