Examples and tips
PROGRAMMING MANUAL 256
Revision 3.0
WA(1)
WAIT IDLE
ENDIF

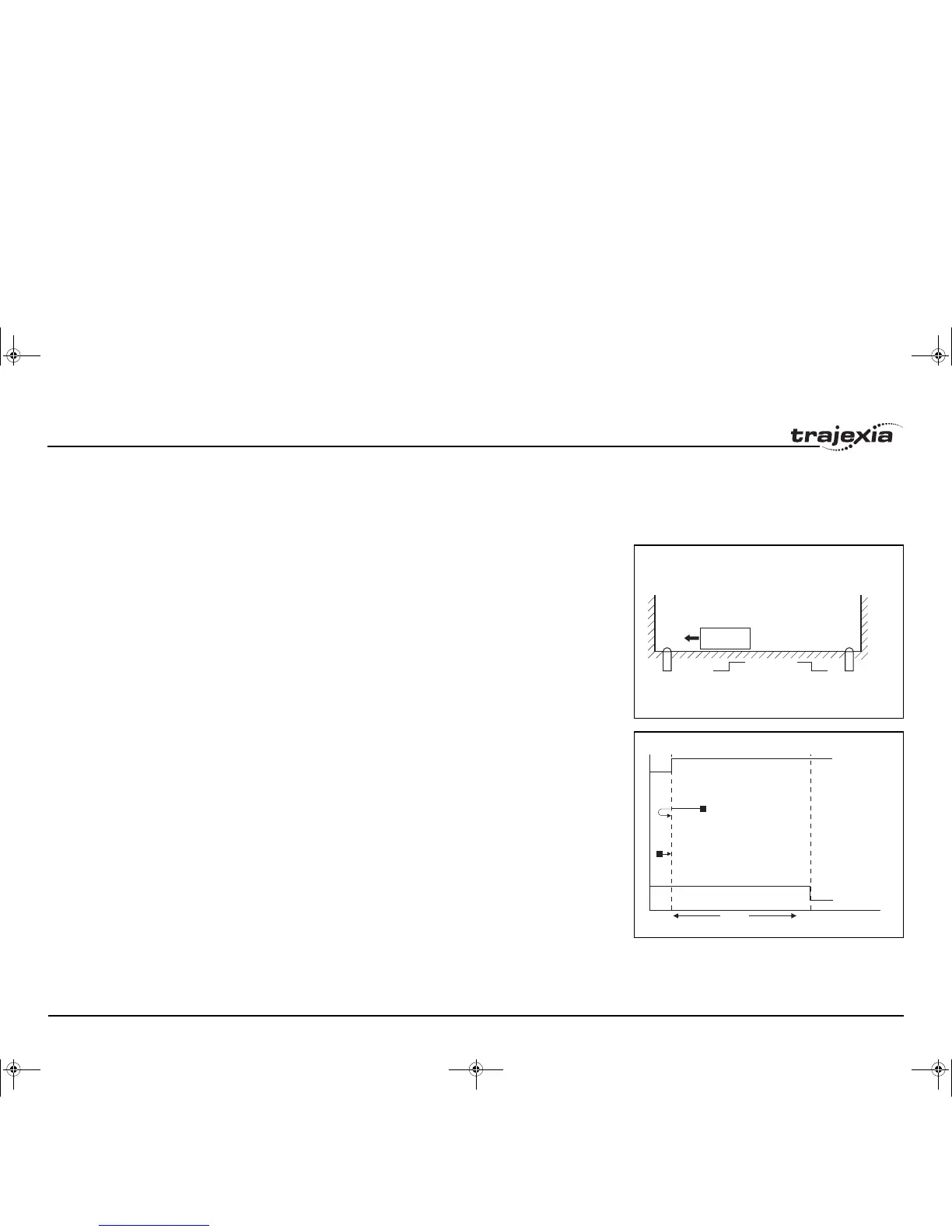

Origin search against limit switches
fig. 28
This origin search function is performed by searching for an
external sensor using limit switches only. The example for this
homing procedure is shown in the figure.
fig. 29
The possible scenarios for origin search against limit switches,
depending on the position of the moving part on power on, are
shown in the figure.
The program example that does this origin search sequence is
given below.
'Origin and left limit switch: IN0
'Right limit switch: IN1
BASE(0)
DATUM_IN=0
SERVO=ON
WDOG=ON
DATUM(4)
WA(1)
WAIT IDLE
ON OFF ONOFF
min. limit switch
moving part
max. limit switch
FORWARDREVERSE
min limit switch
max limit switch
