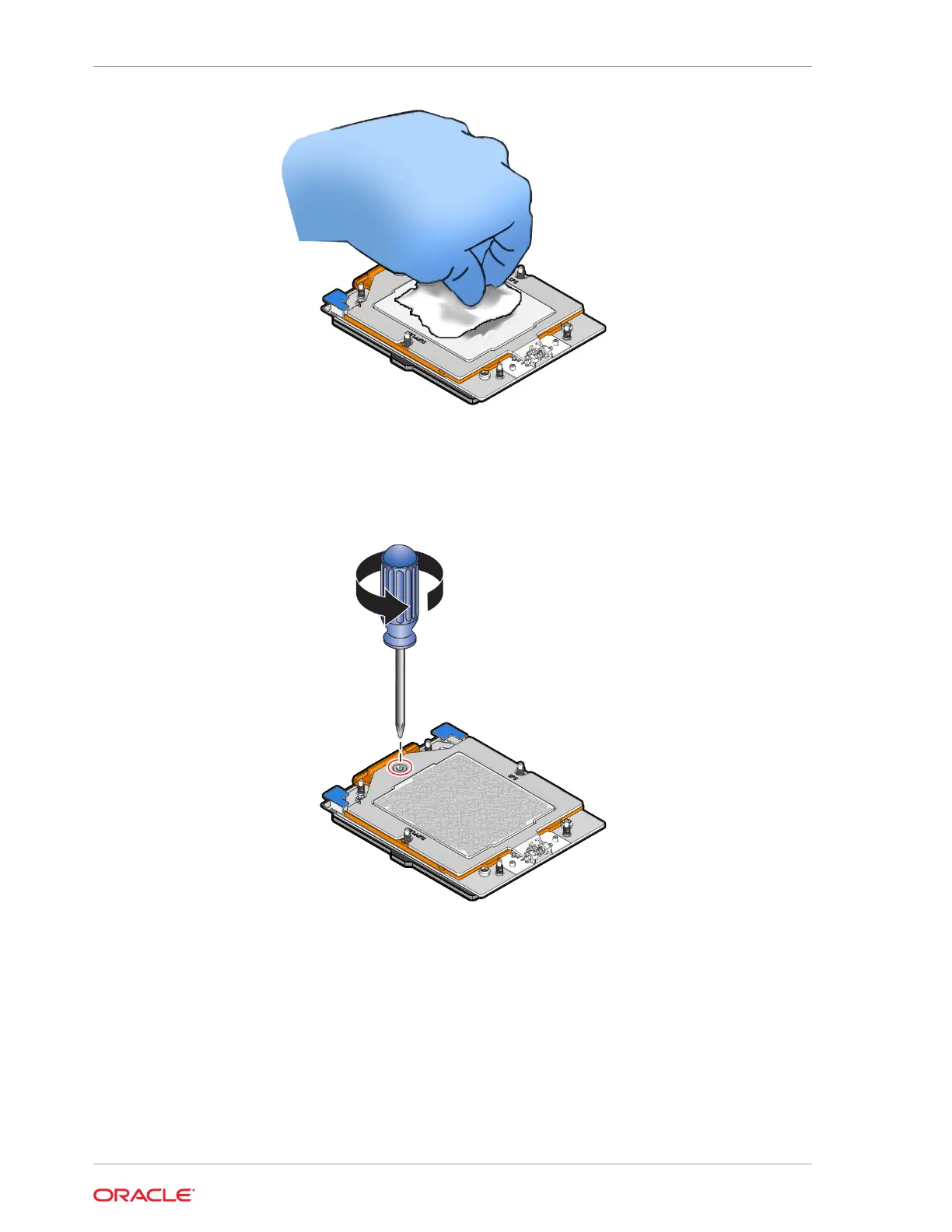

8. Unscrew the socket Force Frame.
Using a Torx T20 screwdriver, loosen the captive Force Frame Retention Screw
that secures the Force Frame to the socket.
9. Lift the Force Frame to the open position.
Apply counter-pressure to the Force Frame when opening.
Chapter 5
Servicing Processors (FRU)
5-8
