10. Open the Rail Frame.

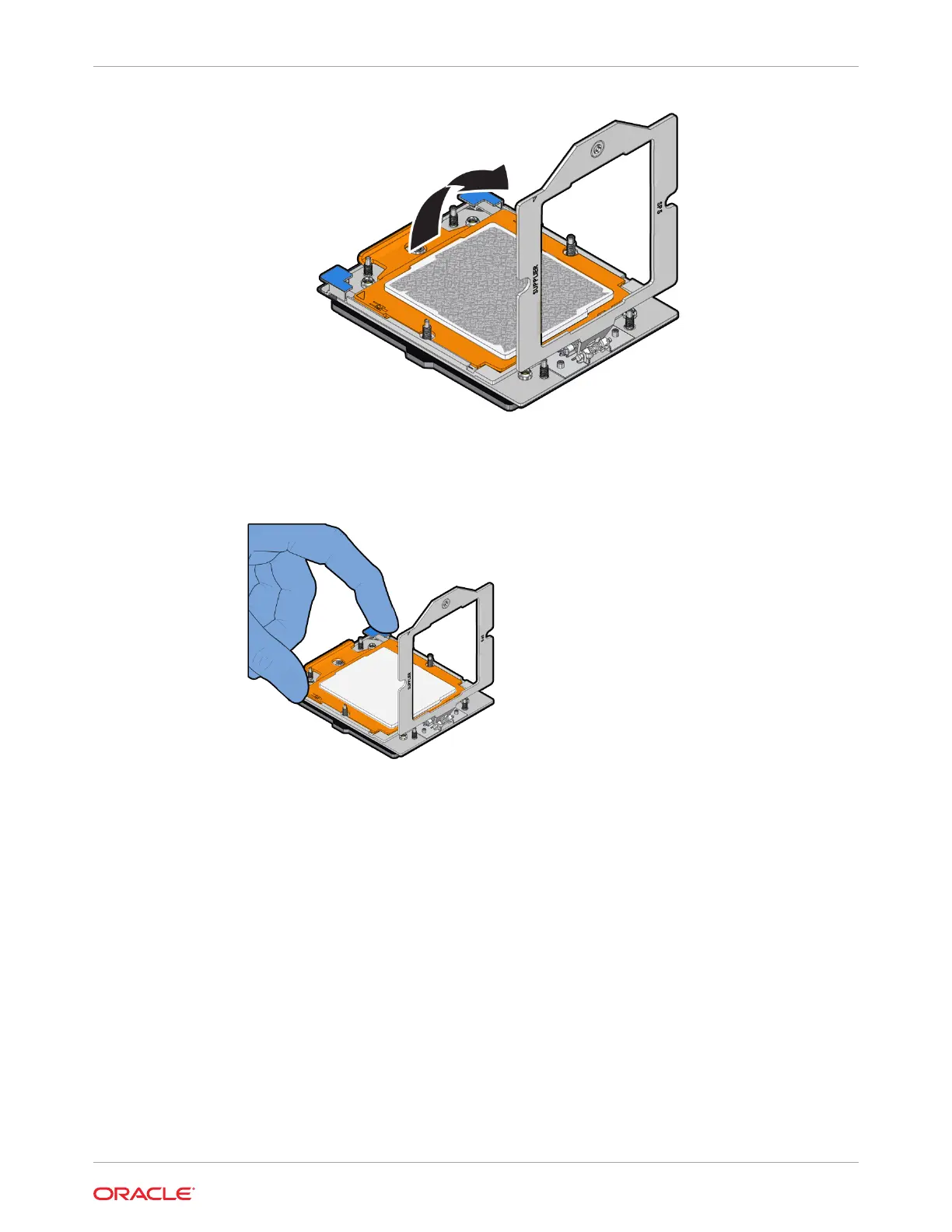

Squeeze the blue tabs to release the Rail Frame.

11. Lift the Rail Frame and slide out the carrier frame package.

Lift the Rail Frame by holding its lift tabs and rotating the Rail Frame to its near vertical

position.

Chapter 5

Servicing Processors (FRU)

5-9
