VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
58 02.9687.0010 0
Step 6. As shown in Figure 2-41, slide Stabilizer from mount.

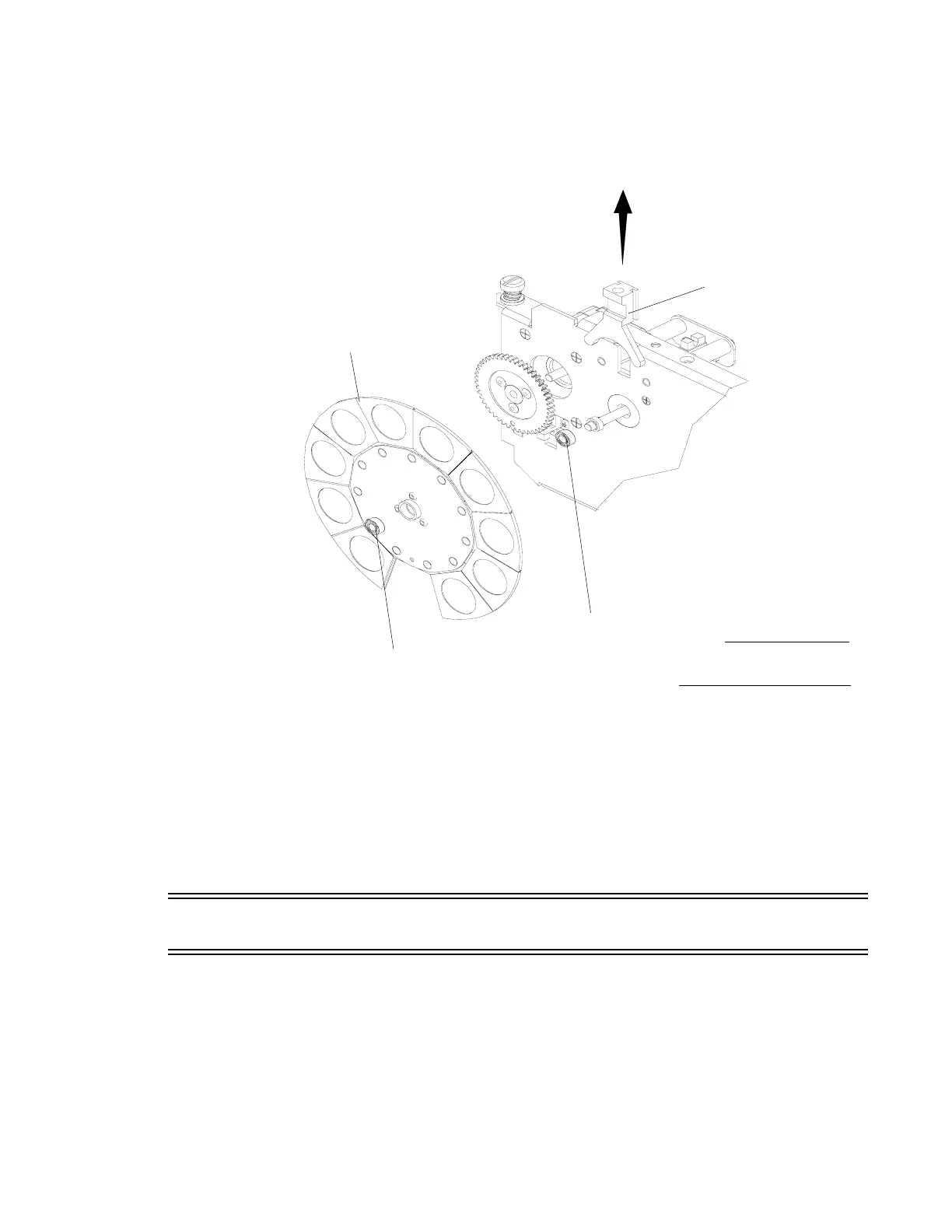

Figure 2-41: Fixed Gobo Wheel
Step 7. Carefully lift wheel off shaft. Note bearings may come loose (refer to Figure 2-41 for
bearing locations).
Step 8. When installing, align fixed gobo outdrive so tab is in sensor.
Step 9. Align wheel so open spot is aligned with gate.
Step 10. Slide on to shaft.
Step 11. Continue reassembly by following steps in reverse order.
IMPORTANT! When replacing Fixed Gobo Motor, ensure the Fixed Gobo Outdrive is installed with
set screw to flat part of motor shaft when tab is in optical sensor.
Fixed Gobo Wheel
NOTE:
Components removed and
exploded for clarity.
Stabilizer
Bearing
Bearing
