Step 5. As indicated in Figure 2-47, remove fan assembly by removing two 6-32 x 1/4" PPZ SEMS
screws.

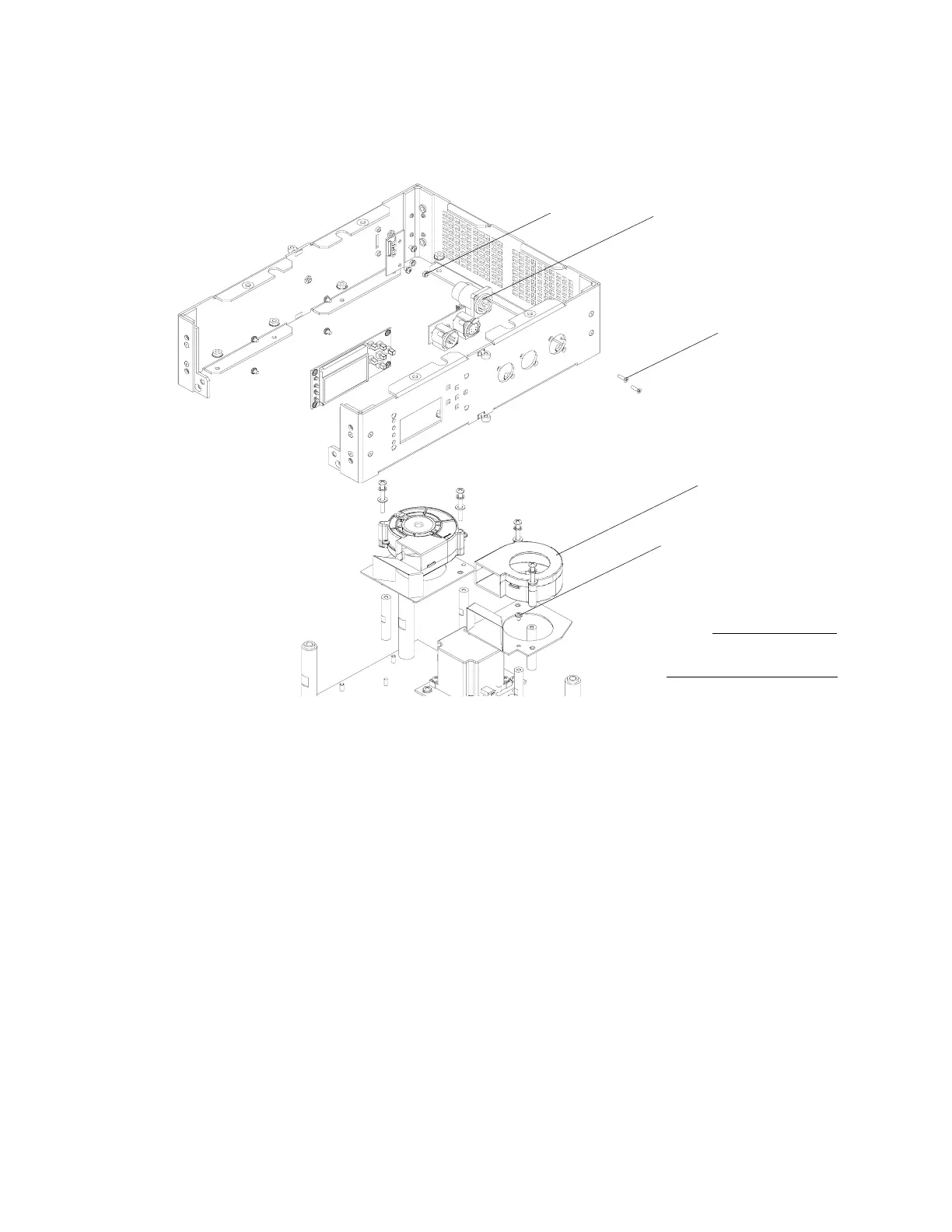

Figure 2-47: PowerCon (AC Input) Assembly Removal
Step 6. Disconnect wiring from PowerCon (AC Input ) assembly.
Step 7. At front panel, remove two 4-40 x 3/8" PFB screws and nuts and remove PowerCon (AC
Input) assembly.
Step 8. Reassemble by performing steps in reverse order.
NOTE:
Components removed and
exploded for clarity.
Fan Assembly
6-32 x 1/4" PPZ
SEMS Screw (x2)
4-40 x 3/8" PFB
Screw (x2)
#4 Nuts (x2)
PowerCon (AC Input) Assembly
