Step 6. As shown in Figure 2-49, remove four 6-32 x 3/16" PPZ screws and remove Display PCB
assembly.

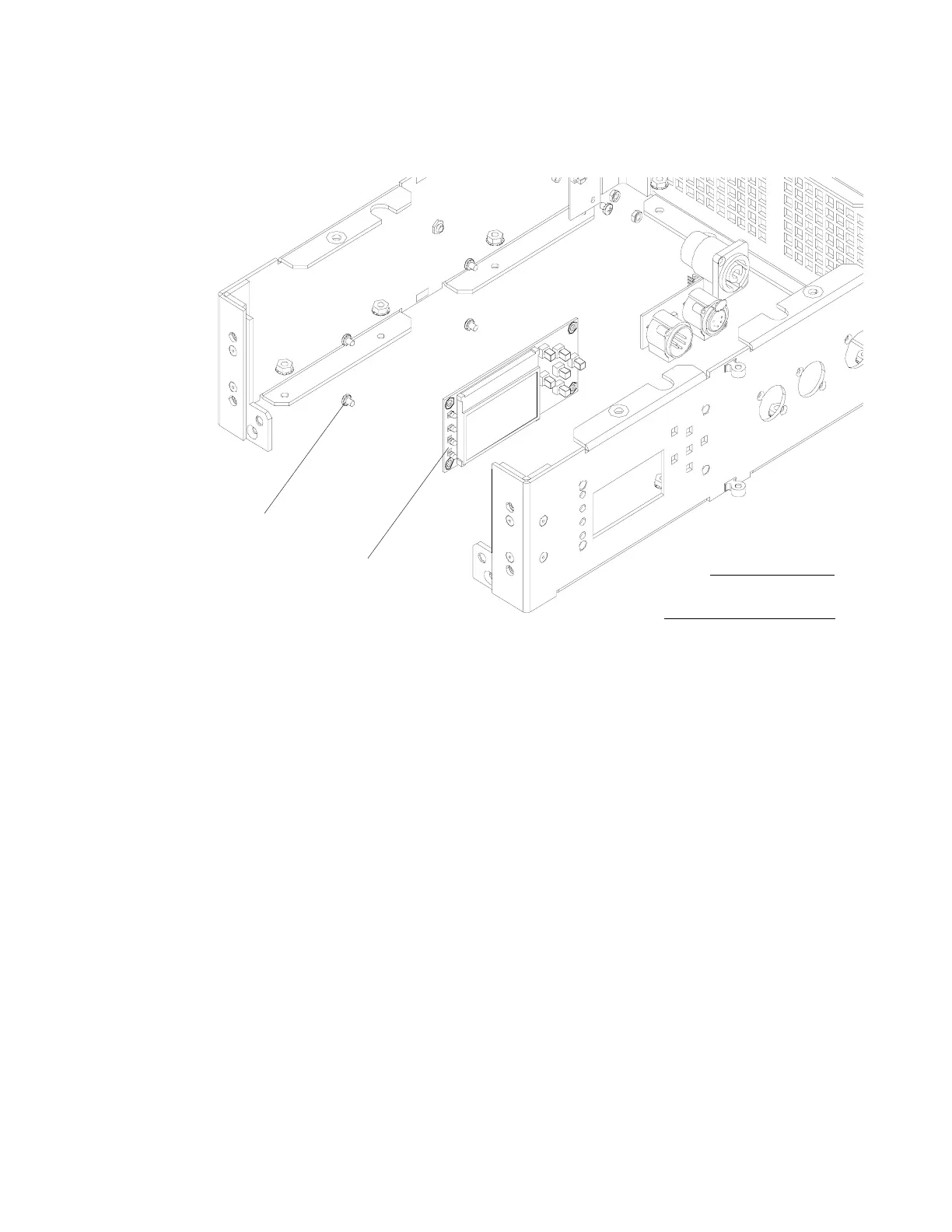

Figure 2-49: Display PCB Assembly Removal
Step 7. Reassemble by performing steps in reverse order.
NOTE:
Components removed and
exploded for clarity.
Display PCB
Assembly
6-32 x 3/16"
PPZ Screw (x4)
