VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
68 02.9687.0010 0
Step 6. As shown in Figure 2-49, remove two 6-32 x 3/16" PPZ screws and remove wireless DMX
interface PCB assembly.

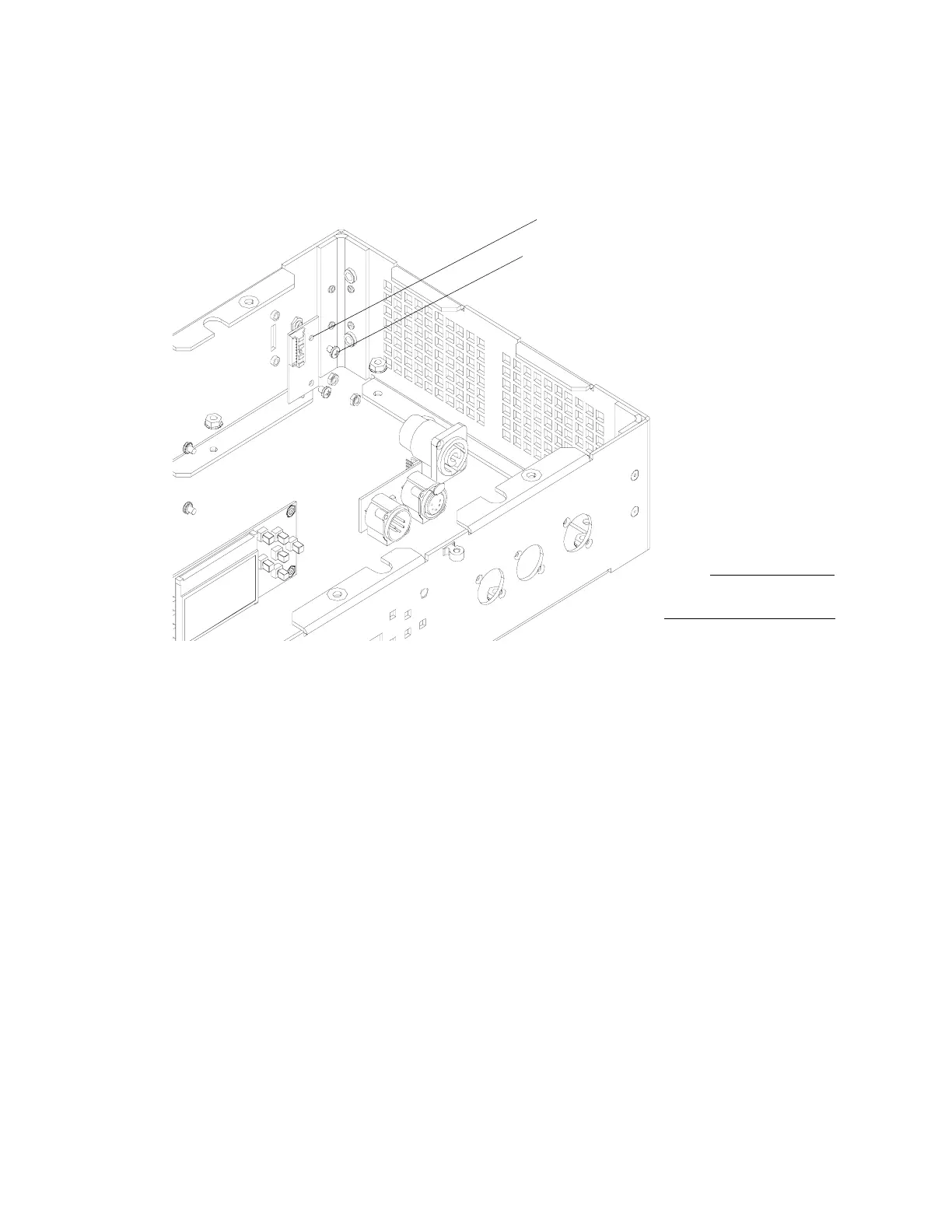

Figure 2-51: Wireless DMX Interface PCB Assembly Removal
Step 7. Reassemble by performing steps in reverse order.
NOTE:
Components removed and
exploded for clarity.
Wireless DMX PCB Assembly
6-32 x 3/16" PPZ Screw (x2)
To Next Page
