VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
70 02.9687.0010 0
Step 5. As indicated in Figure 2-53, remove both fan assemblies by removing two 6-32 x 1/4" PPZ
SEMS screws (per fan assembly).

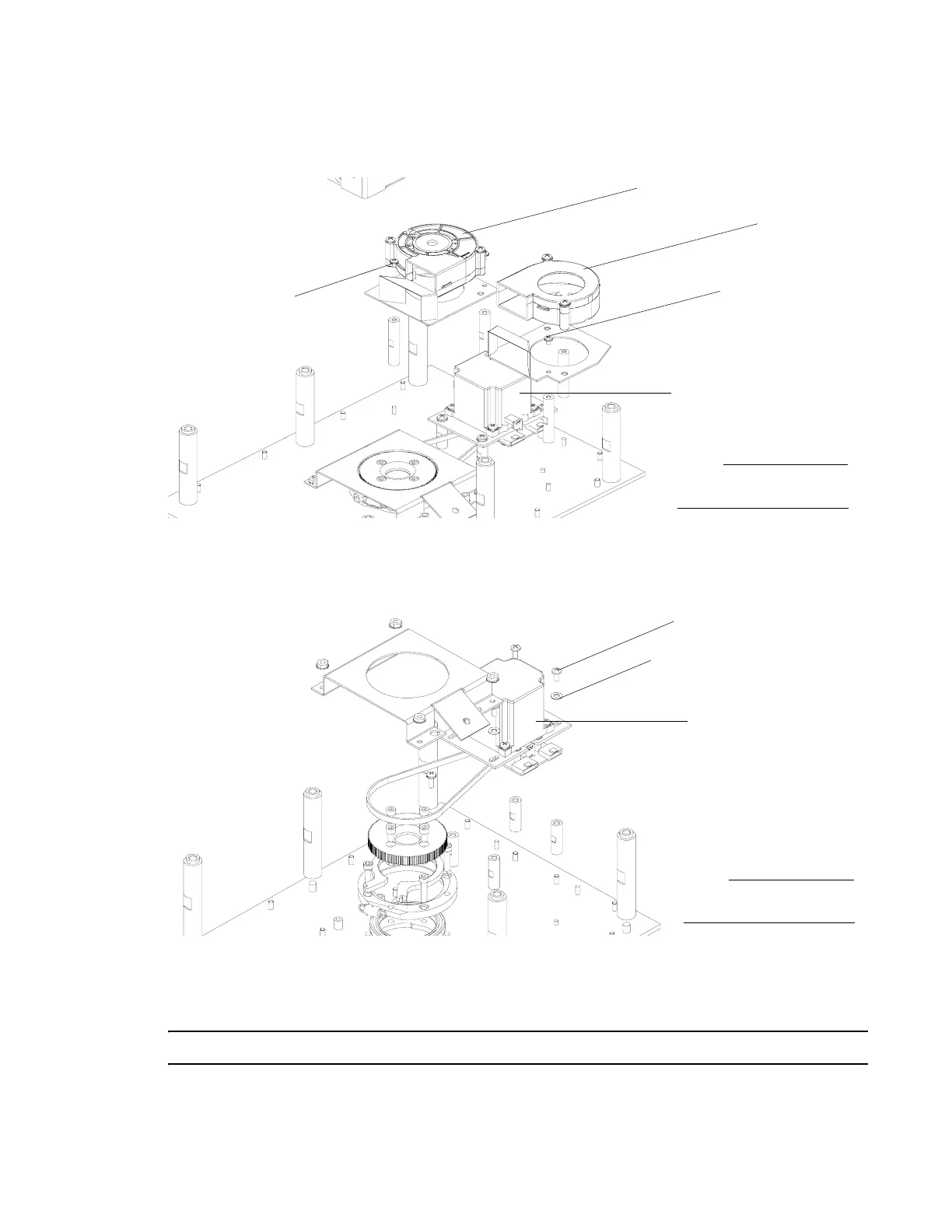

Figure 2-53: Enclosure Fan Assemblies Removal
Step 6. Disconnect wiring from motor and encoder assemblies.
Step 7. Remove four 8-32 x 1/4" PPB SEMS screws and their flat washers.
Figure 2-54: Pan Motor Assembly Removal
Step 8. Remove pan motor assembly
Step 9. Reassemble by performing steps in reverse order.
Note: Ensure proper belt tension when replacing.
NOTE:
Components removed and
exploded for clarity.
Fan Assembly
6-32 x 1/4" PPZ
SEMS Screw (x2)
Fan Assembly
6-32 x 1/4" PPZ
SEMS Screw (x2)
Pan Motor Assembly
8-32 x 1/4" PPB
SEMS Screw (x4)
Pan Motor Assembly
#8 Flat Washer (x4)
NOTE:
Components removed and
exploded for clarity.
