VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
76 02.9687.0010 0
Step 5. As indicated in Figure 2-47, remove both fan assemblies by removing two 6-32 x 1/4" PPZ
SEMS screws for each assembly.

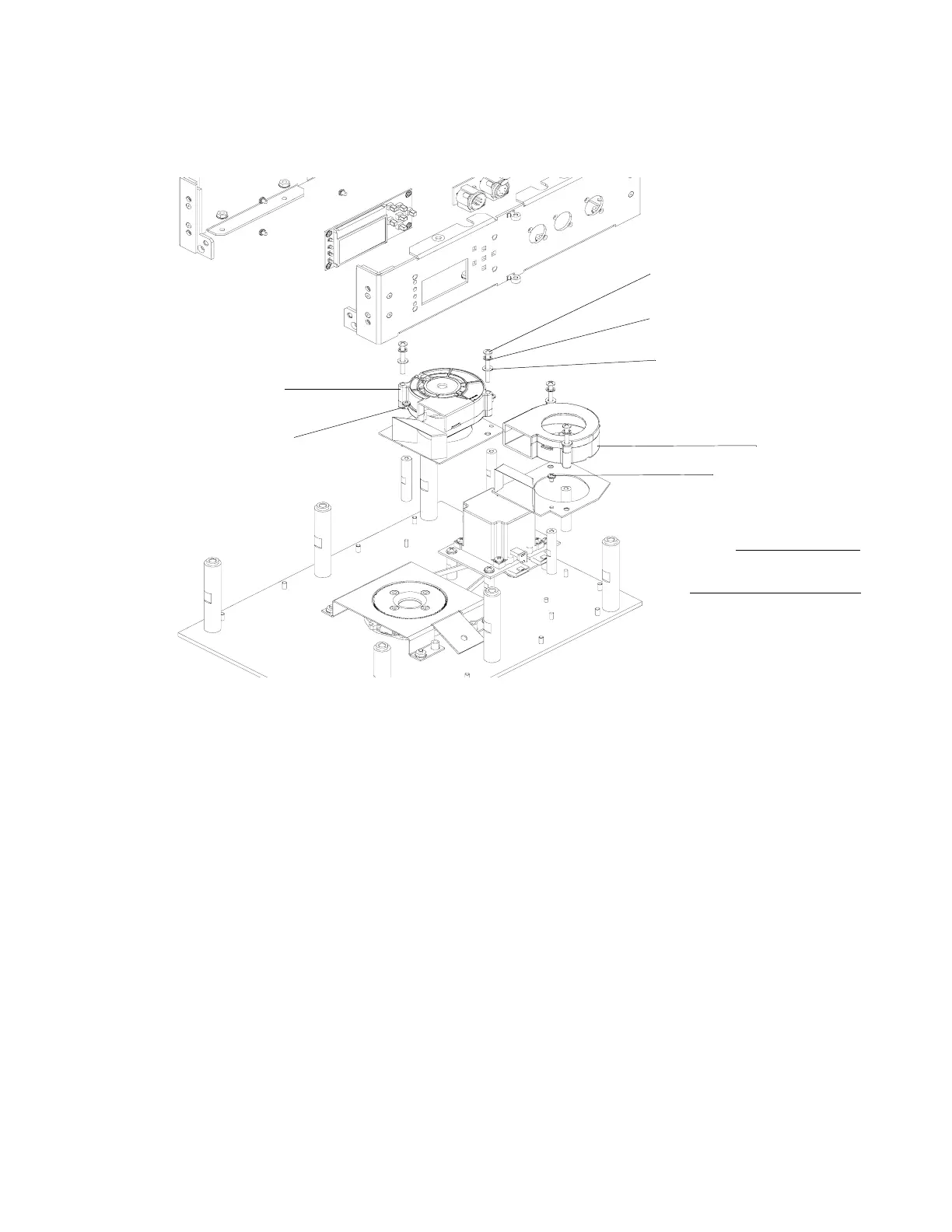

Figure 2-62: Enclosure Fan Assemblies Removal
Step 6. Remove fan from mounting assembly by removing two 6-32 x 1-1/2" PPZ screws, #8
internal tooth lock washers, and #8 flat washers (per assembly).
Step 7. Disconnect wiring and remove fans.
Step 8. Reassemble by performing steps in reverse order.
NOTE:
Components removed and
exploded for clarity.
Fan Assembly
6-32 x 1/4" PPZ
SEMS Screw (x2)
Fan Assembly
6-32 x 1/4" PPZ
SEMS Screw (x2)
8-32 x 1-1/2" PPZ
Screw (x2 / assembly)
#8 Internal Tooth
Lock Washer (x2 / assembly)
#8 Flat Washer (x2 / assembly)
