Supplementary data
Operating Manual PNOZ s30
1001715-EN-19
| 127
13.4.2 Incremental encoder connection
13.4.2.1 Features
PNOZ s30
} Speed monitoring:
Monitoring for overspeed for both operating modes "Setup" and "Automatic", which are
selected with the switch S1.
– The operating mode "Setup" is selected if the select input SEL1 is activated. Over-
speed is detected during setup at > 50 Hz and the output Rel. 2 switches off.
– The operating mode "Automatic" is selected if the select input SEL2 is activated.
Overspeed is detected during automatic mode at > 3000 Hz and the output Rel. 2
switches off.
– If a speed of 2800 Hz is exceeded, the semiconductor output Out1 switches in auto-
matic mode and a message (advance warning) is output via the PLC.
} Standstill monitoring:
Standstill is detected for both operating modes at ≤ 2 Hz and the output Rel. 1 switches
on.
} Feedback loop monitoring via feedback inputs Y1 and Y2
Encoder:
The measured values are detected by an incremental encoder (sin/cos)

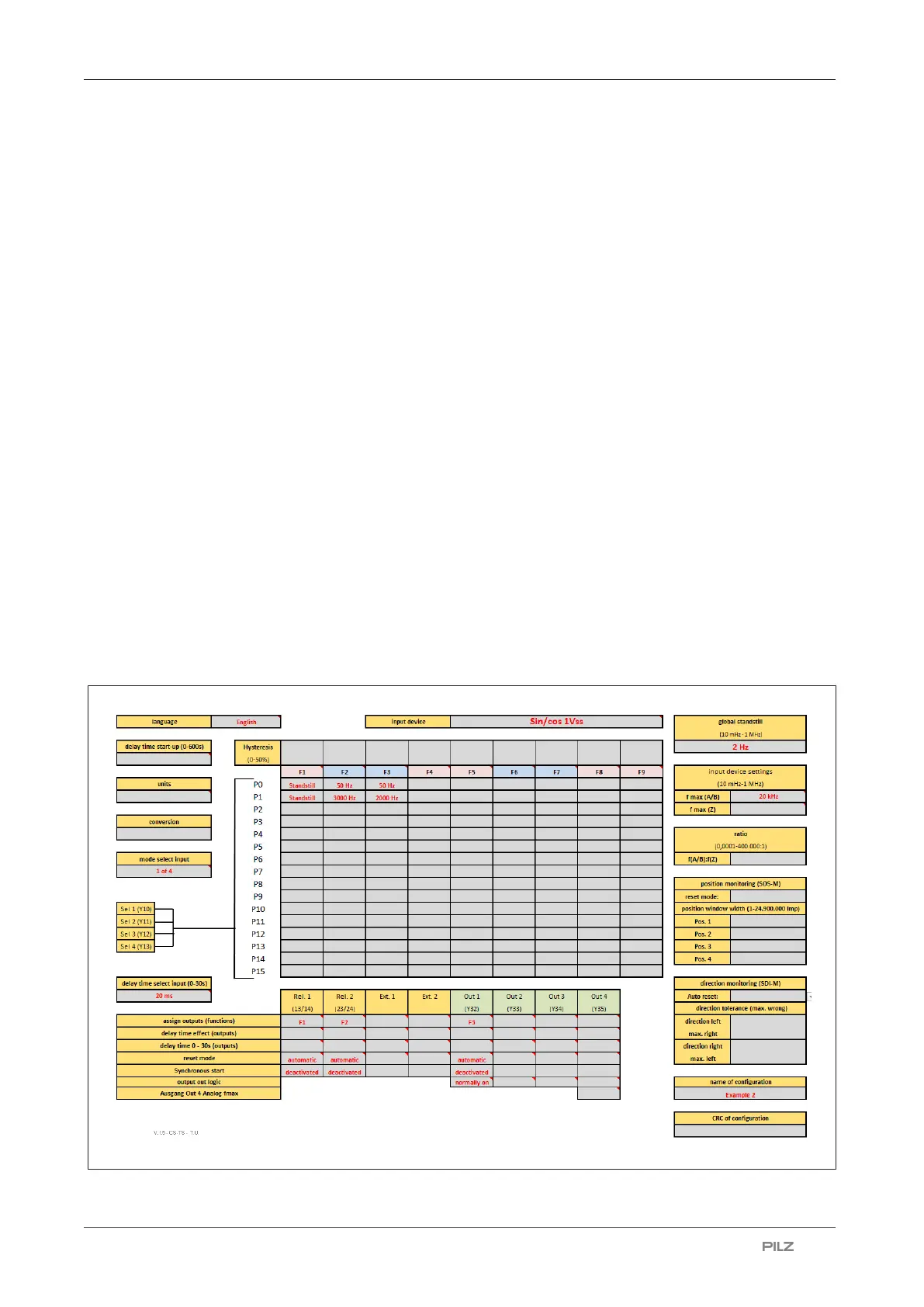

13.4.2.2 Configuration overview
