Wiring
Operating Manual PNOZ s30
1001715-EN-19
| 50
Please note:
Track /Z must remain free!!

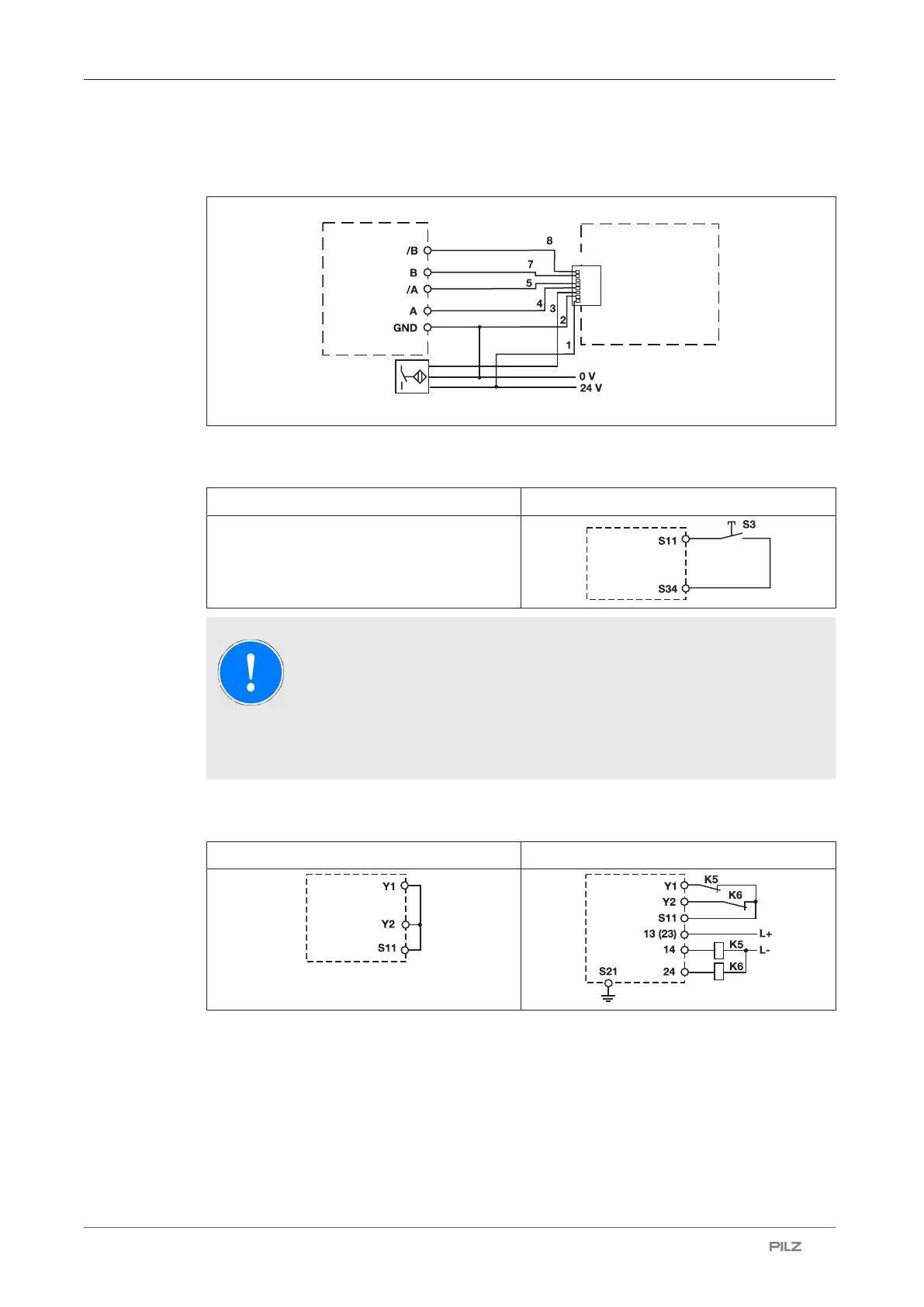

7.7 Reset circuit
Automatic start Monitored start
automatic start must only be configured
No wiring necessary!
NOTICE
With automatic start
The unit starts up automatically when the safeguard is reset, e.g. when the
E-STOP pushbutton is released. Use external circuit measures to prevent
an unexpected restart.
7.8 Feedback circuit
No feedback loop monitoring Contacts from external contactors
Please note:
When using the feedback loop, the cable run at S34, Y1, Y2 and S11 may be max. 30 m.
For greater cable runs, shielded cables with earthing at either end must be used.
