Step response of fast filter
Time [ms]
v unfiltered
v_filtered

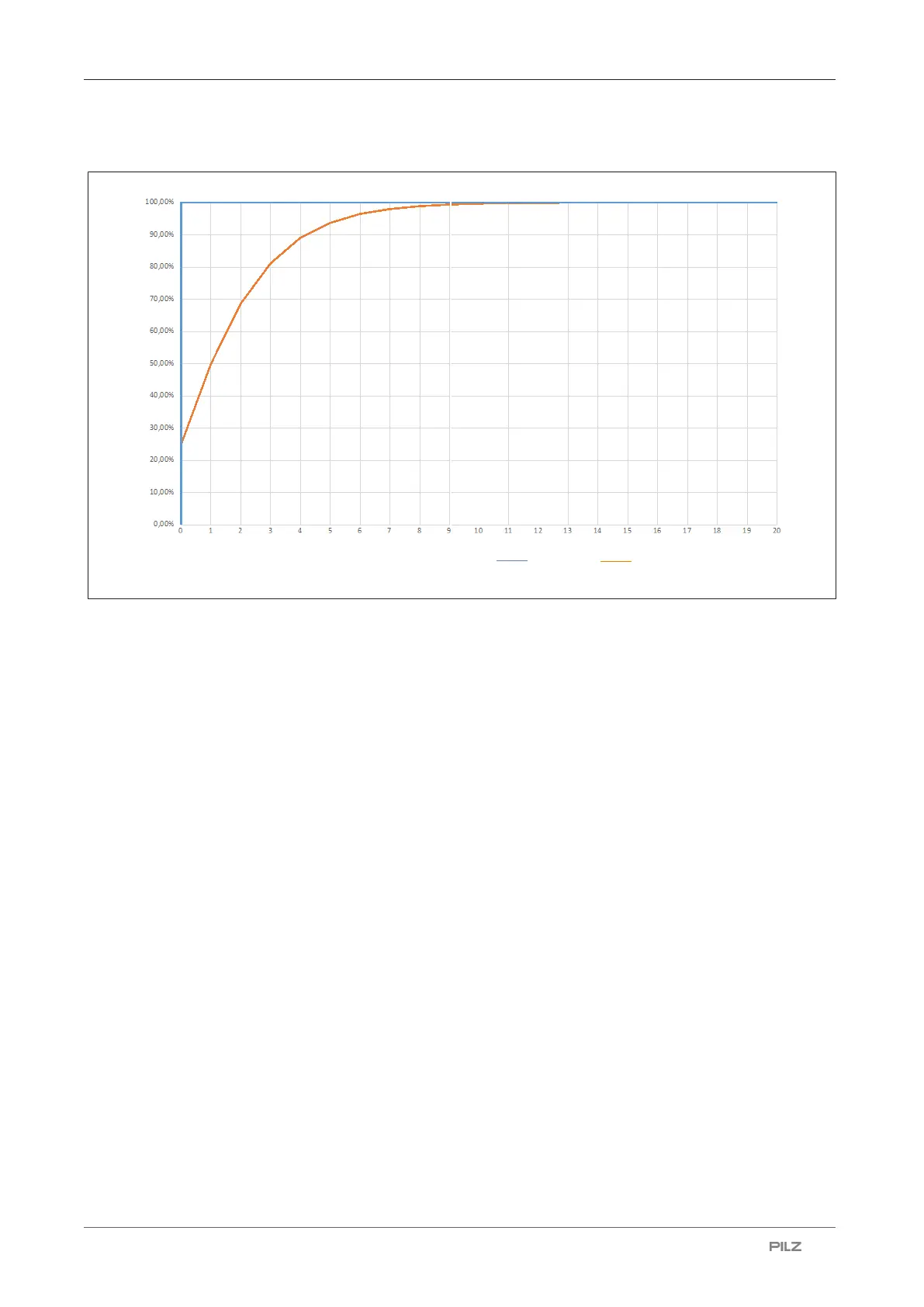

The diagram shows the reaction of the fast filter to a speed change at the input. The filter
achieves 99% of the set end value after approx. 9 ms.
5.3.9 Start types
You can choose between the following start modes:
} Automatic start
If an automatic start is configured, the output switches on automatically if the speed does
not reach the limit value, for example.
} Monitored start with rising edge
If a monitored start with rising edge is configured, the output switches on if the speed
does not reach the limit value and then a rising edge was detected at S34.
} Monitored start with falling edge
If a monitored start with falling edge is configured, the output switches on if the speed
does not reach the limit value and then a falling edge was detected at S34.
5.3.10 Start-up delay
A start-up delay time can be configured, which prevents the evaluation of the encoder sig-
nals for the configured time period after the supply voltage is switched on.
