5.3.15 Analogue output
The semiconductor output OUT 4 (Y35) can be configured as 0 – 20 mA or 4 – 20 mA ana-
logue output (burden 0 … 500 Ohm).

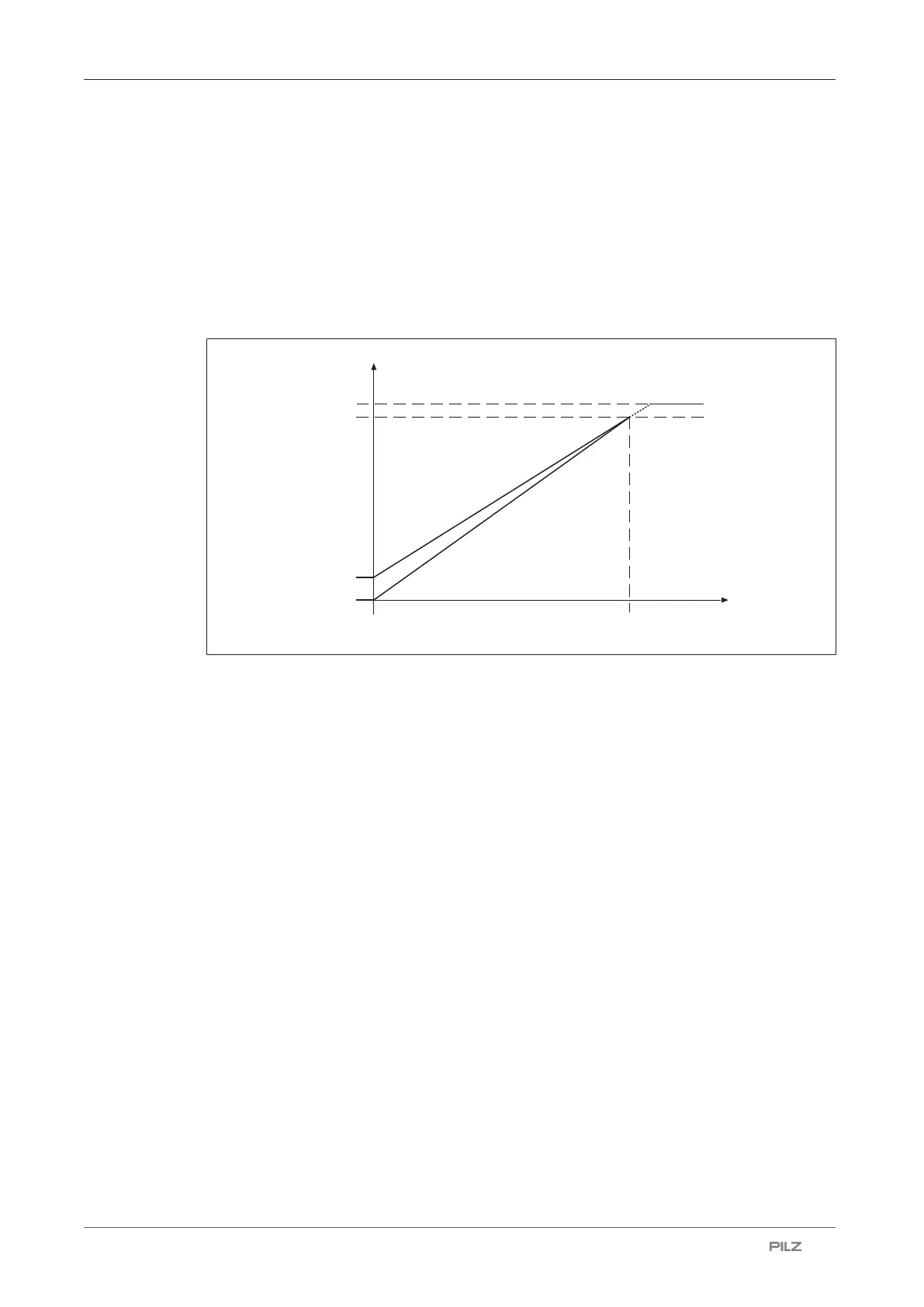

The currently applied frequency is output as a current value that is proportional to the cur-
rently applied frequency. Here, the current value rises to the maximum value 20 mA. The
relevant frequency f
max
can be configured for this maximum value (see "Expanded settings"
menu). When the maximum frequency is exceeded, the current value will continue to rise
proportionally to approx. 22 mA, and then remains constant.
5.3.16 Units
The values to be configured can be entered in various units. Depending on the axis type
(linear or rotational axis), various units can be selected for speed and distance (see chapter
entitled "Menu overview").
