Wiring
Operating Manual PNOZ s30
1001715-EN-19
| 47

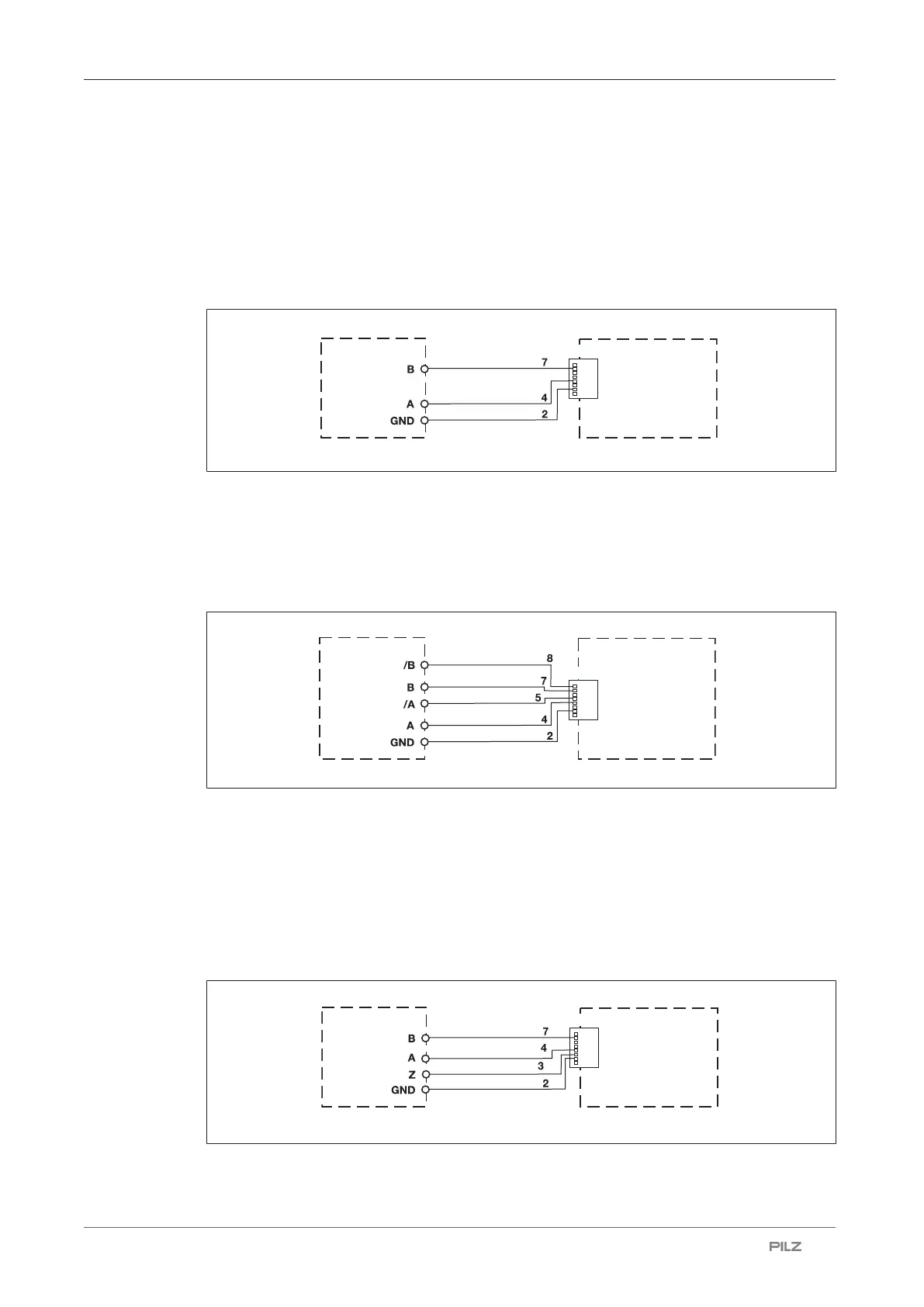

7.5.1 Connect rotary encoder to speed monitor
Encoder types:
} TTL single ended
} HTL single ended
Please note:
} Tracks/A, /B, Z and /Z must remain free
Encoder
RJ45
PNOZ s30
Encoder types:
} TTL Differential
} HTL differential
} sin/cos 1 Vss
} Hiperface
Encoder
RJ45
PNOZ s30
7.5.2 Connect rotary encoder with Z index to speed monitor
Encoder types:
} TTL single ended Z Index
} HTL single ended Z Index
Please note:
} Tracks /A, /B and /Z must remain free
Encoder
PNOZ s30
RJ45
