Display menu - Configuration
Operating Manual PNOZ s30
1001715-EN-19
| 57
8.2 Operate rotary knob
[1]
[2]

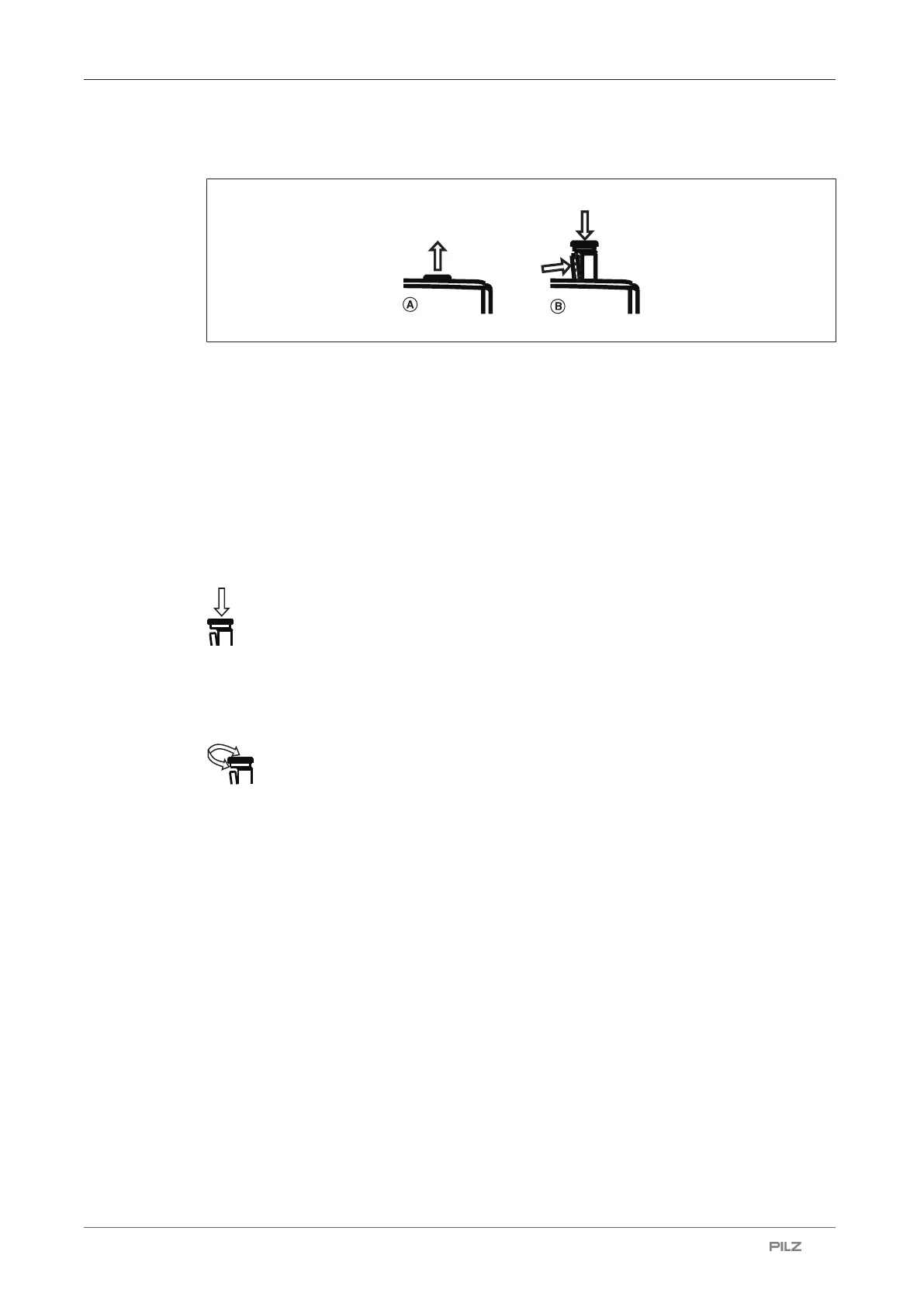

Knob :
} (A) pull out until it locks into position
} (B) release and push it back into the unit:
– Press the bar on the side of the knob [1] towards the centre of the knob. This releases
the knob.
– Press the knob downwards [2] while keeping the bar pressed in
8.3 Configure Speed Monitor
The settings are made via the rotary knob, as follows:
Press knob
} Confirm selection/setting
} Switch to menu
Rotate knob
} Select menu level
} Set the parameter/numeric value
The speed with which you turn the knob affects the sequence of the menu and numeric val-
ues:
} Slowly: Units
} Quickly: Tens
} Very quickly:
– Setting the numeric value: Hundreds
– When switching the menu level: Jump to ESCAPE
