Function description
Operating Manual PNOZ s30
1001715-EN-19
| 41
The tolerance time influences the sensitivity towards invalid signal levels (e.g. in the
event of EMC interference). The greater the configured tolerance time, the less sensitive
the system will be towards invalid signal levels. With encoder types with Z index the toler-
ance time for tracks A and B is also effective for track Z. The tolerance time for track Z is
only effective for the encoder types "rotary encoder + pnp proximity switch".
CAUTION!
Delayed reaction to invalid signal levels
Setting a tolerance time increases the reaction time of the feasibility check
of the signal levels. The detection time can increase to a maximum of four
times the set tolerance time as a result. This must be taken into account
when the system is designed.
Please note the values stated in the technical details

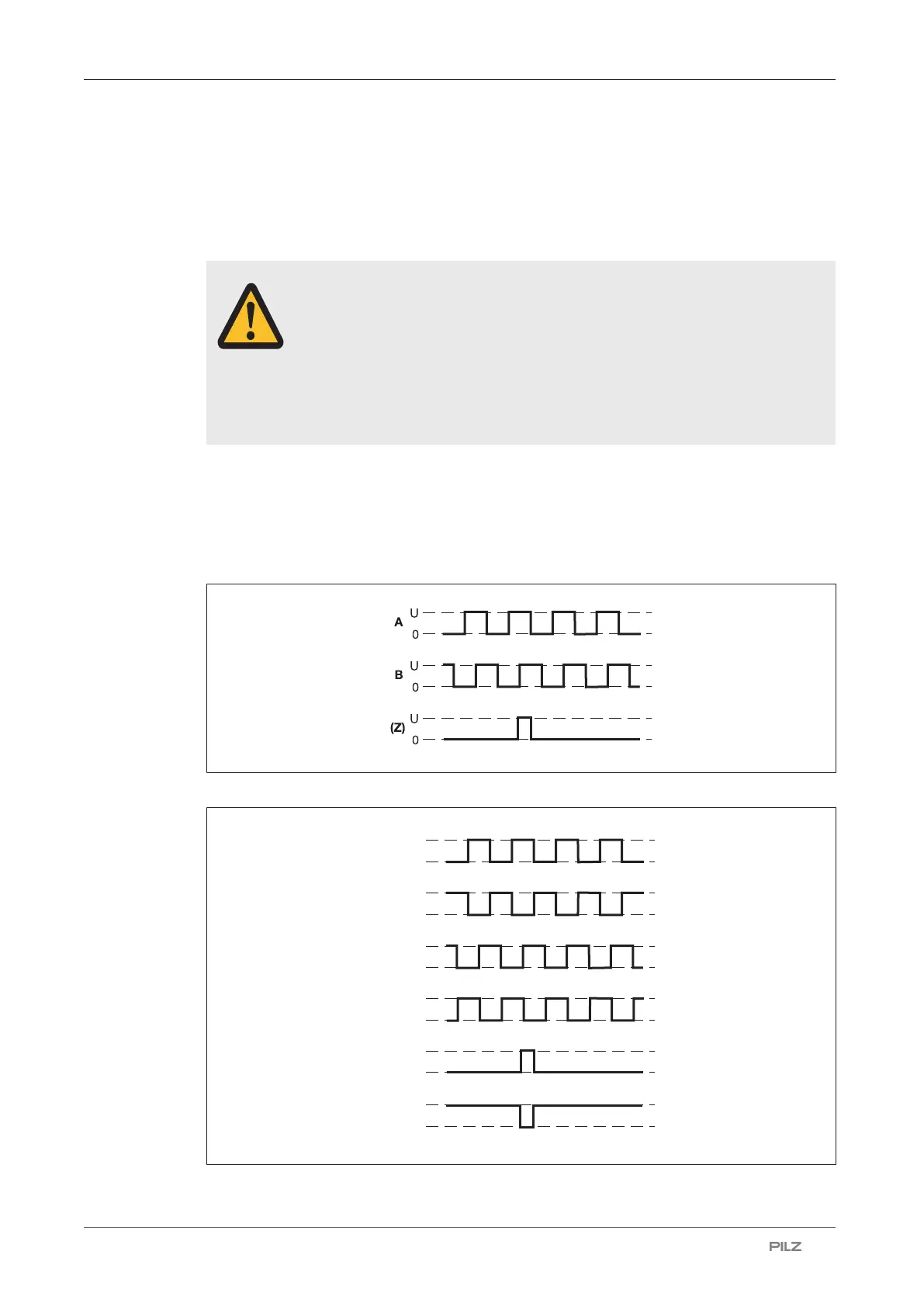

5.5.2.1 Output signals
Output signals TTL, HTL
} Single ended
} Differential
U
0
A
U
0
B
U
0
(Z)
U
0
/A
U
0
/B
U
0
(/Z)
