Wiring
Operating Manual PNOZ s30
1001715-EN-19
| 48
Encoder types:
} TTL differential + Z Index
} HTL differential + Z Index
} sin/cos 1 Vss Z Index
Please note:
} When using the encoder type sin/cos 1 Vss Z Index, the length of the encoder cable may
be max. 30 m.

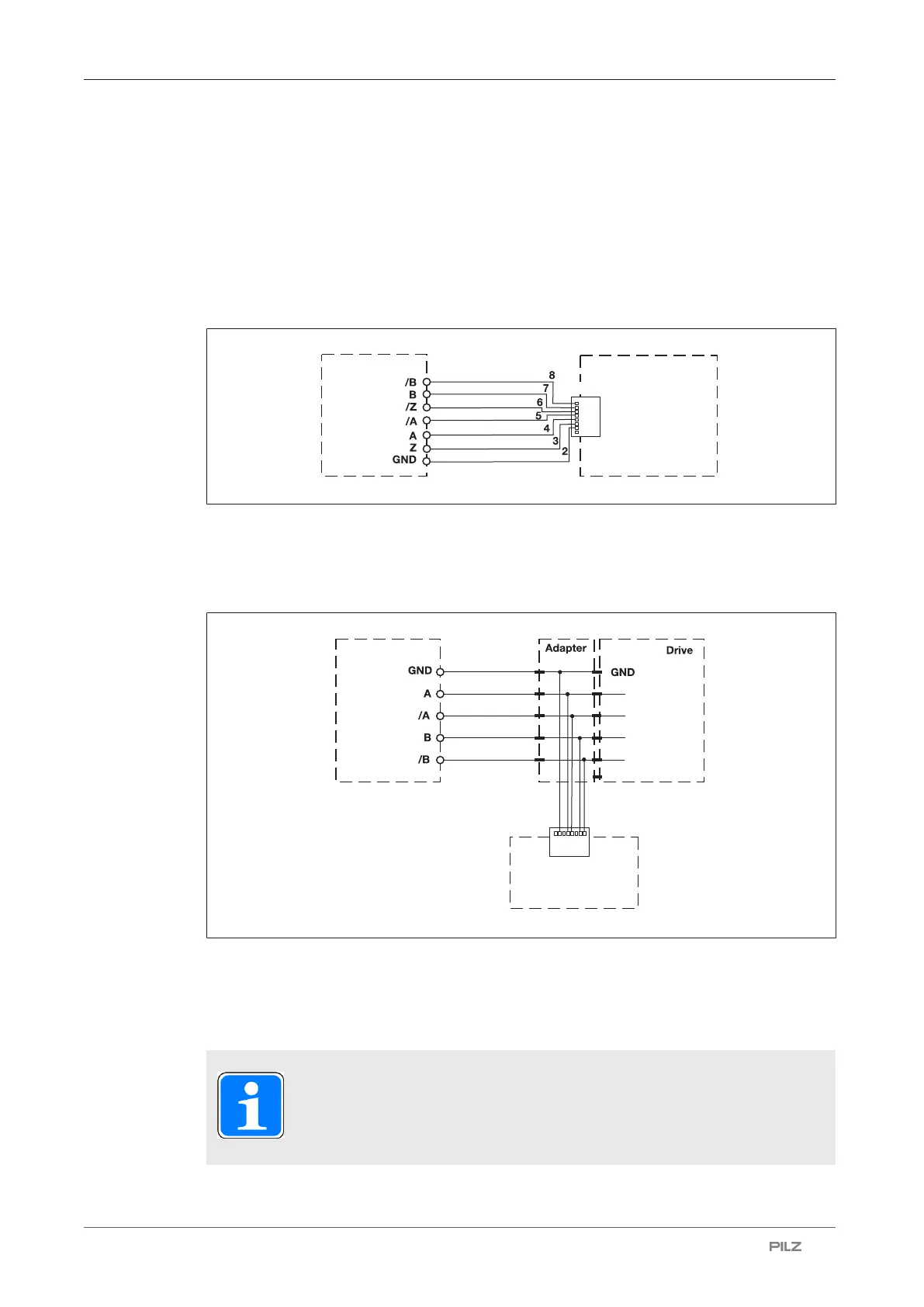

7.5.3 Connect rotary encoder to the speed monitor via an adapter
The adapter (see Accessories) is connected between the encoder and the drive. The output
on the adapter is connected to the RJ45 socket on the PNOZ s30.
7.6 Connection of proximity switch and rotary encoder
When connecting the encoders and proximity switches, please refer to the chapter entitled
"EMC-compliant wiring".
INFORMATION
The following diagrams are principle connection diagrams. For better clarity,
the shielding and supply voltage are not shown.
