Function description
Operating Manual PNOZ s30
1001715-EN-19
| 23

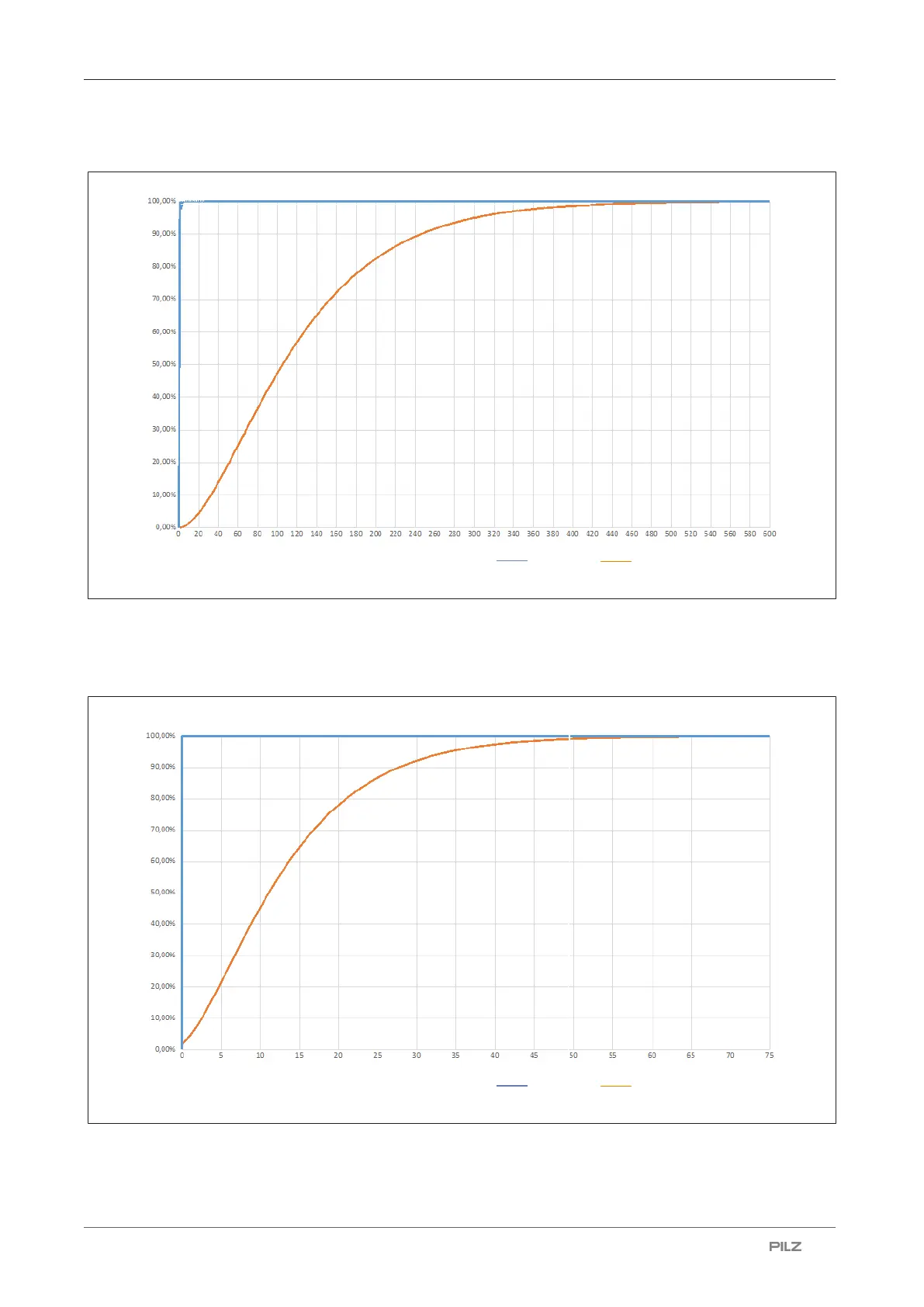

Step response of slow filter
Time [ms]
v unfiltered
v_filtered
The diagram shows the reaction of the slow filter to a speed change at the input. The filter
achieves 99% of the set end value after approx. 420 ms.
Step response of average filter
Time [ms]
v unfiltered
v_filtered
The diagram shows the reaction of the average filter to a speed change at the input. The fil-
ter achieves 99% of the set end value after approx. 47 ms.
