Function description
Operating Manual PNOZ s30
1001715-EN-19
| 30
The following switch functions are configured for the parameter set P1:
} F1: Standstill 2 Hz
} F2: Overspeed: 3000Hz
} F3: Warning threshold: 2000Hz
The following outputs are assigned to the switch functions:
} F1: Relay output Rel. 1
} F2: Relay output Rel. 2
} F3: Semiconductor output Out 1

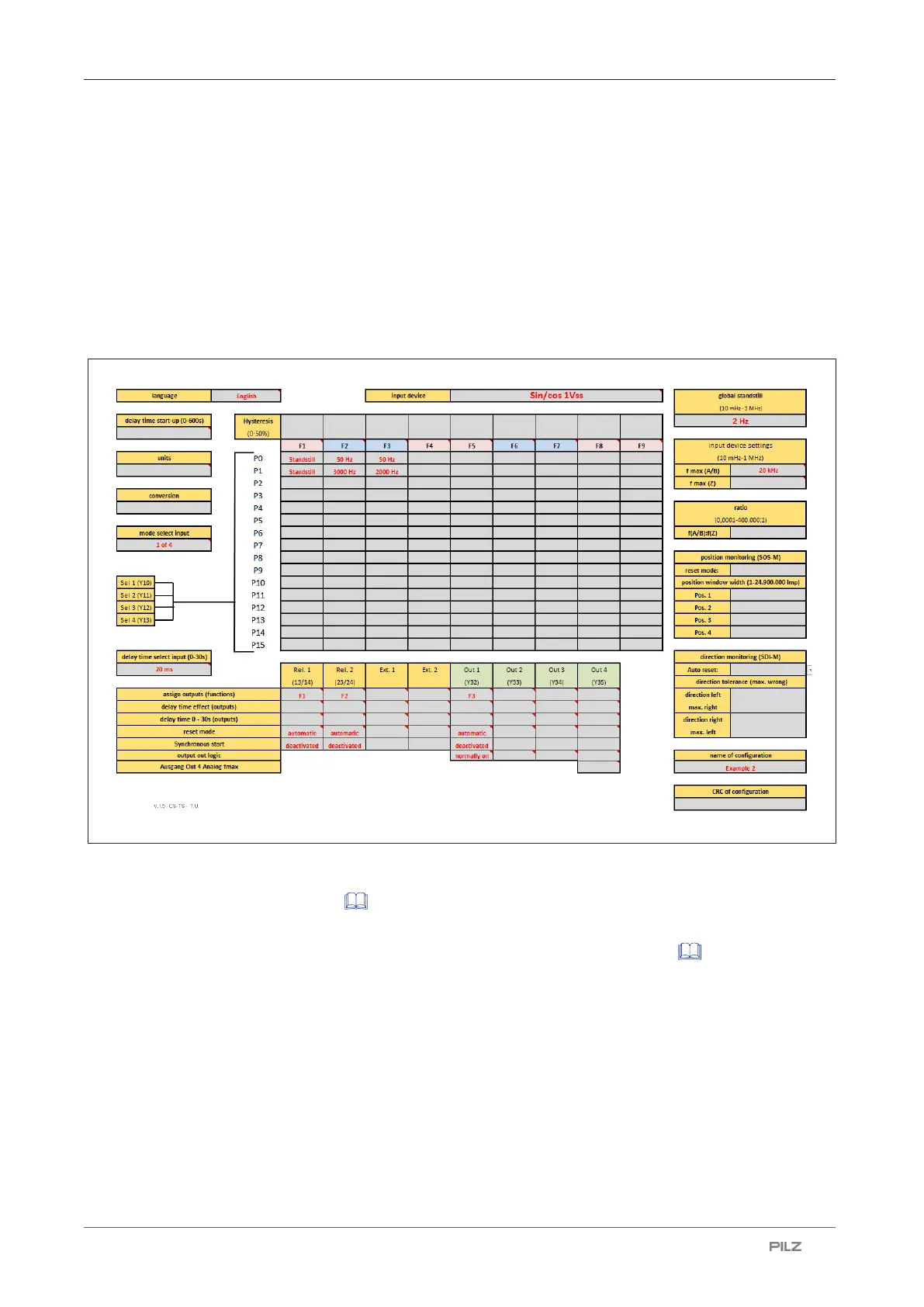

For documentation and a better overview of the device settings, we recommend that you fill
in this configuration overview before setting the device parameters (see under Create con-
figuration overview [ 56]).
From device version 2.2 you have the opportunity to create the settings with the software-
tool from Pilz (see Create configuration in PNOZsigma Configurator [ 87]).
