Wiring
Operating Manual PNOZ s30
1001715-EN-19
| 54

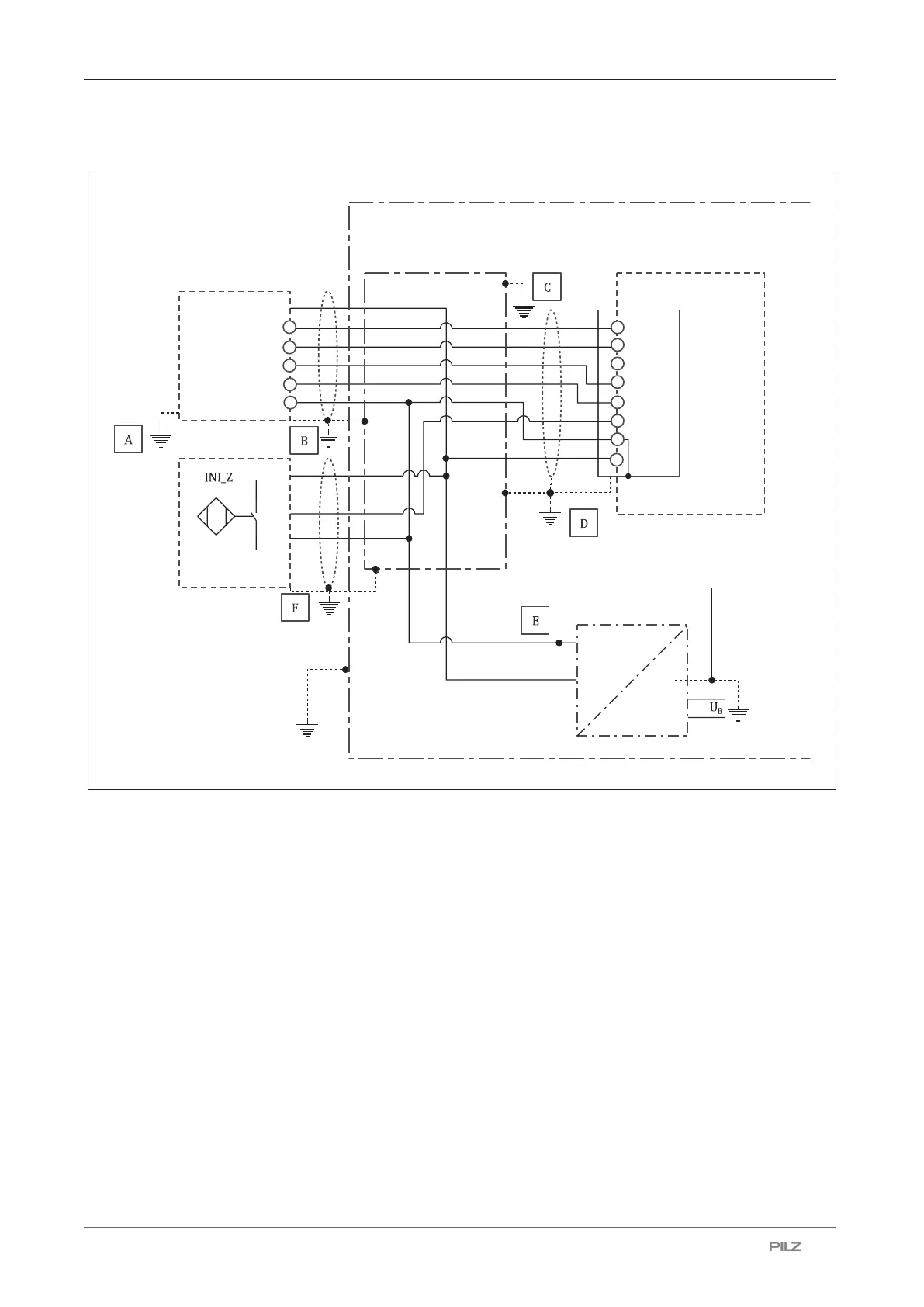

EMC-compliant wiring for connecting an encoder and a proximity switch
B
U
B
/B
/A
A
GND
7 B
5 /A
8 /B
4 A
3 Z
2 GND
1 S
RJ45
PNOZ s30
X6
Shielded
Connection Box
Power Supply
0 V DC
24 V
PE
L1
L2
Cabinet
To avoid EMC interference we recommend that the shield on the sensor cables or the
housing of the shielded connection box is connected to earth at a single point:
A or B or C or D or E or F
Conductor loops outside of the shield must be avoided.
If a shielded connection box is not used, the shield must run uninterrupted from the sensor
to the evaluation device.
