Pixsys MCM260X User Manual

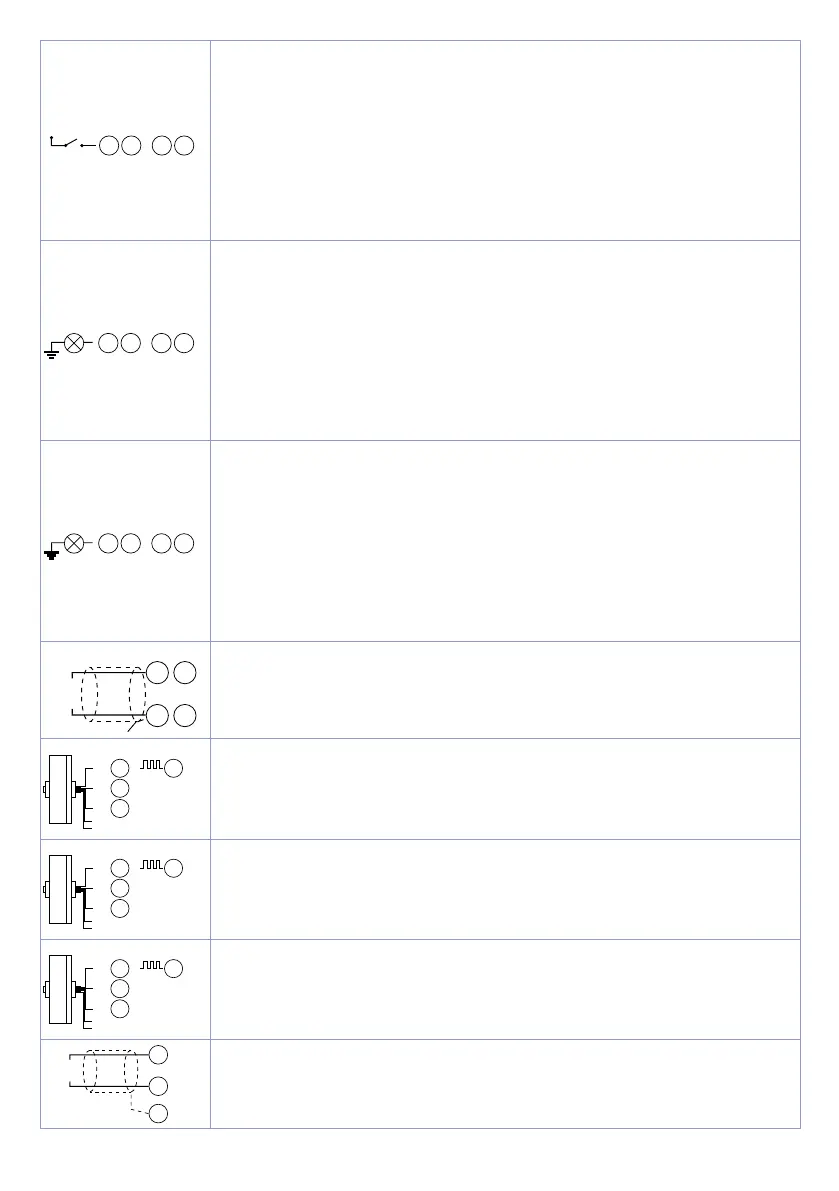

14 - MCM260X - Manuale d’uso
+V I.9 I.10 I.15 I.16
18 19 24.. 25
MCM260X-2AD
Digital inputs PNP 24Vdc
18: Input 9
19: Input 10
20: Input 11
21: Input 12
22: Input 13
23: Input 14
24: Input 15
25: Input 16
18 19 24.. 25
Q.9 Q.10 Q.15 Q.16
MCM260X-1AD
Static Outputs 24Vdc
18: Output 9
19: Output 10
20: Outp ut 11
21: Output 12
22: Output 13
23: Output 14
24: Outp ut 15
25: Output 16
18 19 24.. 25
Q.1 Q.2 Q.7 Q.8
MCM260X-3AD
Static Outputs 24Vdc
18: Output 1
19: Output 2
20: Outp ut 3
21: Output 4
22: Output 5
23: Output 6
24: Outp ut 7
25: Output 8
+
–
AI
V
Shield / Schermo
6 7
2 2
I.2 I.3
Analog inputs 0...10V 16bit (MCM260X-2AD only)*
6: Input 1
7: Input 2
2: Input reference
A
B
Z
+
-
SUPPLY
ENCODER1 COUNTER1
12
11
5
12
ENCODER
MCM260X-2AD, MCM260X-3AD
Encoder/Counter 1 inputs
12: Encoder 1 phase A / Counter 1 input
11: Encoder 1 phase B
5: Encoder 1 phase Z
A
B
Z
+
-
SUPPLY
ENCODER2 COUNTER2
9
8
19
9
ENCODER
MCM260X-2AD, MCM260X-3AD
Encoder/Counter 2 inputs
9: Encoder 2 phase A / Counter 2 input
8: Encoder 2 phase B
19: Encoder 2 phase Z (available on MCM260X-2AD only)
A
B
Z
+
-
SUPPLY
ENCODER3 COUNTER3
10
18
20
10
ENCODER
MCM260X-2AD, MCM260X-3AD
Encoder/Counter 3 inputs
10: Encoder 3 phase A / Counter 3 input
18: Encoder 3 phase B (available on MCM260X-2AD only)
20: Encoder 3 phase Z (available on MCM260X-2AD only)
CANH (B)
CAN
RS485
CANL (A)
(C)
Shield / Schermo
14
13
15
Field bus:
13: CANH / (B) RS485+
14: CANL / (A) RS485-
15: (C) GND for CANbus and Modbus RTU
