Pixsys MCM260X User Manual

Manuale d’uso - MCM260X - 15
16
Q-ID
I-ID
17
Automatic routing clips (Modbus RTU only)
16: Automatic routing output
17: Automatic routing input

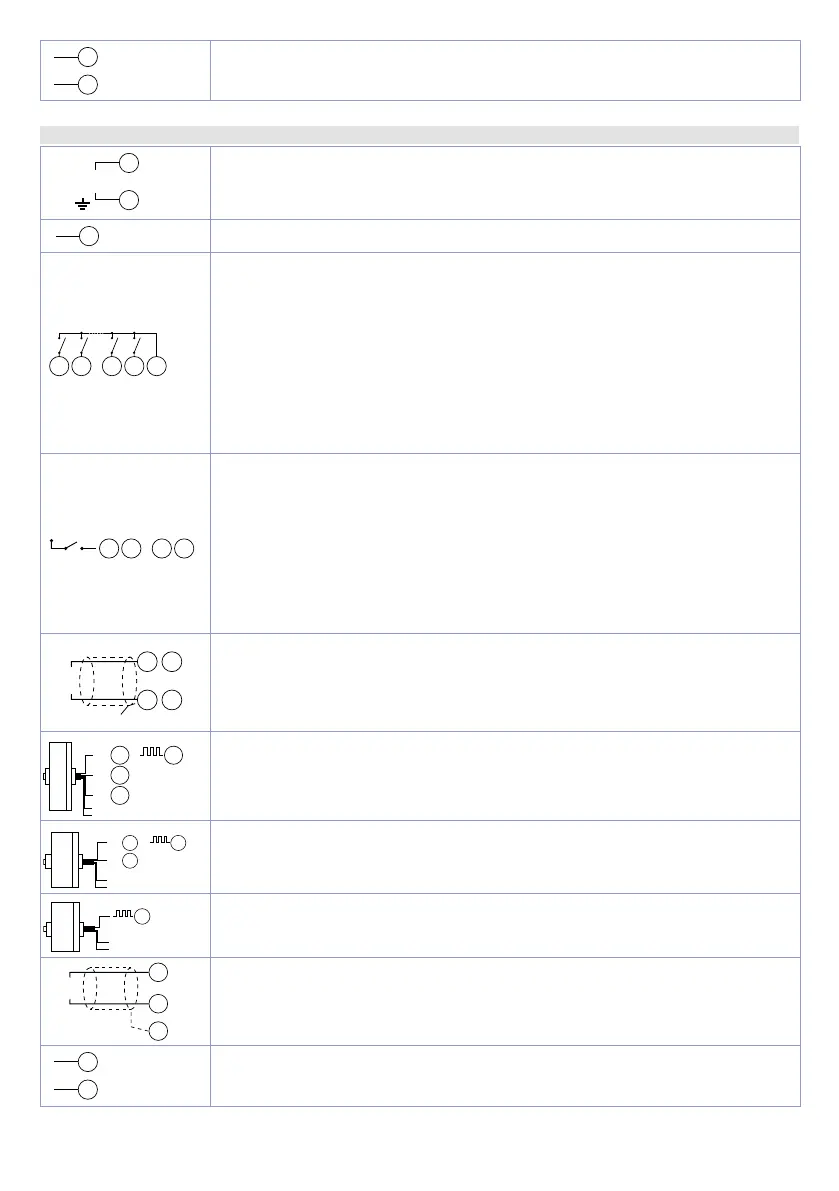

4.1.b MCM260X-4AD
1
+
–
12..24 VAC / VDC
2
Power supply 12..24Vac/Vdc ±15%
1: +Vdc
2: -Vdc
3
+V
Common clip for digital inputs 12..24Vdc
4 5 10.. 11 12
Q.1 Q.2 Q.7 Q.8
Relay outputs
4: Output 1
5: Output 2
6: Output 3
7: Output 4
8: Output 5
9: Output 6
10 : Output 7
11: Output 8
12: Common relay
+V I.1 I.2 I.7 I.8
18 19 24.. 25
Digital inputs PNP 24Vdc
18: Input 1
19: Input 2
20: Input 3
21: Input 4
22: Input 5
23: Input 6
24: Input 7
25: Input 8
+
–
AI V
Shield / Schermo
19 20
2 2
I.2 I.3
Analog inputs 0..10V / 16bit
19: Input 1
20: Input 2
2: Input reference
A
B
Z
+
-
SUPPLY
ENCODER1 COUNTER1
25
24
18
25
ENCODER
Encoder/Counter 1 inputs
25: Encoder 1 phase A / Counter 1 input
24: Encoder 1 phase B
18: Encoder 1 phase Z
A
B
+
-
SUPPLY
ENCODER2 COUNTER2
22
21
22
ENCODER
Encoder/Counter 2 inputs
22: Encoder 2 phase A / Counter 2 input
21: Encoder 2 phase B
+
-
SUPPLY
COUNTER3
23
COUNTER
Counter 3 input
23: Counter 3 input
CANH (B)
CAN
RS485
CANL (A)
(C)
Shield / Schermo
14
13
15
Field bus:
13: CANH / (B) RS485+
14: CANL / (A) RS485-
15: (C) GND for CANbus and Modbus RTU
16
Q-ID
I-ID
17
Automatic routing clips (Modbus RTU only)
16: Automatic routing output
17: Automatic routing input
