User’s Manual of IGS-20040MT

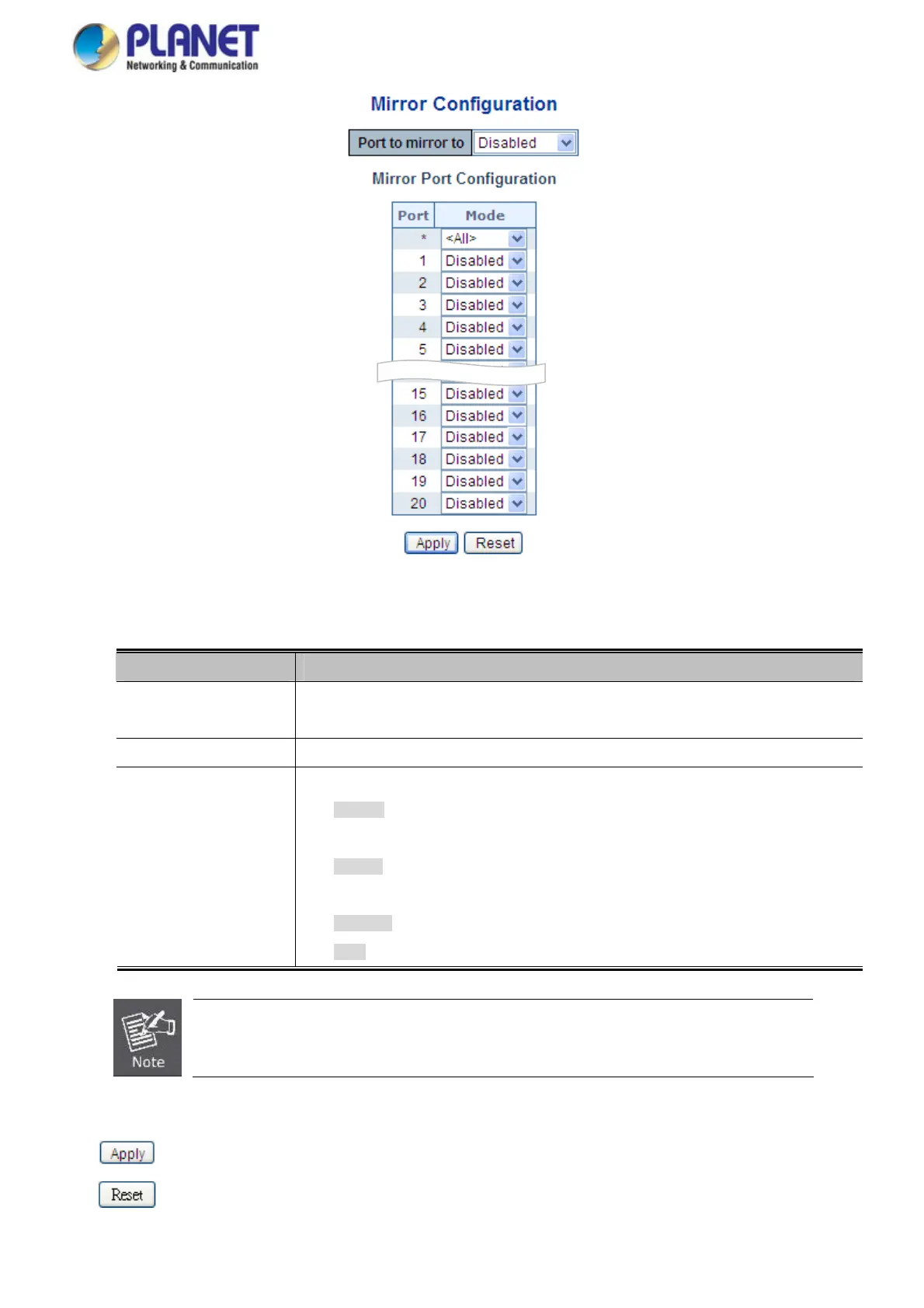

Figure 4-4-6: Mirror Configuration Page Screenshot
The Page includes the following fields:
Object Description
Frames from port
s that have either source (rx) or destination (tx) mirroring enabled are
mirrored to this port. Disabled disables mirroring.
Port to mirror on
The logical po
rt for the settings contained in the same row.
Port
Select mirror mode.
Mode
Rx only: Fr
ames received at this port are mirrored to the mirroring port. Frames
transmitted are not mirrored.
Tx only: Frames transmitted from this port are mirrored to the mirroring port. Frames
received are not mirrored.
Disabled: Neither frames transmitted or frames received are mirrored.
Both: Frames received and frames transmitted are mirrored to the mirror port.
For a given port, a frame is only transmitted once. It is therefore not possible to mirror Tx frames on
the mirror port. Because of this, mode for the selected mirror port is limited to Disabled or Rx only.
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
105
