2.1.4 Switch Upper Panel
The Upper Panel of the Industrial Managed Switch indicates a DC inlet power socket and consist one terminal block
connector within 6-contacts. It accepts input power from 12 to 48V DC and 24V AC.
1. Insert positive / negative DC power wires into contacts 1 and 2 for DC Power 1, or 5 and 6 for DC Power 2.

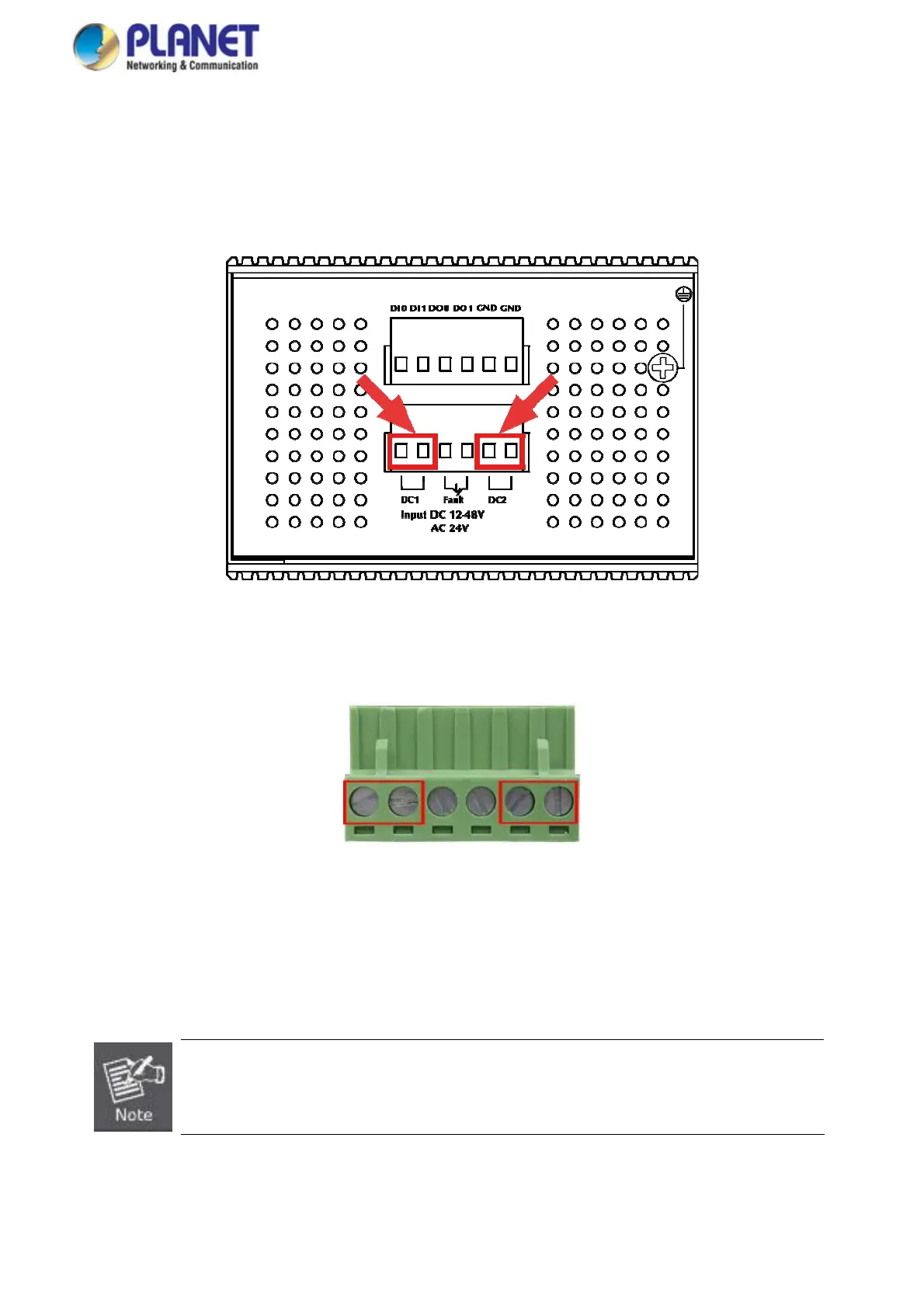

Figure 2-3: IGS-20040MT Upper Panel
2. Tighten the wire-clamp screws for preventing the wires from loosening.
1 2 3 4 5 6
DC 1 DC 2
+ - + -
Figure 2-4 6-Pin Terminal Block Power Wiring Input
1. The wire gauge for the terminal block should be in the range of 12 ~ 24 AWG.
2. When performing any of the procedures like inserting the wires or tighten the wire-clamp screws,
make sure the power is OFF to prevent from getting an electric shock.
26

Planet IGS-20040MT Specifications

General

Switch type	Managed
Switch layer	L2+
Traffic classification	Yes
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4095
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Stackable	-
Certification	FCC, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Fiber ethernet cabling technology	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput	29.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Number of IP interfaces	8
Power consumption (max)	17 W
Power consumption (typical)	8 W
Heat dissipation	27 BTU/h
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	IPv4 / IPv6
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered	255
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1043 g
