4.2.20 Save Startup Config
This function allows to save the current configuration, thereby ensuring that the current active configuration can be used at the
next reboot screen in Figure 4-2-24 as shown below. After saving the configuration, the screen in Figure 4-2-25 appears.

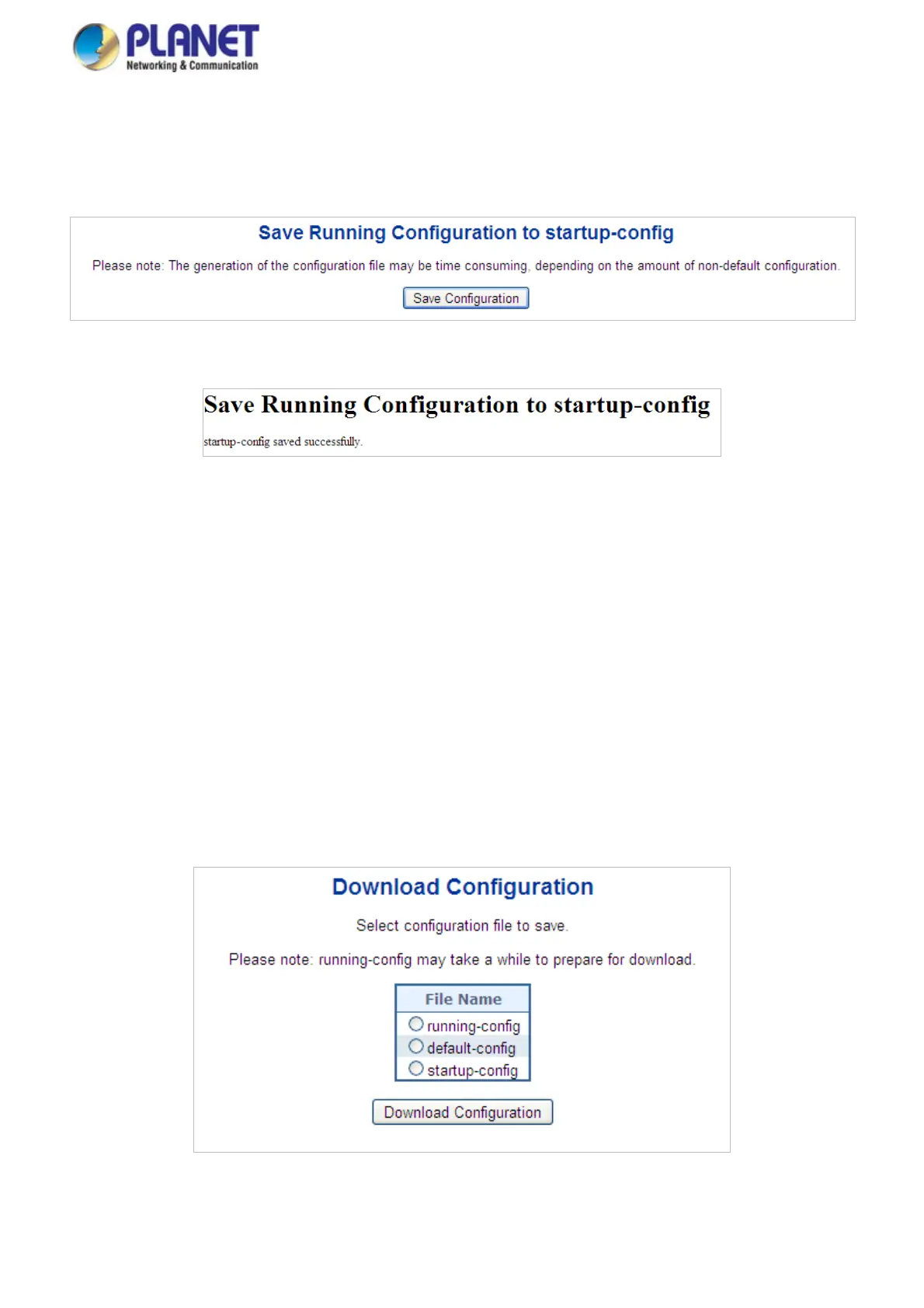

Figure 4-2-24: Configuration Save Page Screenshot
Figure 4-2-25: Finish Saving Page Screenshot
4.2.21 Configuration Download
The switch stores its configuration in a number of text files in CLI format. The files are either virtual (RAM-based) or stored in
flash on the switch.
There are three system files:
 running-config: A virtual file that represents the currently active configuration on the switch. This file is volatile.
 startup-config: The startup configuration for the switch reads at boot time.
 default-config: A read-only file with vendor-specific configuration. This file is read when the system is restored to default
settings.
It is also possible to store up to two other files and apply them to running-config, thereby switching configuration.
Configuration Download page allows the downloads of the running-config, startup-config and default-config on the switch.
Please refer to Figure 4-2-26 shown below.
Figure 4-2-26: Configuration Download Page Screenshot
80
