4.17.3 RMON Event Configuration

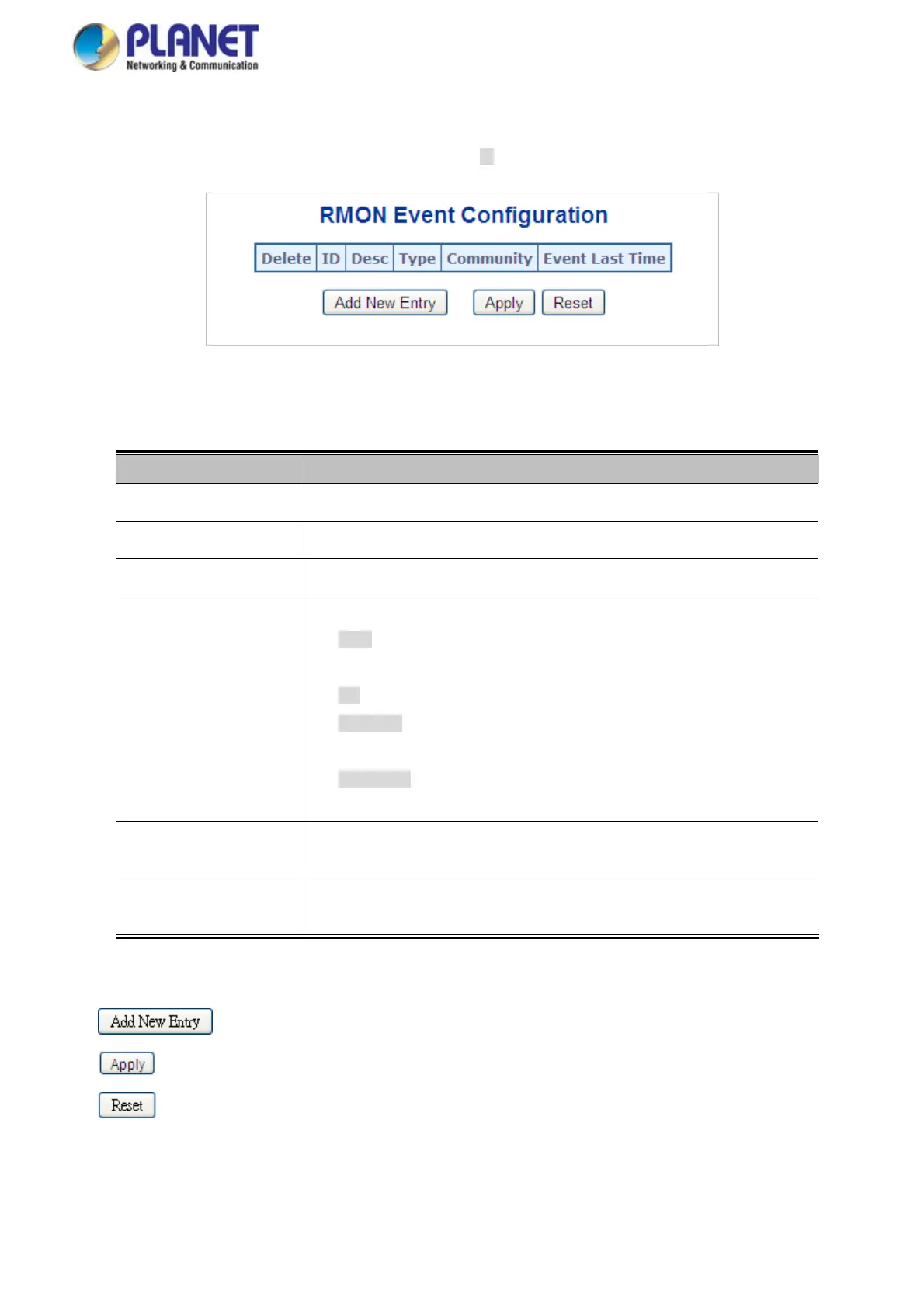

Configure RMON Event table on this Page. The entry index key is ID; screen in Figure 4-17-3 appears.
Figure 4-17-3: RMON Event Configuration Page Screenshot
The Page includes the following fields:
Object Description
Check to delete
the entry. It will be deleted during the next save.
 Delete
Indicates the inde
x of the entry. The range is from 1 to 65535.
 ID
 Desc
Indicates this event, the string length is from 0 to 127, default is a null string.
 Type
Indicates the notification of the event, the possible types are:
 none: The total number of octets received on the interface, including framing
characters.
 log: The number of uni-cast packets delivered to a higher-layer protocol.
 snmptrap: The number of broad-cast and multi-cast packets delivered to a
higher-layer protocol.
 logandtrap: The number of inbound packets that are discarded even the
packets are normal.
Specify
the community when trap is sent, the string length is from 0 to 127,
default is "public".
 Community
Indicates the value of s
ysUpTime at the time this event entry last generated an
event.
 Event Last Time
Buttons
: Click to add a new community entry.
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
332

Planet IGS-20040MT Specifications

General

Switch type	Managed
Switch layer	L2+
Traffic classification	Yes
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4095
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Stackable	-
Certification	FCC, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Fiber ethernet cabling technology	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput	29.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Number of IP interfaces	8
Power consumption (max)	17 W
Power consumption (typical)	8 W
Heat dissipation	27 BTU/h
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	IPv4 / IPv6
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered	255
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1043 g
