User’s Manual of IGS-20040MT
4.8.16 MVR (Multicaset VLAN Registration)
The MVR feature enables multicast traffic forwarding on the Multicast VLANs.

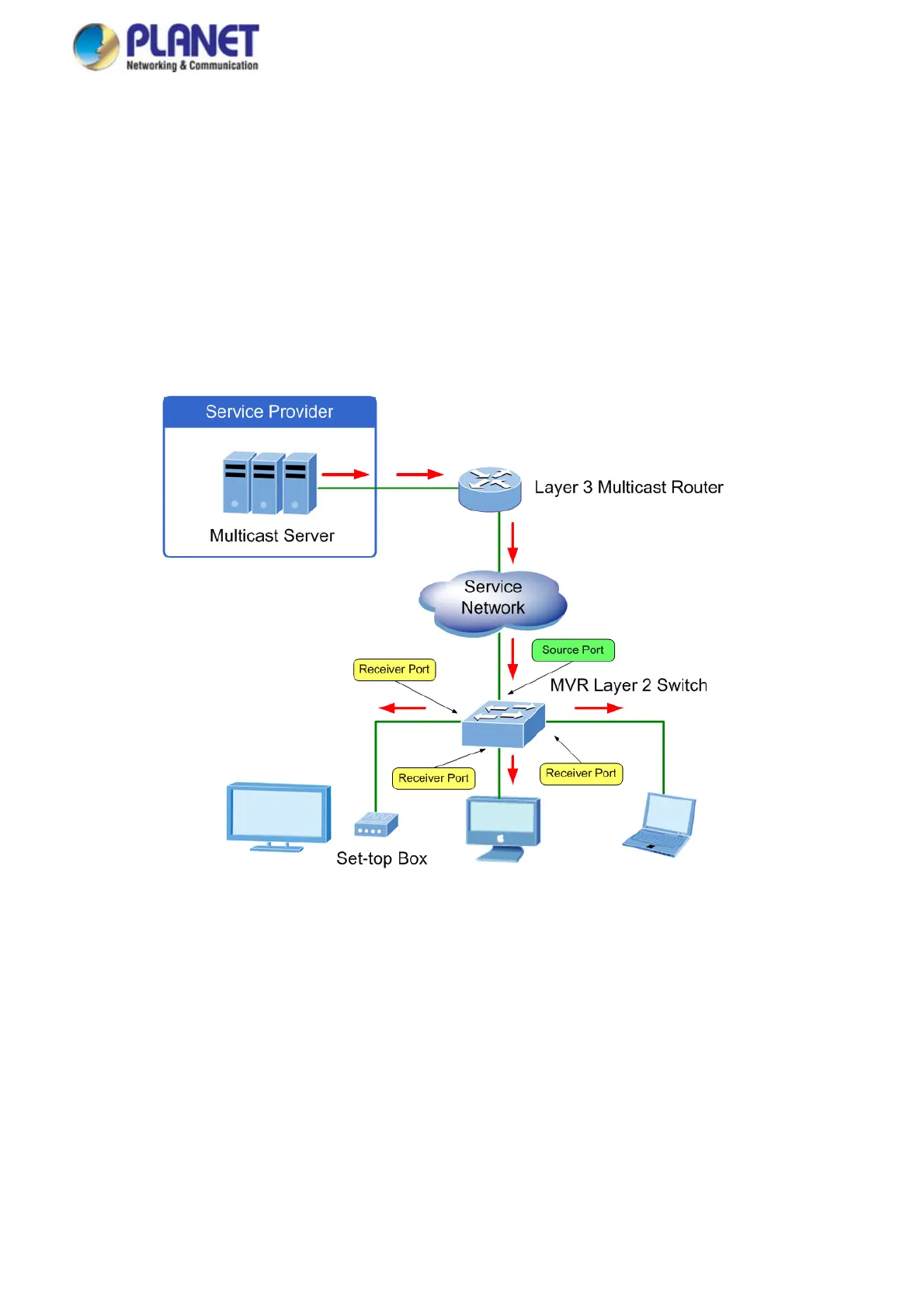

■ In a multicast television application, a PC or a network television or a set-top box can receive the multicast stream.
■ Multiple set-top boxes or PCs can be connected to one subscriber port, which is a switch port configured as an MVR
receiver port. When a subscriber selects a channel, the set-top box or PC sends an IGMP/MLD report message to Switch
A to join the appropriate multicast group address.
■ Uplink ports that send and receive multicast data to and from the multicast VLAN are called MVR source ports.
It is allowed to create at maximun 8 MVR VLANs with corresponding channel settings for each Multicast VLAN. There will be
totally at maximun 256 group addresses for channel settings.
This Page provides MVR related configuration. The MVR screen in Figure 4-8-19 appears.
186

Planet IGS-20040MT Specifications

General

Switch type	Managed
Switch layer	L2+
Traffic classification	Yes
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4095
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Stackable	-
Certification	FCC, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Fiber ethernet cabling technology	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput	29.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Number of IP interfaces	8
Power consumption (max)	17 W
Power consumption (typical)	8 W
Heat dissipation	27 BTU/h
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	IPv4 / IPv6
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered	255
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1043 g
