IEEE 802.1D-2004.
 DSCP
DSCP value to be used to provide Diffserv node behavior for the specified
application type as defined in IETF RFC 2474. DSCP may contain one of 64
code point values (0 through 63). A value of 0 represents use of the default
DSCP value as defined in RFC 2475.
 Adding a new policy
Click
to add a new policy. Specify the Application type,
Tag, VLAN ID, L2 Priority and DSCP for the new policy. Click "Save".
The number of policies supported is 32
Port Policies Configuration
Every port may advertise a unique set of network policies or different attributes for the same network policies, based on the
authenticated user identity or port configuration.
Object Description
The port number for w
hich the configuration applies.
 Port
The set of policies that shall a
pply for a given port. The set of policies is selected
by checkmarking the checkboxes that corresponds to the policies
 Policy ID
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
4.14.4 LLDP-MED Neighbor
This Page provides a status overview for all LLDP-MED neighbors. The displayed table contains a row for each port on which an
LLDP neighbor is detected. The LLDP-MED Neighbor Information screen in Figure 4-14-3 appears. The columns hold the
following information:

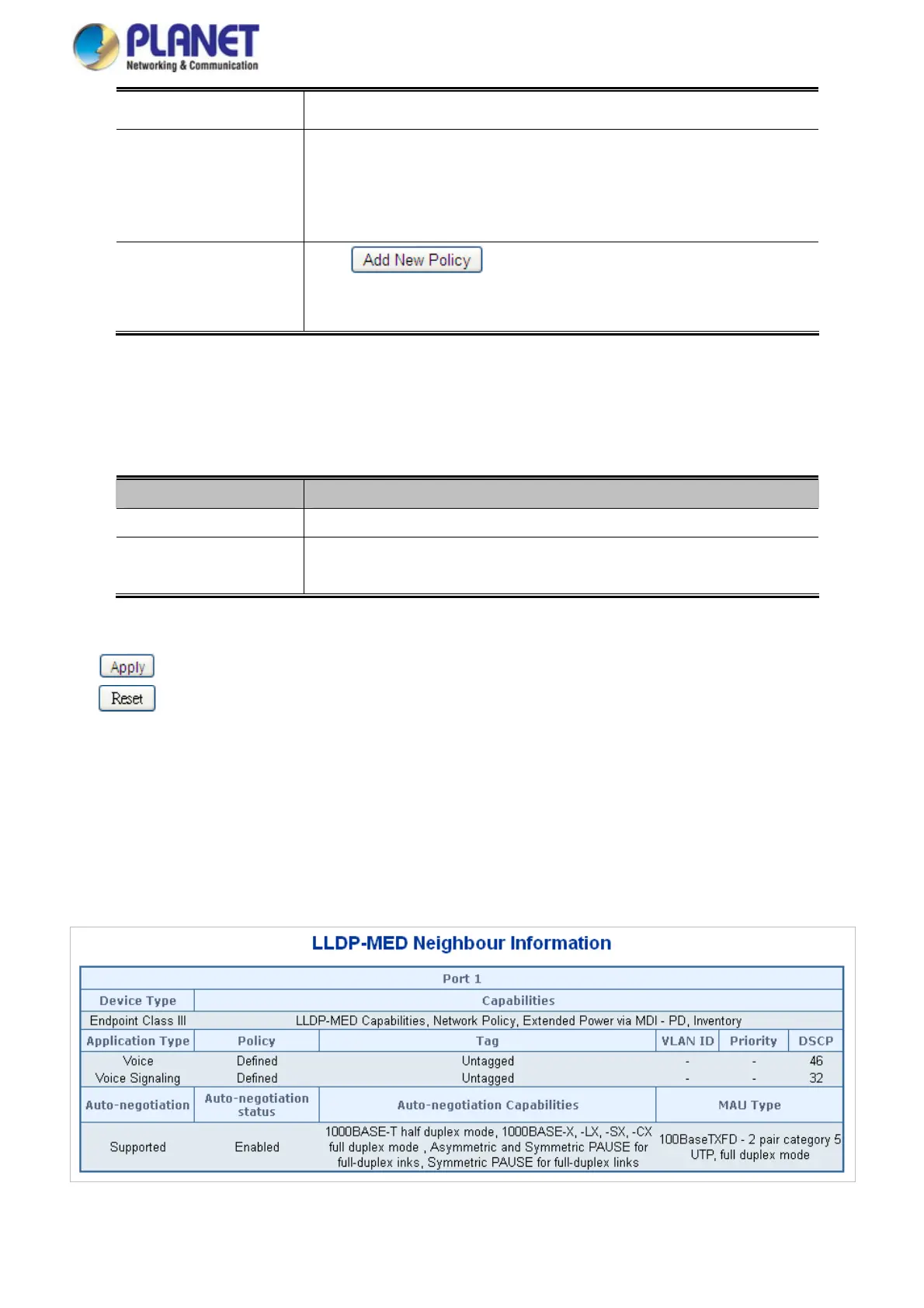

Figure 4-14-3: LLDP-MED Neighbor Information Page Screenshot
312
