User’s Manual of IGS-20040MT
4.19.1 MEP Configuration
The Maintenance Entity Point instances are configured here; screen in Figure 4-19-1 appears.

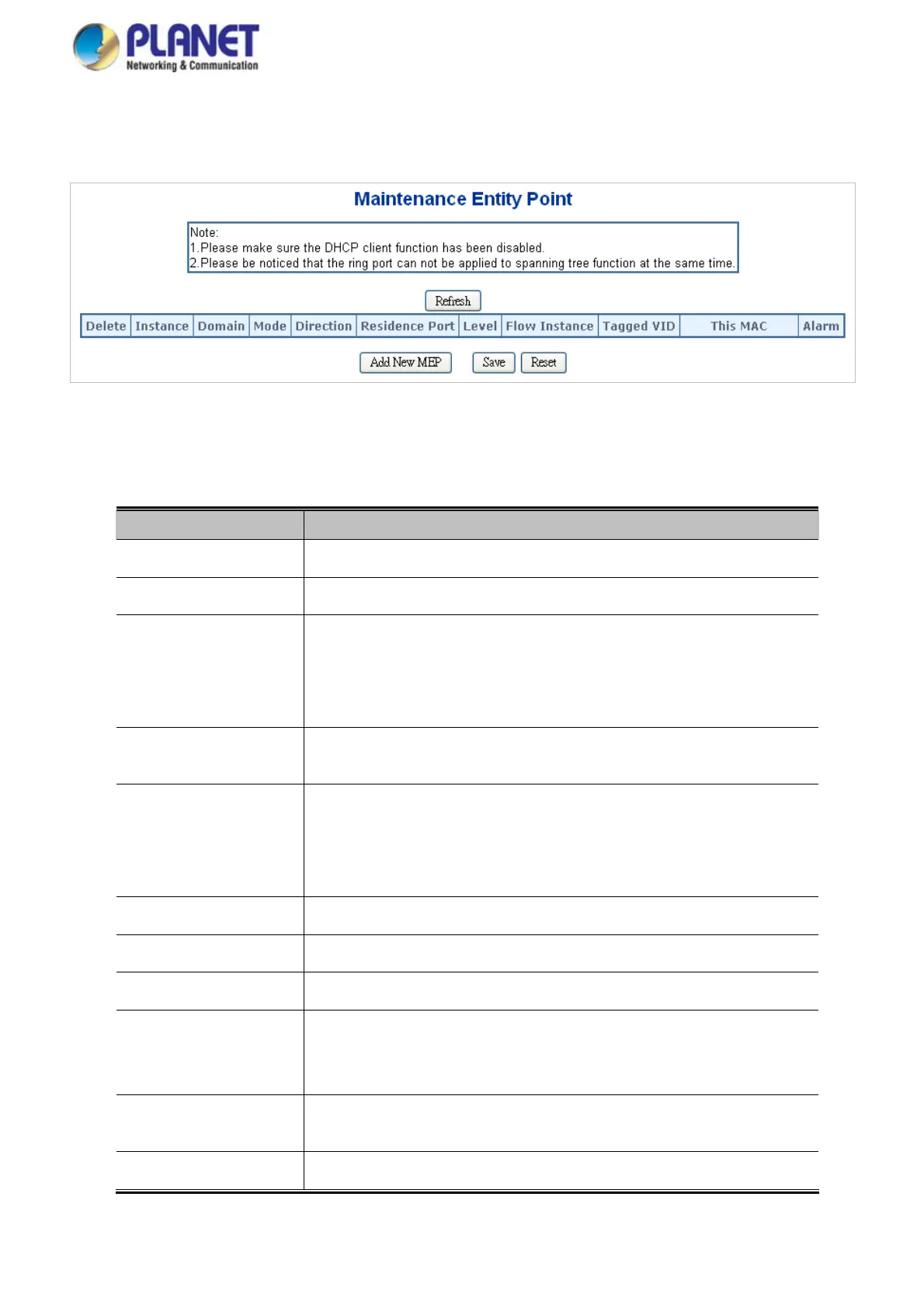

Figure 4-19-1: MEP configuration page screenshot
The page includes the following fields:
Object Description
This box
is used to mark a MEP for deletion in next Save operation.
Delete
Instance
The ID of the MEP. Click on the ID of a MEP to enter the configuration page.
Domain
Port: This is a MEP in the Port Domain. 'Flow Instance' is a Port.
Esp: Future use
Evc: This is a MEP in the EVC Domain. 'Flow Instance' is a EVC
Mpls: Future use
Mode
MEP: This is a Maintenance Entity End Point.
MIP: This is a Maintenance Entity Intermediate Point.
Direction
Ingress: This is a Ingress (down) MEP - monitoring ingress traffic on 'Residence
Port'.
Egress: This is a Egress (up) MEP - monitoring egress traffic on 'Residence
Port'.
The port w
here MEP is monitoring - see 'Direction'.
Residence Port
The MEG level of this MEP
.
Level
Flow Instance
The MEP is related to this flow - See 'Domain'.
Tagged VID
Port MEP: An outer C/S-tag (depending on VLAN Port Type) is added with this
VID.
Entering '0' means no TAG added.
The MAC of this
MEP - can be used by other MEP when unicast is selected (Info
only).
This MAC
There is an active alarm on th
e MEP.
Alarm
345
