4.9.9 DSCP Translation
This Page allows you to configure the basic QoS DSCP Translation settings for all switches. DSCP translation can be done in
Ingress or Egress. The DSCP Translation screen in Figure 4-9-10 appears.

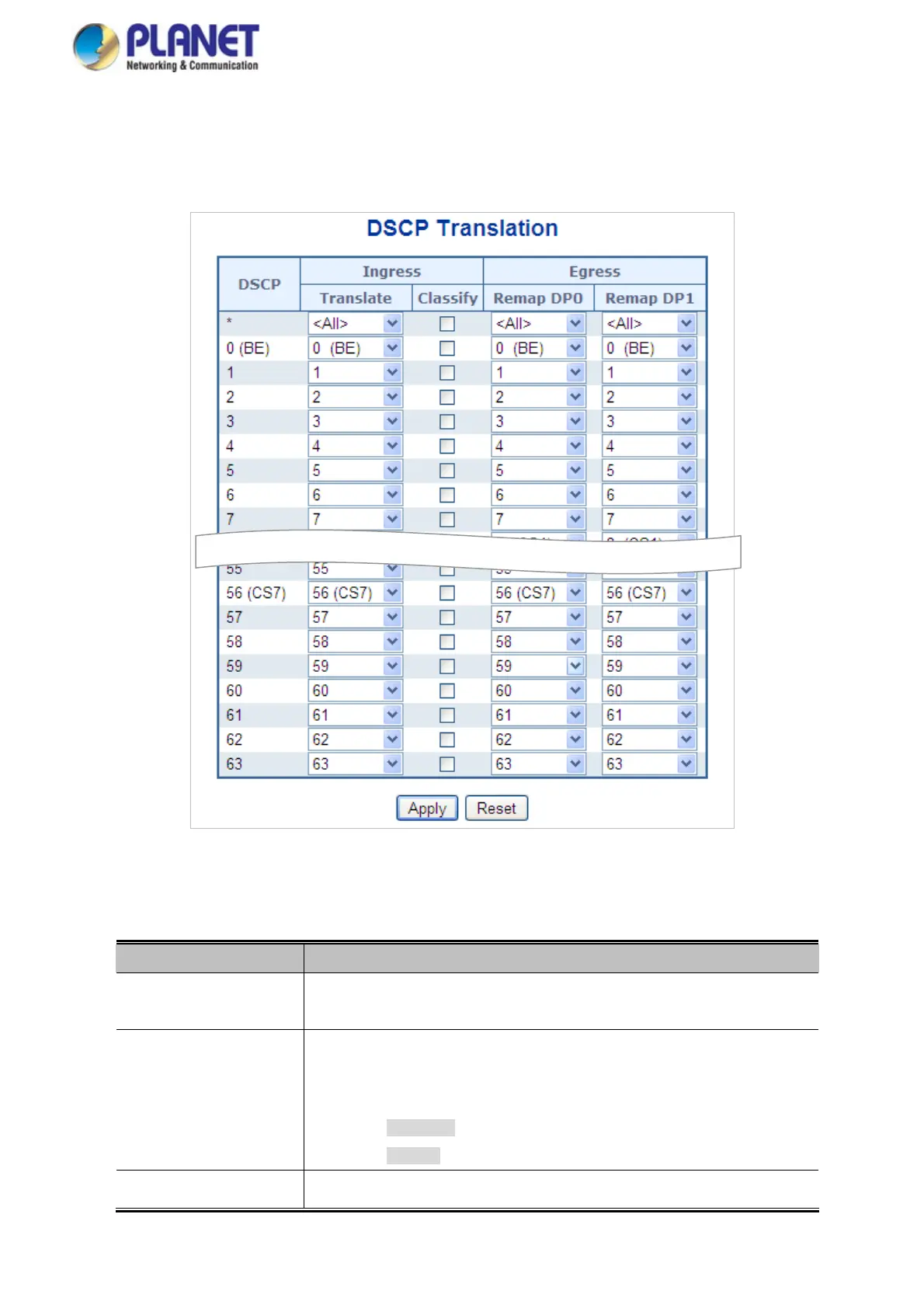

Figure 4-9-10: DSCP Translation Page Screenshot
The Page includes the following fields:
Object Description
Maximum number of supp
orted DSCP values are 64 and valid DSCP value
ranges from 0 to 63.
 DSCP
 Ingress
Ingress side DSCP can be first translated to new DSCP before using the DSCP
for QoS class and DPL map.
There are two configuration parameters for DSCP Translation –
■ Translate
■ Classify
 Translate
DSCP at Ingress side can be translated to any of (0-63) DSCP values.
