4.12.2 Access Management
Configure access management table on this Page. The maximum entry number is 16. If the application's type matches any one
of the access management entries, it will allow access to the switch. The Access Management Configuration screen in Figure
4-12-2 appears.

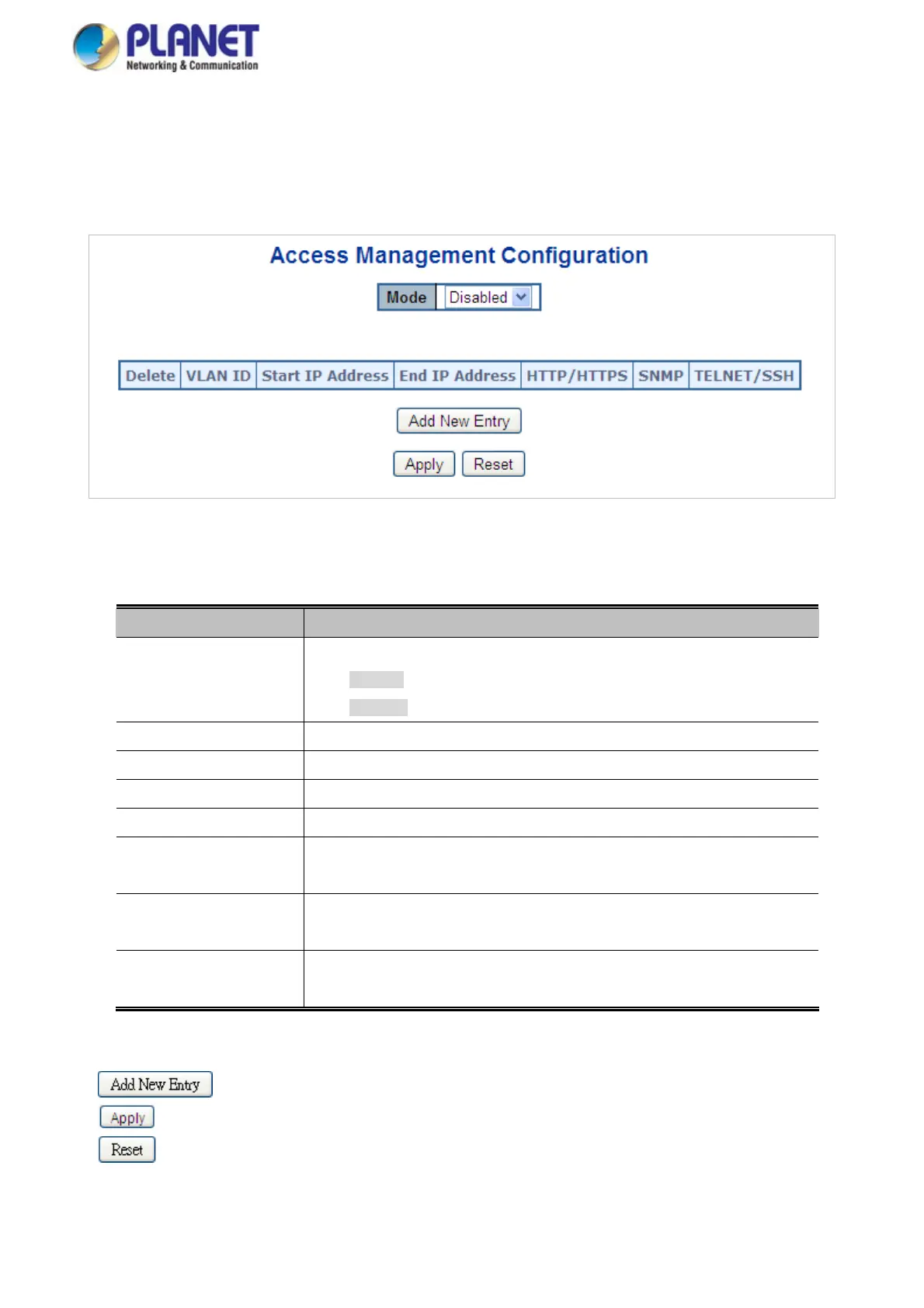

Figure 4-12-2: Access Management Configuration Overview Page Screenshot
The Page includes the following fields:
Object Description
 Mode
Indicates the access management mode operation. Possible modes are:
 Enabled: Enable access management mode operation.
 Disabled: Disable access management mode operation.
Check to delete
the entry. It will be deleted during the next apply .
 Delete
Indicates the VLAN ID for the access manag
ement entry.
 VLAN ID
Indicates the start IP
address for the access management entry.
 Start IP address
Indicates the end IP
address for the access management entry.
 End IP address
Indicates the host can access the sw
itch from HTTP/HTTPS interface that the
host IP address matched the entry.
 HTTP/HTTPS
Indicates the host can access the sw
itch from SNMP interface that the host IP
address matched the entry.
 SNMP
Indicates the host can access the sw
itch from TELNET/SSH interface that the
host IP address matched the entry.
 TELNET/SSH
Buttons
: Click to add a new access management entry.
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
282

Planet IGS-20040MT Specifications

General

Switch type	Managed
Switch layer	L2+
Traffic classification	Yes
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4095
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Stackable	-
Certification	FCC, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Fiber ethernet cabling technology	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput	29.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Number of IP interfaces	8
Power consumption (max)	17 W
Power consumption (typical)	8 W
Heat dissipation	27 BTU/h
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	IPv4 / IPv6
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered	255
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1043 g
