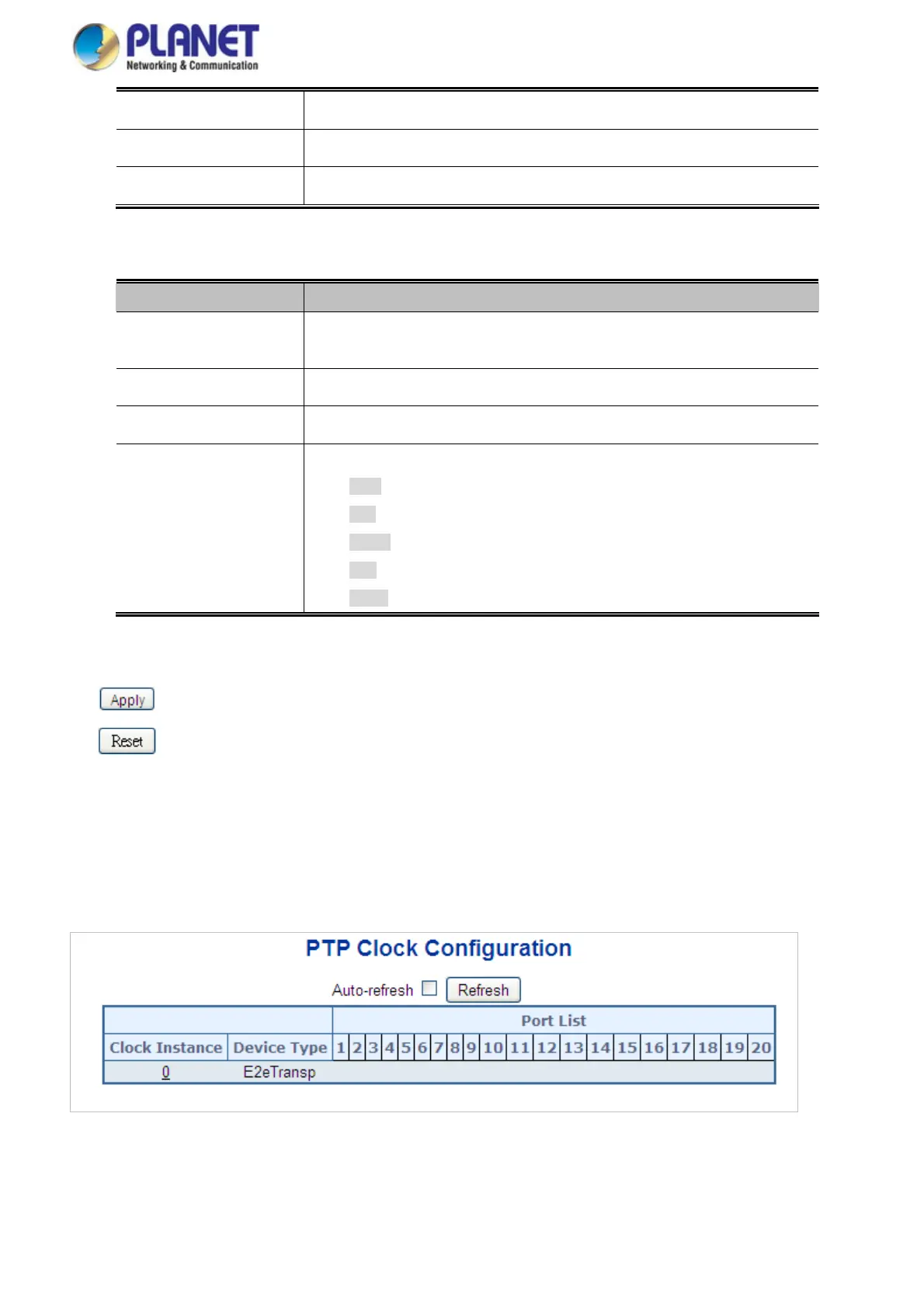

User’s Manual of IGS-20040MT
343
[1..1000] see above
‘P’ constant
[1..1000] see above
‘I’
constant
[1..1000] see above
‘D’ constant
Unicast Slave Configuration
Object Description
The number of second
s a master is requested to send Announce/Sync
messages. The request is repeated from the slave each Duration/4 seconds.
Duration
IPv4 Address of the Master clock
Ip-address
grant
The granted repetition period for the sync message
Comm State
The state of the communication with the master, possible values are:
IDLE : The entry is not in use.
INIT : Announce is sent to the master (Waiting for a response).
CONN : The master has responded.
SELL : The assigned master is selected as current master.
SYNC : The master is sending Sync messages.
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
4.18.2 PTP Status
This Page provides a status overview for PTP status. The PTP Status screen in Figure 4-18-2 appears.
Figure 4-18-1: PTP Status Page Screenshot

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Planet IGS-20040MT and is the answer not in the manual?

Planet IGS-20040MT Specifications

General IconGeneral
Switch typeManaged
Switch layerL2+
Traffic classificationYes
Console portRJ-45
Fiber optic connectorMiniGBIC
SFP module slots quantity4
Installed SFP modules quantity0
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity16
10G supportNo
Number of VLANs4095
Networking standardsIEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN featuresStacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Stackable-
CertificationFCC, CE
Product colorBlue, White
Housing materialAluminum
International Protection (IP) codeIP30
Fiber ethernet cabling technology100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput29.7 Mpps
Jumbo frames9216
MAC address table8000 entries
Number of IP interfaces8
Power consumption (max)17 W
Power consumption (typical)8 W
Heat dissipation27 BTU/h
Storage temperature (T-T)-40 - 85 °C
Operating temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)5 - 95 %
Supported network protocolsIPv4 / IPv6
AuthenticationMAC-based authentication, Port-based authentication
Security algorithms802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered255
Harmonized System (HS) code85176990
Weight and Dimensions IconWeight and Dimensions
Depth107.3 mm
Width76.8 mm
Height152 mm
Weight1043 g
