User’s Manual of IGS-20040MT
4.17.5 RMON History Configuration
Configure RMON History table on this Page. The entry index key is ID; screen in Figure 4-17-5 appears.

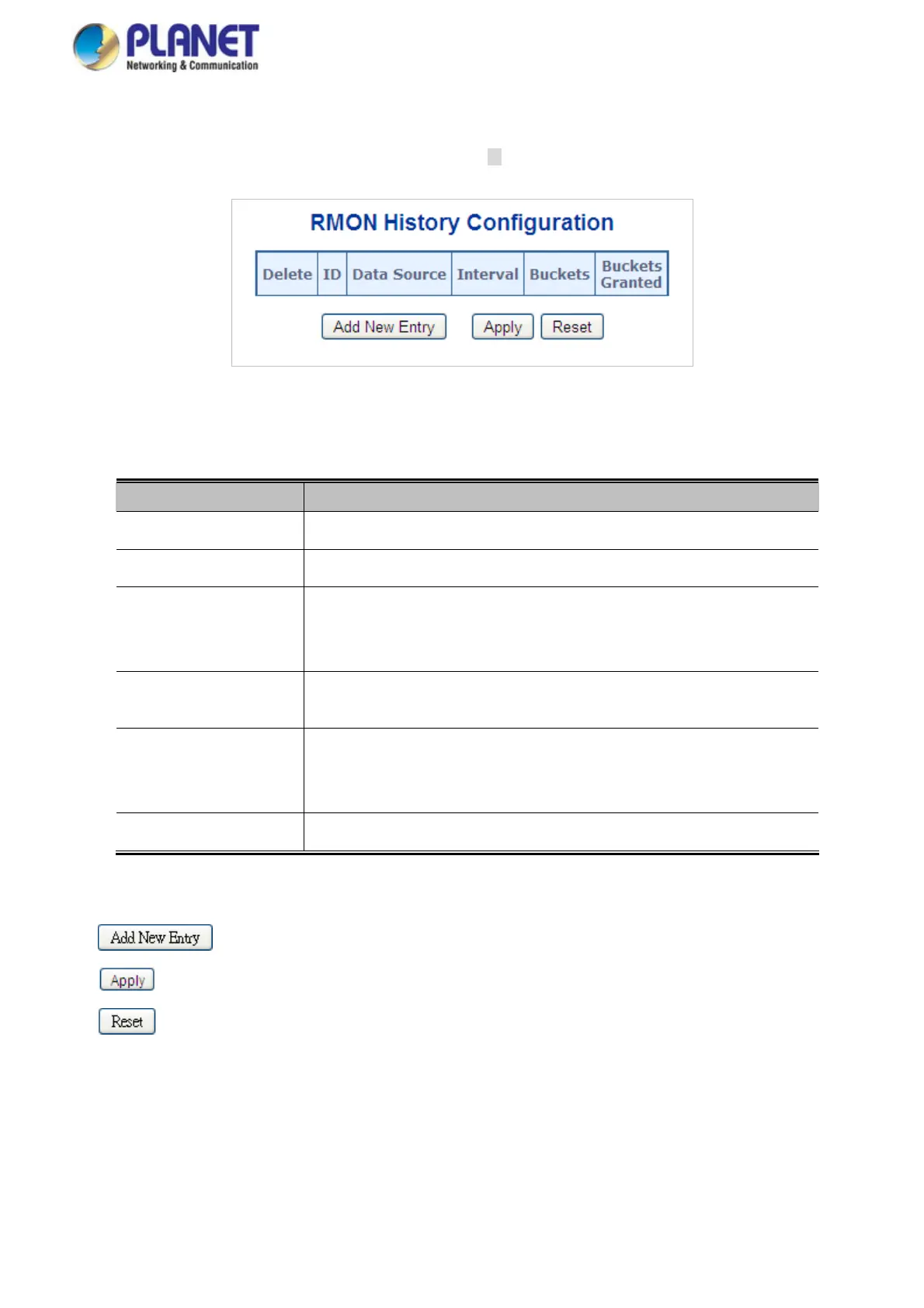

Figure 4-17-5: RMON History Configuration Page Screenshot
The Page includes the following fields:
Object Description
Check to delete
the entry. It will be deleted during the next save.
Delete
Indicates the inde
x of the entry. The range is from 1 to 65535.
ID
Data Source
Indicates the port ID which wants to be monitored. If in stacking switch, the value
must add 1000*(switch ID-1), for example, if the port is switch 3 port 5, the value
is 2005.
Interval
Indicates the interval in seconds for sampling the history statistics data.
The range is from 1 to 3600, default value is 1800 seconds.
Buckets
Indicates the maximum data entries associated this History control entry stored in
RMON.
The range is from 1 to 3600, default value is 50.
The number of data sha
ll be saved in the RMON.
Buckets Granted
Buttons
: Click to add a new community entry.
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
334
