User’s Manual of IGS-20040MT
 Proxy Enable
Enable MLD Proxy. This feature can be used to avoid forwarding unnecessary
join and leave messages to the router side.
 Router Port
Specify which ports act as router ports. A router port is a port on the Ethernet
switch that leads towards the Layer 3 multicast device or MLD querier.
If an aggregation member port is selected as a router port, the whole aggregation
will act as a router port. The allowed selection is Auto, Fix, Fone, default
compatibility value is Auto.
Enable the fast leave o
n the port.
 Fast Leave
Enable to limit the numb
er of multicast groups to which a switch port can belong.
 Throtting
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

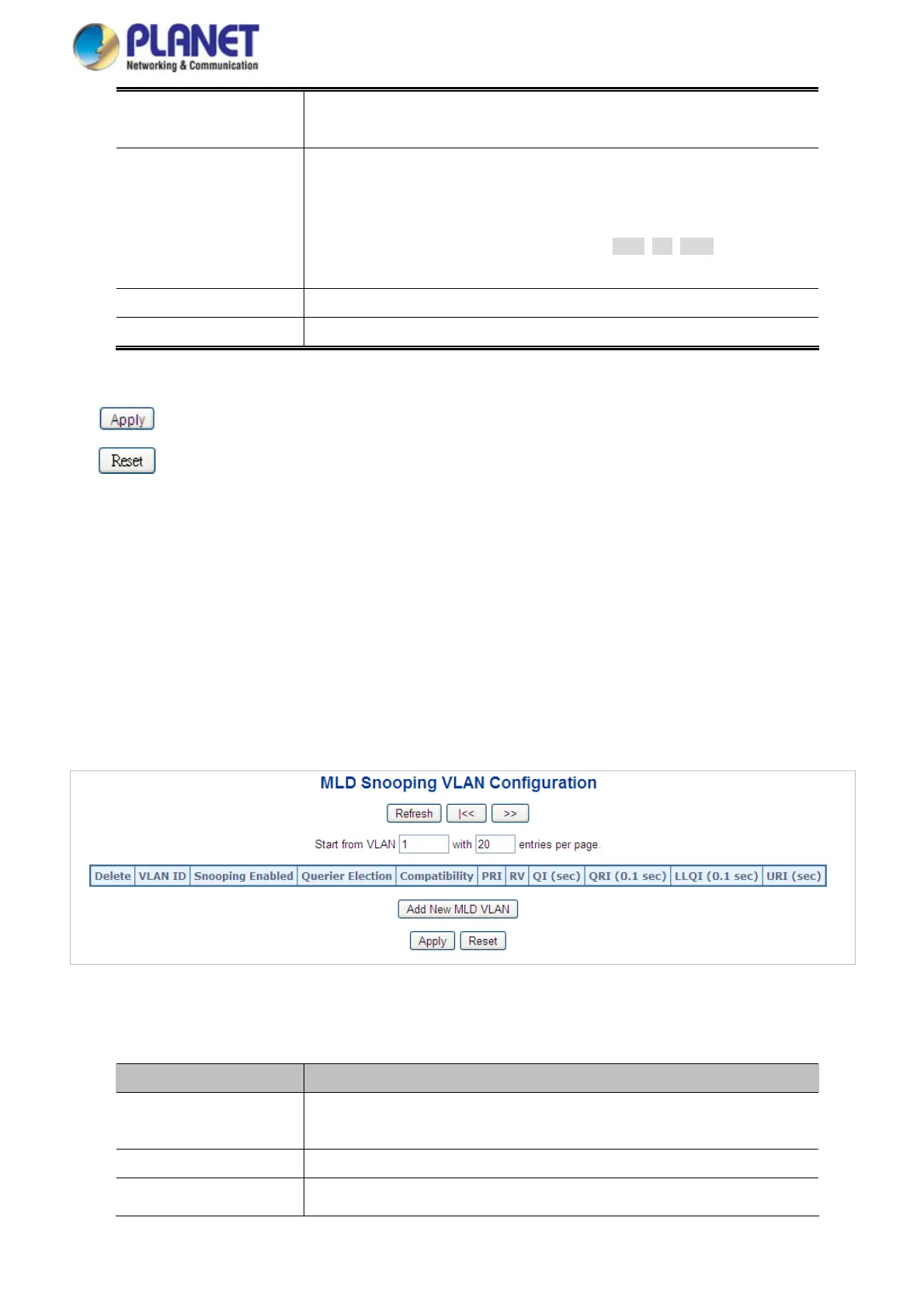

4.8.11 MLD Snooping VLAN Configuration
Each Page shows up to 99 entries from the VLAN table, default being 20, selected through the "entries per Page" input field.
When first visited, the web Page will show the first 20 entries from the beginning of the VLAN Table. The first displayed will be
the one with the lowest VLAN ID found in the VLAN Table.
The "VLAN" input fields allow the user to select the starting point in the VLAN Table. The MLD Snooping VLAN Configuration
screen in Figure 4-8-14 appears.
Figure 4-8-14: IGMP Snooping VLAN Configuration Page Screenshot
The Page includes the following fields:
Object Description
Check to delete
the entry. The designated entry will be deleted during the next
save.
 Delete
The VLAN ID of the entry.
 VL
AN ID
 MLD Snooping Enable
Enable the per-VLAN MLD Snooping. Up to 32 VLANs can be selected for MLD
179

Planet IGS-20040MT Specifications

General

Switch type	Managed
Switch layer	L2+
Traffic classification	Yes
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4095
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Stackable	-
Certification	FCC, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Fiber ethernet cabling technology	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput	29.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Number of IP interfaces	8
Power consumption (max)	17 W
Power consumption (typical)	8 W
Heat dissipation	27 BTU/h
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	IPv4 / IPv6
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered	255
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1043 g
