User’s Manual of IGS-20040MT
4.16 Loop Protection
This chapter describes enabling loop protection function that provides loop protection to prevent broadcast loops in Industrial
Managed Switch.
4.16.1 Configuration
This Page allows the user to inspect the current Loop Protection configurations, and possibly change them as well; screen in
Figure 4-17-1 appears.

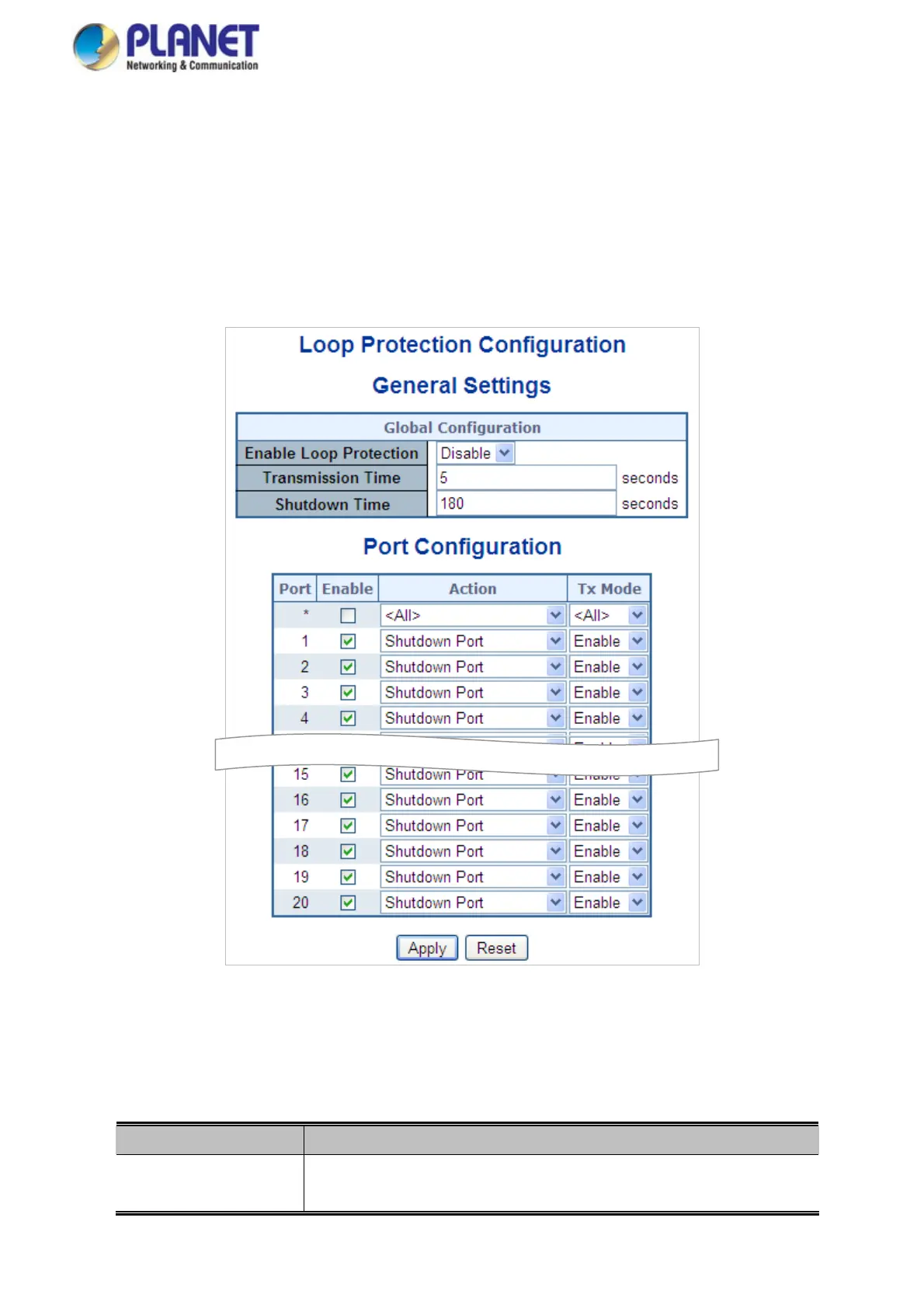

Figure 4-17-1: Loop Protection Configuration Page Screenshot
The Page includes the following fields:
General Settings
Object Description
Controls w
hether loop protections is enabled (as a whole).
Enable Loop
Protection
326
