User’s Manual of IGS-20040MT

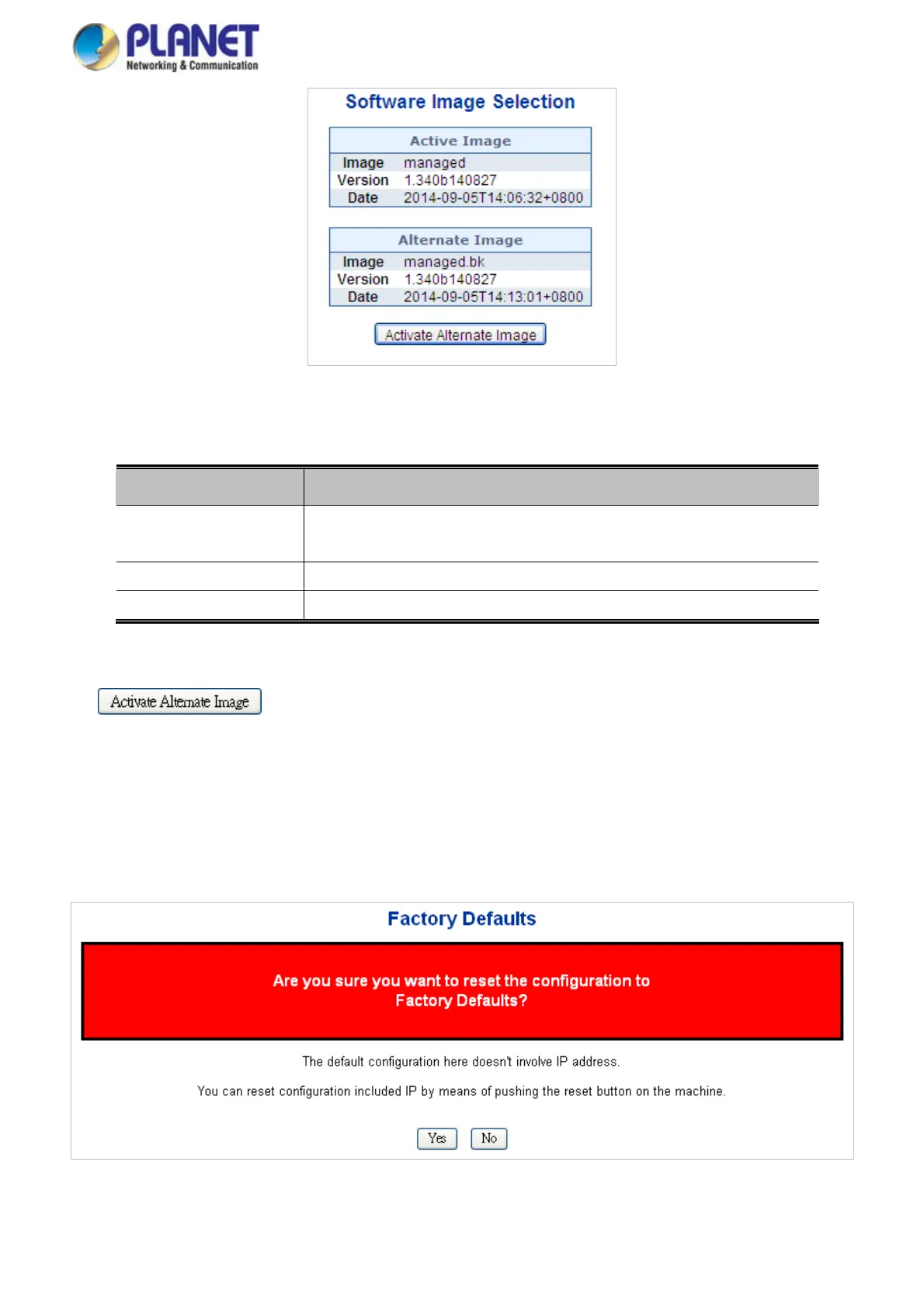

Figure 4-2-30: Software Image Selection Page Screenshot
The Page includes the following fields:
Object Description
The flash index name of the firm
ware image. The name of primary (preferred)
image is image, the alternate image is named image.bk.
The version of the firmw
are image.
Version
The date w
here the firmware was produced.
Date
Buttons
: Click to use the alternate image. This button may be disabled depending on system state.
4.2.26 Factory Default
You can reset the configuration of the Industrial Managed Switch on this Page. Only the IP configuration is retained. The new
configuration is available immediately, which means that no restart is necessary. The Factory Default screen in Figure 4-2-31
appears.
Figure 4-2-31: Factory Default Page Screenshot
83
