4.13.2 MAC Address Table Status
Dynamic MAC Table
Entries in the MAC Table are shown on this Page. The MAC Table contains up to 8192 entries, and is sorted first by VLAN ID,
then by MAC address. The MAC Address Table screen in Figure 4-13-2 appears.

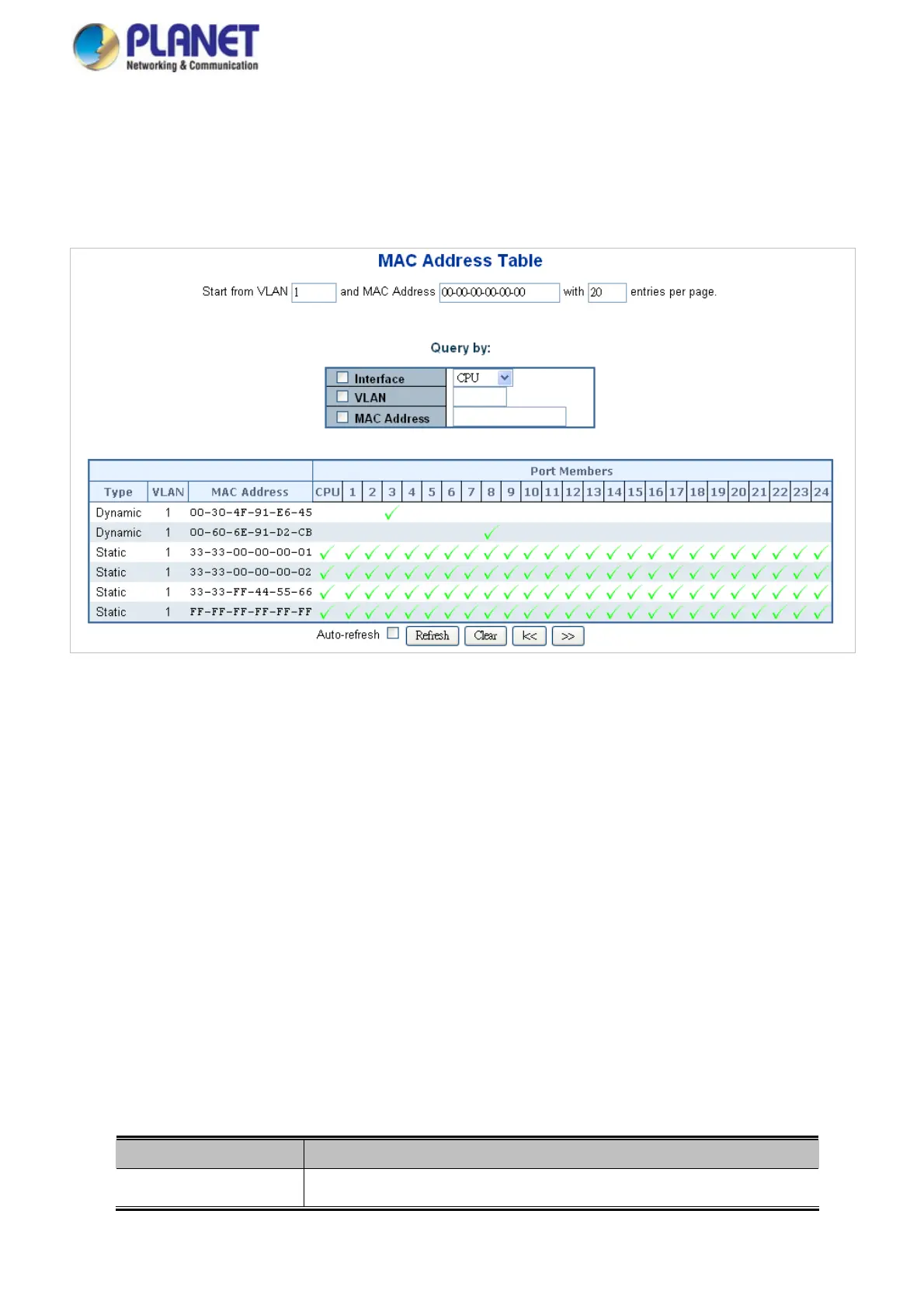

Figure 4-13-2: MAC Address Table Status Page Screenshot
Navigating the MAC Table
Each Page shows up to 999 entries from the MAC table, default being 20, selected through the "entries per Page" input
field. When first visited, the web Page will show the first 20 entries from the beginning of the MAC Table. The first displayed
will be the one with the lowest VLAN ID and the lowest MAC address found in the MAC Table.
The "Start from MAC address" and "VLAN" input fields allow the user to select the starting point in the MAC Table.
Clicking the “Refresh” button will update the displayed table starting from that or the closest next MAC Table match.
In addition, the two input fields will - upon a “Refresh” button click - assume the value of the first displayed entry, allowing
for continuous refresh with the same start address.
The “>>” will use the last entry of the currently displayed VLAN/MAC address pairs as a basis for the next lookup. When the
end is reached the text "no more entries" is shown in the displayed table. Use the “|<<” button to start over.
The Page includes the following fields:
Object Description
 Type
Indicates whether the entry is a static or dynamic entry.
301

Planet IGS-20040MT Specifications

General

Switch type	Managed
Switch layer	L2+
Traffic classification	Yes
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4095
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Stackable	-
Certification	FCC, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Fiber ethernet cabling technology	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput	29.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Number of IP interfaces	8
Power consumption (max)	17 W
Power consumption (typical)	8 W
Heat dissipation	27 BTU/h
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	IPv4 / IPv6
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered	255
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1043 g
