4.17.8 RMON Statistics Status
This Page provides an overview of RMON Statistics entries. Each Page shows up to 99 entries from the Statistics table, default
being 20, selected through the "entries per Page" input field. When first visited, the web Page will show the first 20 entries from
the beginning of the Statistics table. The first displayed will be the one with the lowest ID found in the Statistics table; screen in
Figure 4-17-8 appears.

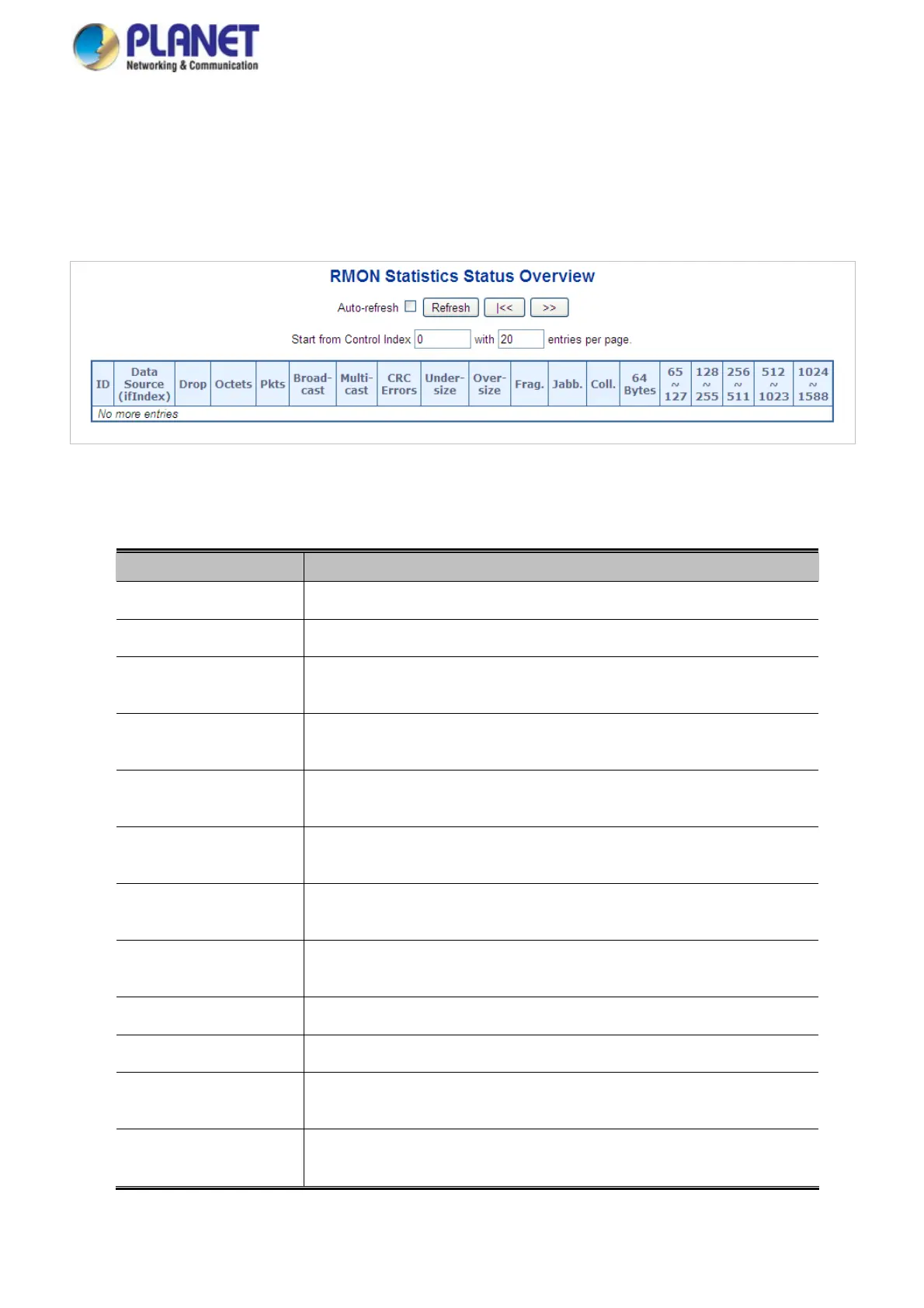

Figure 4-17-8: RMON Statistics Status Overview Page Screenshot
The Page includes the following fields:
Object Description
Indicates the inde
x of Statistics entry.
 ID
 Data Source (ifIndex)
The port ID which wants to be monitored.
The tota
l number of events in which packets were dropped by the probe due to
lack of resources.
 Drop
The tota
l number of octets of data (including those in bad packets) received on
the network.
 Octets
The tota
l number of packets (including bad packets, broadcast packets, and
multicast packets) received.
 Pkts
The tota
l number of good packets received that were directed to the broadcast
address.
 Broadcast
The tota
l number of good packets received that were directed to a multicast
address.
 Multicast
The tota
l number of packets received that had a length (excluding framing bits,
but including FCS octets) of between 64 and 1518 octets.
 CRC Errors
The tota
l number of packets received that were less than 64 octets.
 Undersize
The tota
l number of packets received that were longer than 1518 octets.
 Oversize
The number of frames w
hich size is less than 64 octets received with invalid
CRC.
 Frag.
 Jabb.
The number of frames which size is larger than 64 octets received with invalid
CRC.
