User’s Manual of IGS-20040MT
Buttons
: Click to add new IPMC profile. Specify the name and configure the new entry. Click "Save”.
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
4.8.3 Address Entry
This page provides address range settings used in IPMC profile. The address entry is used to specify the address
range that will be associated with
IPMC Profile. It is allowed to create a maximum of 128 address entries in the
system.
The Profile Table screen in Figure 4-8-6 appears.

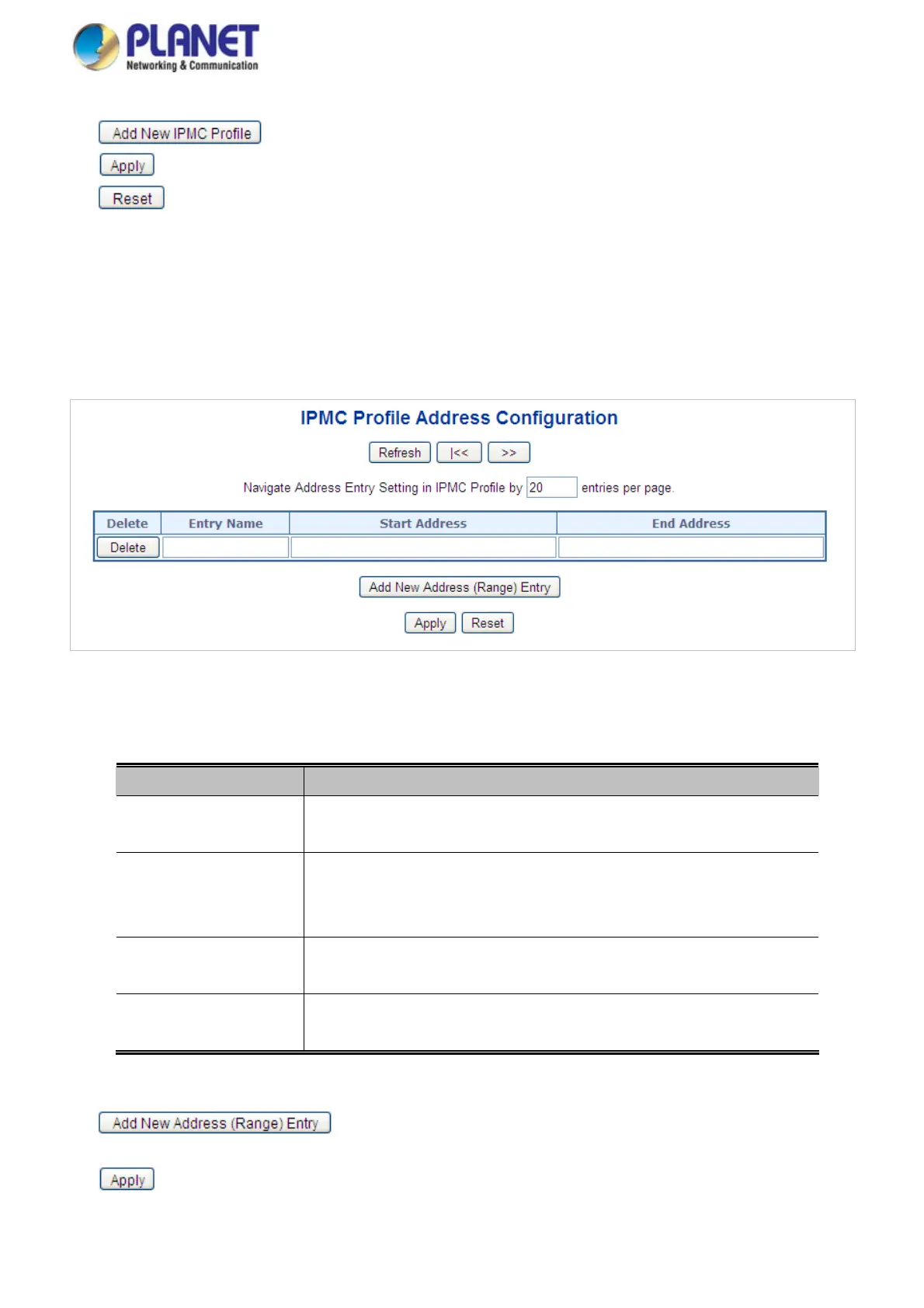

Figure 4-8-6: IPMC Profile Address Configuration Page
The Page includes the following fields:
Object Description
Check to delete
the entry.
The designated entry will be deleted during the next save.
 Delete
The name used
for indexing the address entry table.
Each entry has the unique name which is composed of at maximum 16
alphabetic and numeric characters. At least one alphabet must be present.
 Entry Name
The starting IPv4/IPv6 Multica
st Group Address that will be used as an address
range.
 Start Address
The ending
IPv4/IPv6 Multicast Group Address that will be used as an address
range.
 End Address
Buttons
: Click to add new address range. Specify the name and configure the
addresses. Click "Save
”.
: Click to apply changes
168

Planet IGS-20040MT Specifications

General

Switch type	Managed
Switch layer	L2+
Traffic classification	Yes
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4095
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Stackable	-
Certification	FCC, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Fiber ethernet cabling technology	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput	29.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Number of IP interfaces	8
Power consumption (max)	17 W
Power consumption (typical)	8 W
Heat dissipation	27 BTU/h
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	IPv4 / IPv6
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered	255
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1043 g
