User’s Manual of IGS-20040MT
4.12.7 Port Security Detail
This Page shows the MAC addresses secured by the Port Security module. Port Security is a module with no direct
configuration. Configuration comes indirectly from other modules - the user modules. When a user module has enabled port
security on a port, the port is set-up for software-based learning. In this mode, frames from unknown MAC addresses are
passed on to the port security module, which in turn asks all user modules whether to allow this new MAC address to forward or
block it. For a MAC address to be set in the forwarding state, all enabled user modules must unanimously agree on allowing the
MAC address to forward. If only one chooses to block it, it will be blocked until that user module decides otherwise. The Port
Security Detail screen in Figure 4-12-7 appears.

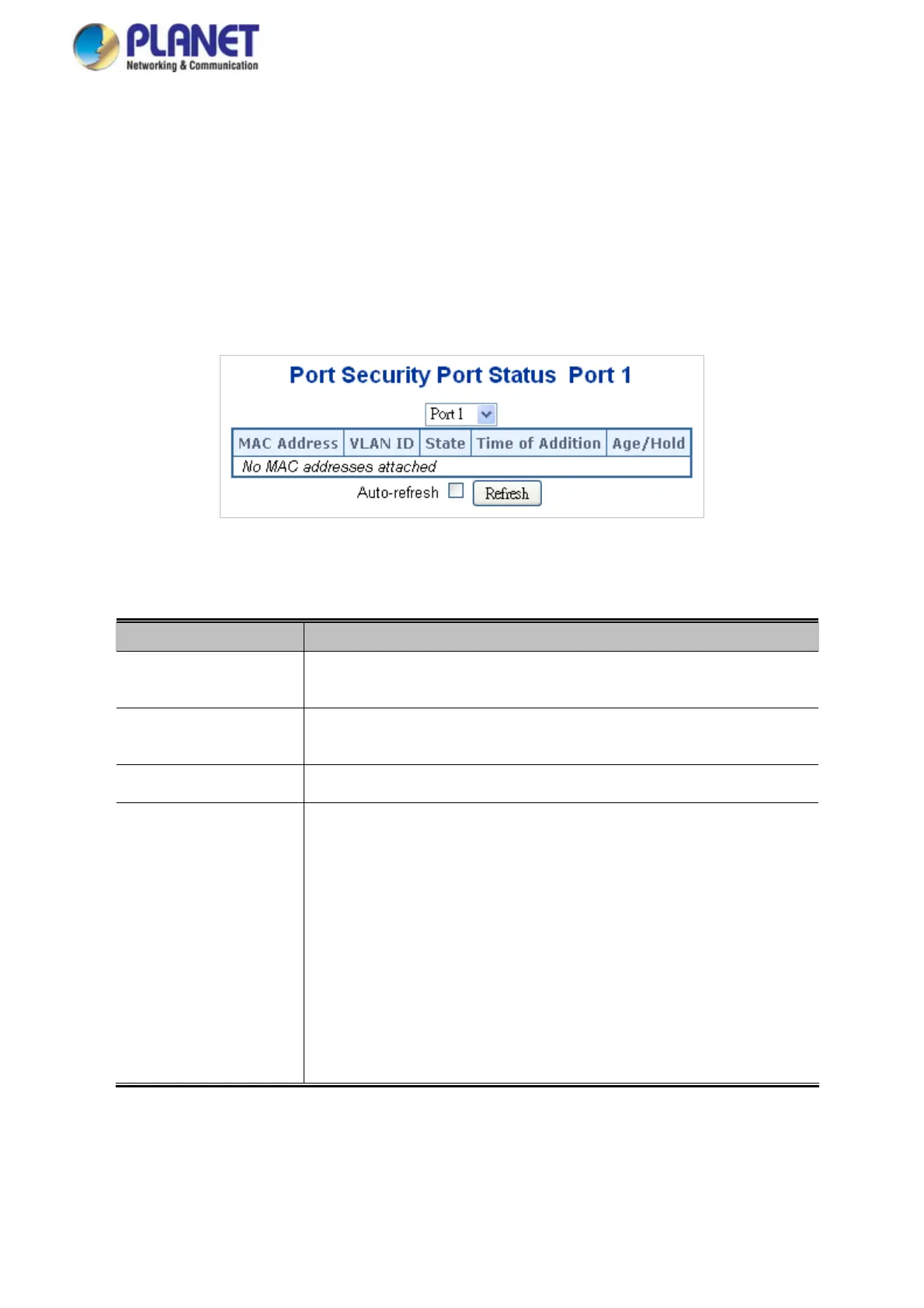

Figure 4-12-7: Port Security Detail Screen Page Screenshot
The Page includes the following fields:
Object Description
 MAC Address & VLAN
ID
The MAC address and VLAN ID that is seen on this port. If no MAC addresses
are learned, a single row stating "No MAC addresses attached" is displayed.
Indicates wh
ether the corresponding MAC address is blocked or forwarding. In
the blocked state, it will not be allowed to transmit or receive traffic.
 State
 Time of Addition
Shows the date and time when this MAC address was first seen on the port.
 Age/Hold
 If at least one user module has decided to block this MAC address, it will
stay in the blocked state until the hold time (measured in seconds) expires.
 If all user modules have decided to allow this MAC address to forward, and
aging is enabled, the Port Security module will periodically check that this
MAC address still forwards traffic.
 If the age period (measured in seconds) expires and no frames have been
seen, the MAC address will be removed from the MAC table. Otherwise a
new age period will begin.
 If aging is disabled or a user module has decided to hold the MAC address
indefinitely, a dash (-) will be shown.
288

Planet IGS-20040MT Specifications

General

Switch type	Managed
Switch layer	L2+
Traffic classification	Yes
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4095
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Stackable	-
Certification	FCC, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Fiber ethernet cabling technology	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput	29.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Number of IP interfaces	8
Power consumption (max)	17 W
Power consumption (typical)	8 W
Heat dissipation	27 BTU/h
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	IPv4 / IPv6
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered	255
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1043 g
