User’s Manual of IGS-20040MT
4.8.19 MVR SFM Information
Entries in the MVR SFM Information Table are shown on this Page. The MVR SFM (Source-Filtered Multicast) Information
Table also contains the SSM (Source-Specific Multicast) information. This table is sorted first by VLAN ID, then by group, and
then by Port. Different source addresses belong to the same group are treated as single entry.
Each Page shows up to 99 entries from the MVR SFM Information Table, default being 20, selected through the "entries per
Page" input field. When first visited, the web Page will show the first 20 entries from the beginning of the MVR SFM Information
Table.
The "Start from VLAN", and "Group Address" input fields allow the user to select the starting point in the MVR SFM Information
Table. The MVR SFM Information screen in Figure 4-8-22 appears.

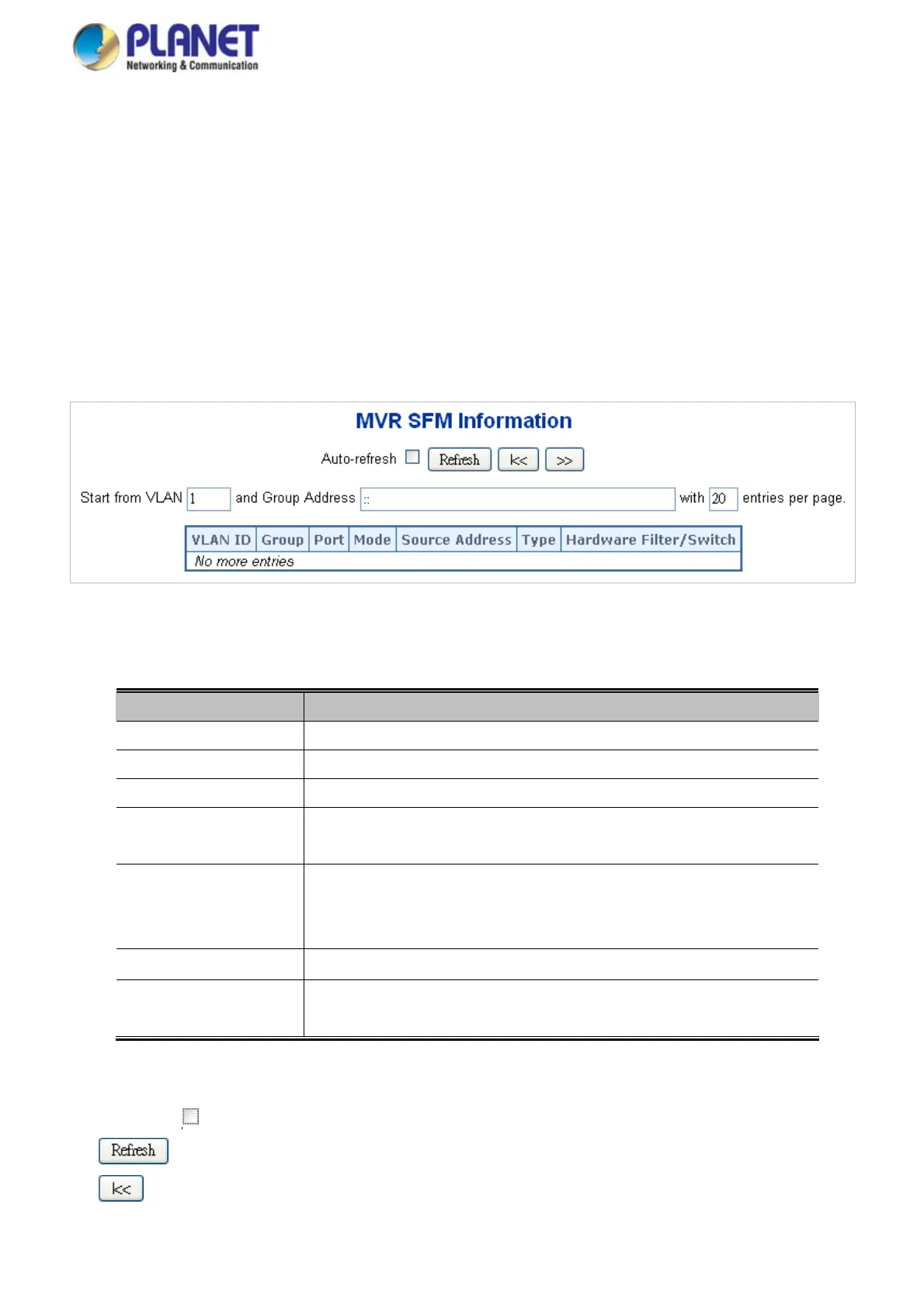

Figure 4-8-22: MVR SFM Information Page Screenshot
The Page includes the following fields:
Object Description
VLAN ID of the group.
 VLAN ID
Group address of the group d
isplayed.
 Group
Switc
h port number.
 Port
Indicates the filt
ering mode maintained per (VLAN ID, port number, Group
Address) basis. It can be either Include or Exclude.
 Mode
IP Address of the sourc
e. Currently, system limits the total number of IP source
addresses for filtering to be 128. When there is no any source filtering address,
the text "None" is shown in the Source Address field.
 Source Address
Indicates the T
ype. It can be either Allow or Deny.
 Type
Indicates wh
ether data plane destined to the specific group address from the
source IPv4/IPv6 address could be handled by chip or not.
 Hardware Filter /
Switch
Buttons
Auto-refresh : Automatic refresh occurs every 3 seconds.
: Refreshes the displayed table starting from the input fields.
: Updates the table starting from the first entry in the MVR SFM Information Table.
191

Planet IGS-20040MT Specifications

General

Switch type	Managed
Switch layer	L2+
Traffic classification	Yes
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4095
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Stackable	-
Certification	FCC, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Fiber ethernet cabling technology	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput	29.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Number of IP interfaces	8
Power consumption (max)	17 W
Power consumption (typical)	8 W
Heat dissipation	27 BTU/h
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	IPv4 / IPv6
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered	255
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1043 g
