User’s Manual of IGS-20040MT
4.10.4 ACL Ports Configuration
Configure the ACL parameters (ACE) of each switch port. These parameters will affect frames received on a port unless the
frame matches a specific ACE. The ACL Ports Configuration screen in Figure 4-10-4 appears.

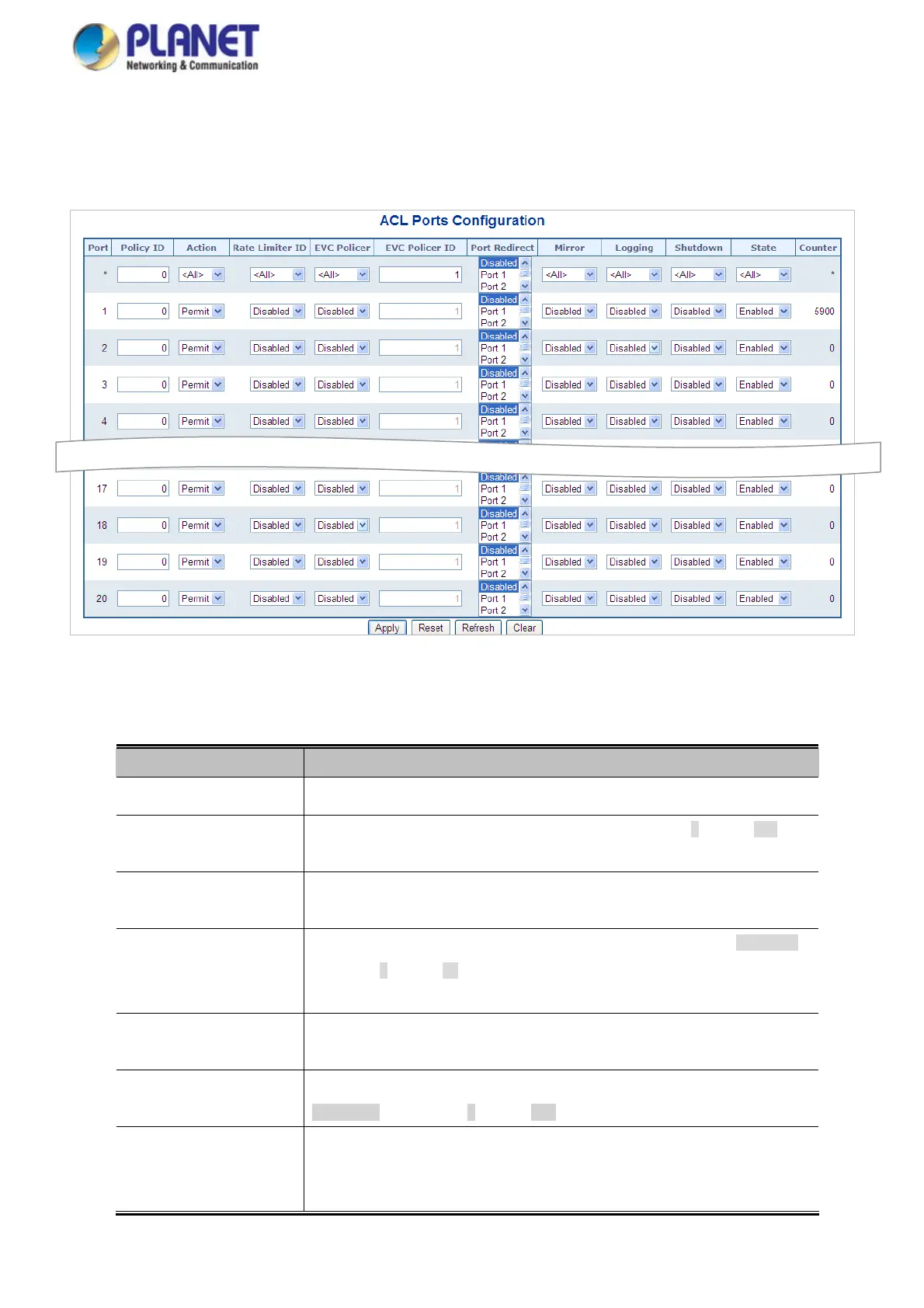

Figure 4-10-4: ACL Ports Configuration Page Screenshot
The Page includes the following fields:
Object Description
The logical po
rt for the settings contained in the same row.
Port
Policy ID
Select the policy to apply to this port. The allowed values are 0 through 255.
The default value is 0.
Action
Select whether forwarding is permitted ("Permit") or denied ("Deny").
The default value is "Permit".
Rate Limiter ID
Select which rate limiter to apply on this port. The allowed values are Disabled or
the values 1 through 16.
The default value is "Disabled".
Select wh
ether EVC policer is enabled or disabled. The default value is
"Disabled". Note that ACL rate limiter and EVC policer can not both be enabled.
EVC Policer
Select wh
ich EVC policer ID to apply on this port. The allowed values are
Disabled or the values 1 through 256.
EVC Policer ID
Port Redirect
Select which port frames are redirected on. The allowed values are Disabled or a
specific port number and it can't be set when action is permitted. The default
value is "Disabled".
232
