User’s Manual of IGS-20040MT
2.3.1 Installing the SFP Transceiver
The sections describe how to insert an SFP transceiver into an SFP slot. The SFP transceivers are hot-pluggable and
hot-swappable. You can plug-in and out the transceiver to/from any SFP port without having to power down the Industrial
Managed Switch as the Figure 2-9 appears.

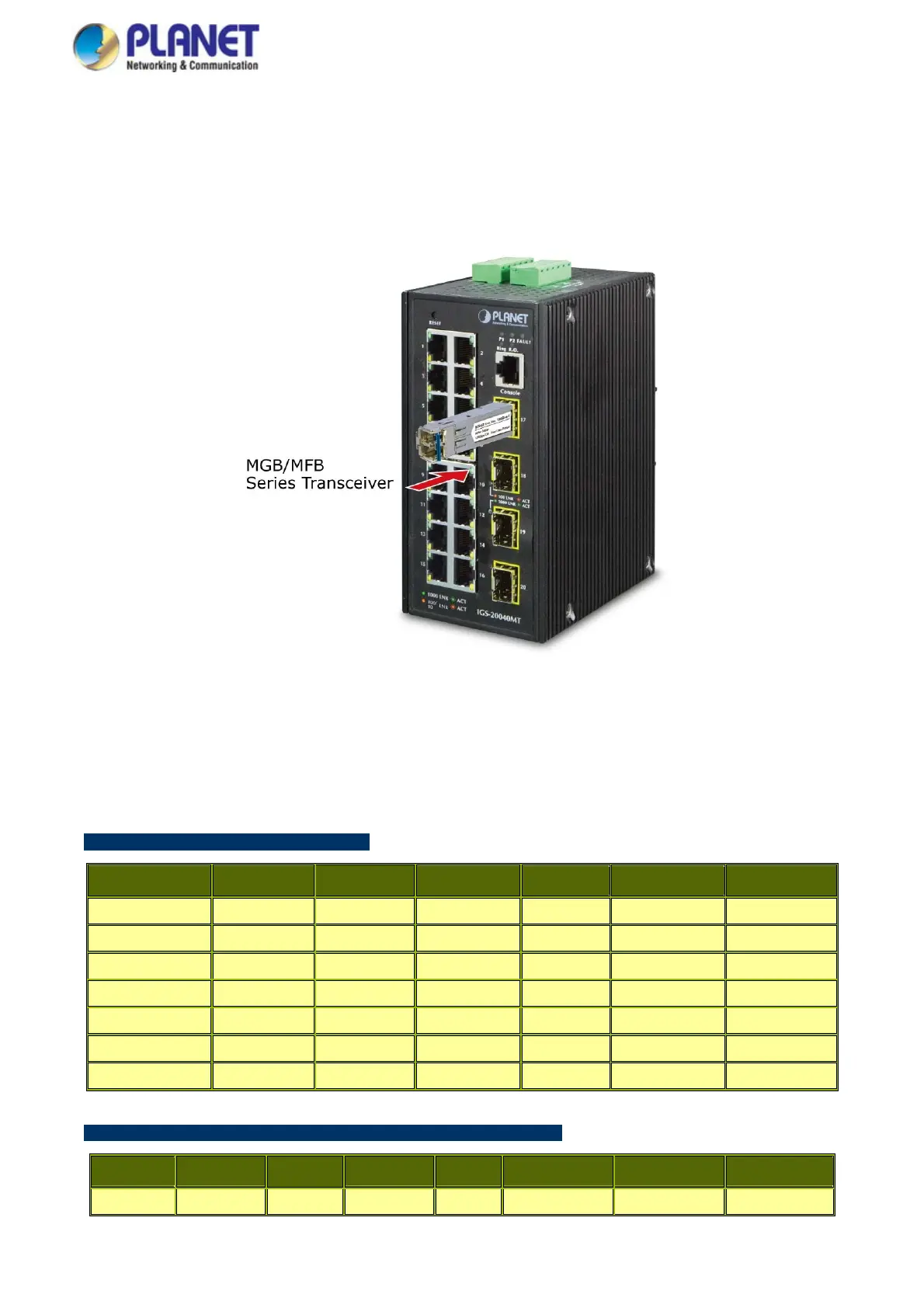

Figure 2-9: Plug-in the SFP Transceiver
 Approved PLANET SFP Transceivers
PLANET Industrial Managed Switch supports 100/1000 dual mode with both single mode and multi-mode SFP
transceiver. The following list of approved PLANET SFP transceivers is correct at the time of publication:
Fast Ethernet Transceiver (100Base-X SFP)
Model Speed (Mbps)
Connector
Interface
Fiber Mode Distance Wavelength (nm) Operating Temp.
MFB-FX 100 LC Multi Mode 2km 1310nm 0 ~ 60 ℃
MFB-F20 100 LC Single Mode 20km 1310nm 0 ~ 60 ℃
MFB-F40 100 LC Single Mode 40km 1310nm 0 ~ 60 ℃
MFB-F60 100 LC Single Mode 60km 1310nm 0 ~ 60 ℃
MFB-F120 100 LC Single Mode 120km 1550nm 0 ~ 60 ℃
MFB-TFX 100 LC Multi Mode 2km 1310nm -40 ~ 75 ℃
MFB-TF20 100 LC Single Mode 20km 1550nm -40 ~ 75 ℃
Fast Ethernet Transceiver (100Base-BX, Single Fiber Bi-Directional SFP)
Model Speed (Mbps)
Connector
Interface
Fiber Mode Distance Wavelength (TX) Wavelength (RX) Operating Temp.
MFB-FA20 100 WDM(LC) Single Mode 20km 1310nm 1550nm 0 ~ 60 ℃
35

Planet IGS-20040MT Specifications

General

Switch type	Managed
Switch layer	L2+
Traffic classification	Yes
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4095
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Stackable	-
Certification	FCC, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Fiber ethernet cabling technology	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput	29.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Number of IP interfaces	8
Power consumption (max)	17 W
Power consumption (typical)	8 W
Heat dissipation	27 BTU/h
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	IPv4 / IPv6
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered	255
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1043 g
