User’s Manual of IGS-20040MT
4.11.4 Network Access Overview
This Page provides an overview of the current NAS port states for the selected switch. The Network Access Overview screen in
Figure 4-11-5 appears.

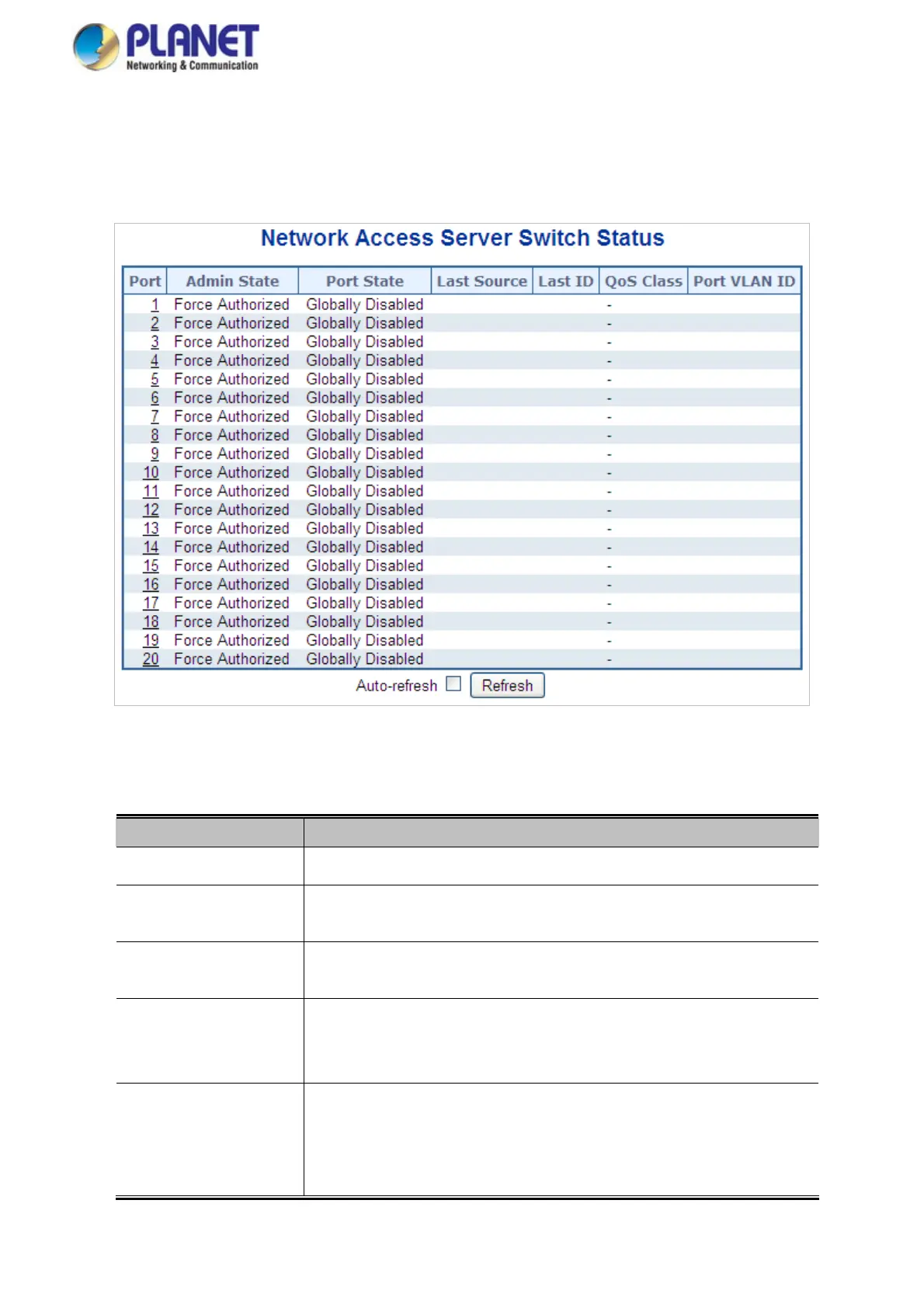

Figure 4-11-5: Network Access Server Switch Status Page Screenshot
The Page includes the following fields:
Object Description
The sw
itch port number. Click to navigate to detailed NAS statistics for this port.
Port
The port's current admi
nistrative state. Refer to NAS Admin State for a
description of p
ossible values.
Admin State
The current state of the port. Refer to NAS Port S
tate for a description of the
individ
ual states.
Port State
The source MAC address carri
ed in the most recently received EAPOL frame for
EAPOL-based authentication, and the most recently received frame from a new
client for MAC-based authentication.
Last Source
Last ID
The user name (supplicant identity) carried in the most recently received
Response Identity EAPOL frame for EAPOL-based authentication, and the
source MAC address from the most recently received frame from a new client for
MAC-based authentication.
251
